– X-Axis Travel: 14.7″
– Y-Axis Travel: 10.23″
– Z-Axis Travel: 9.84″
– Spindle Speed: 300-30,000 RPM
– Spindle Taper: 7/24 S20T
– Chip-to-chip time of 1.35 seconds
– Maximum weight on table: 200 kg, 440 lbs (uniformed load)
– Maximum tool size (W x L): 60 mm x 130 mm
– Tool Magazine Capacity: 14+1 ATC
– Spindle Motor: 12 HP
Equipped With:
– Helical Interpolation
– Tool Breakage Detection
– Rigid Tapping
– Tool setter
– Spindle retention force gauge
– Renishaw Probe with 3mm stylus and extra stylus
– Comes with Qty. 12 – ER16 and Qty. 2 – ER20 holders

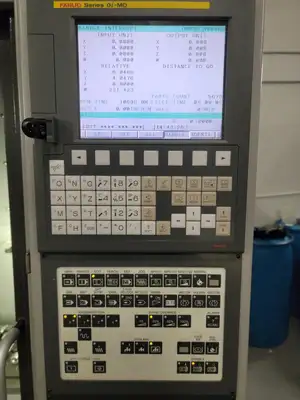

– Control: Fanuc OiMD
