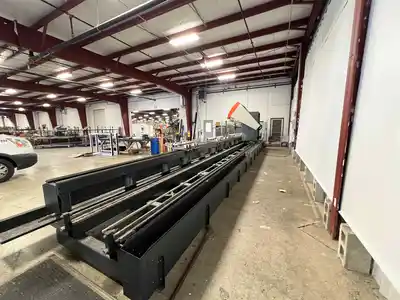

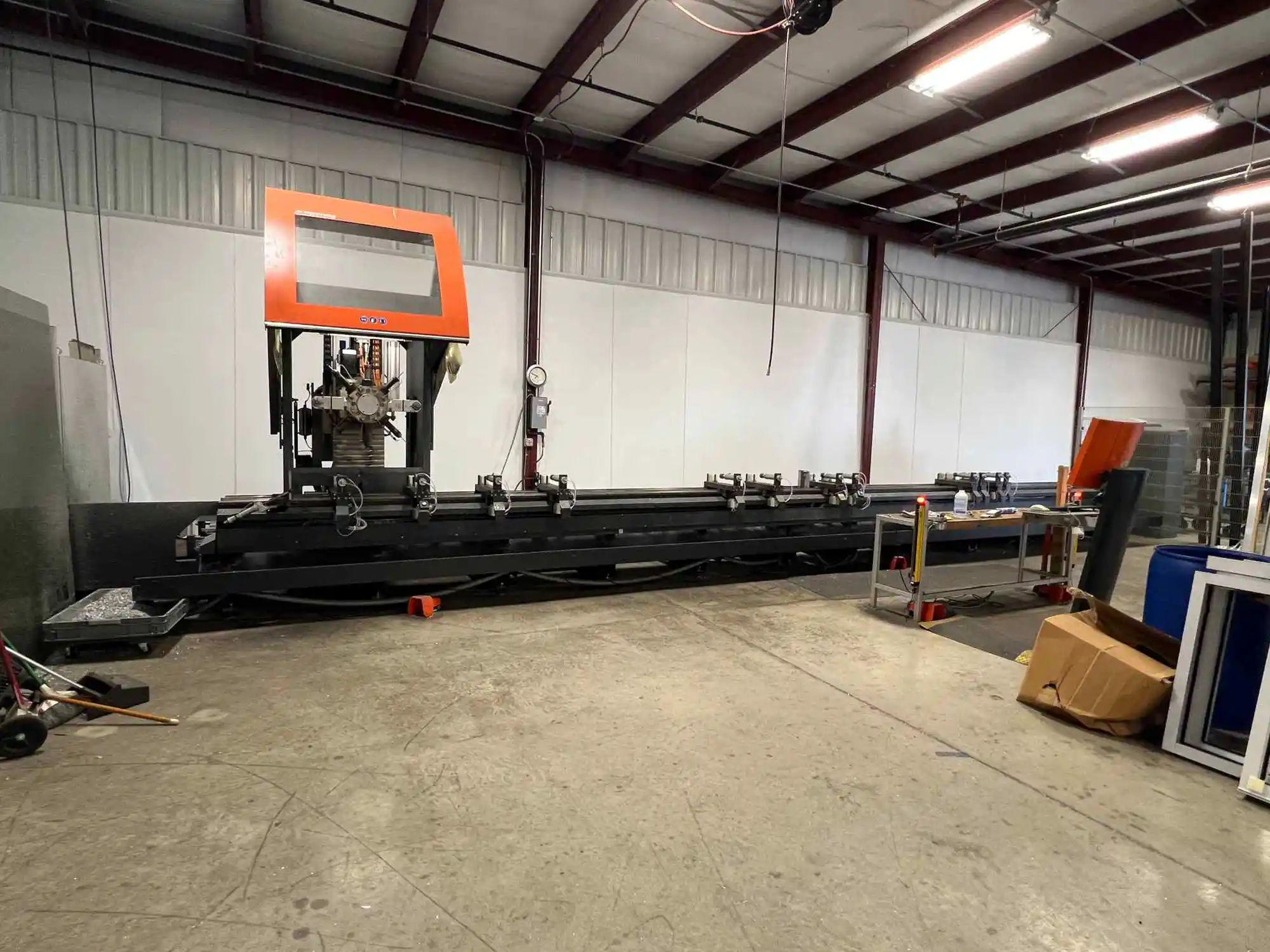

USED 2013 ELUMATEC SBZ 130

3-axis profile machining centre
Designed for economical and efficient machining of aluminium, steel and stainless steel profiles
All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the
profile surfaces

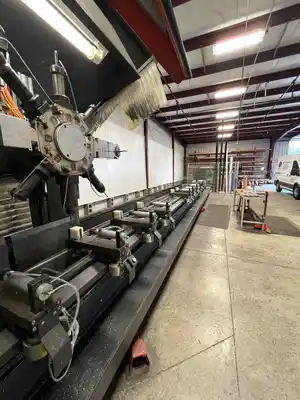

The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles
The turret head can be equipped with eight tools or four angle routing heads
Automatic clamp positioning enables the machine to position the material clamps
3-axis controller
The tool spindle is designed as an additional axis
Angle heads for lateral and profile end machining

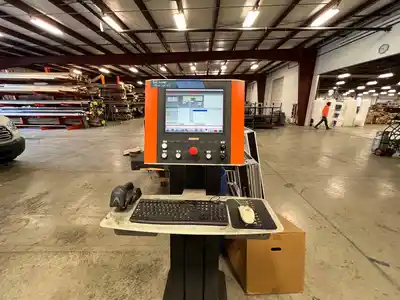

18.5″ panel PC, USB ports and network connection
Windows operating system
eluCam
Machining lengths
SBZ 130 – 10.2 m
Max. machining length with profile end machining, 10,080 mm
Max. machining length without profile end machining, 10,200 mm
