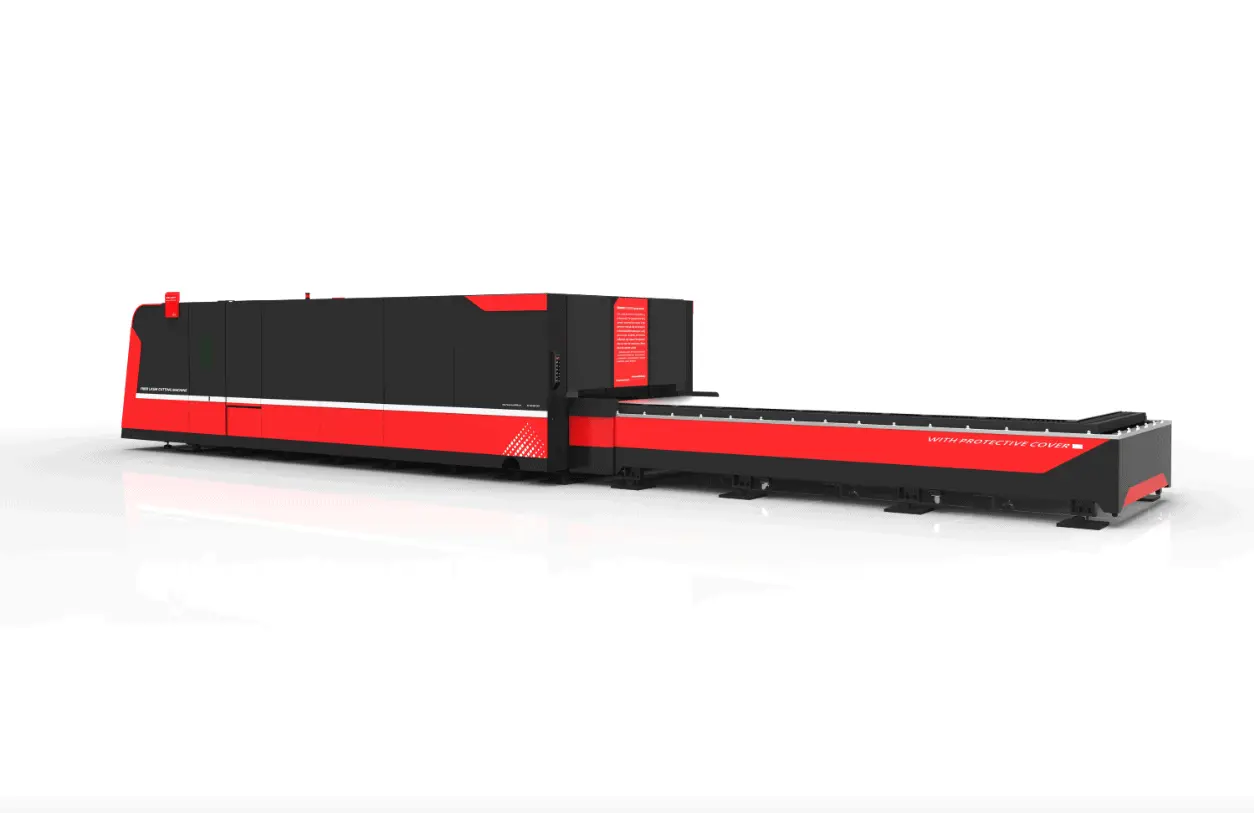

USED 2024 DNE D-SOAR 1530

Capacity: 6000 Watt

Wattage: 6000 (Configurations available up to 15k)
Table Size: 5′ x 10′: (Table size up to 8’x20′ available)
Range of adjustment (W): 600-6000
Wavelength: 43″
Steel (max. cutting thickness): .79″
Stainless Steel (max. cutting thickness): .63″
Aluminum (max. cutting thickness): .55″
Brass (max. cutting thickness): .31″
Copper (max. cutting thickness): .55″
Max. total electric consumption of system (with exhaust, chiller): 58 kW
Normal Sheet Size: 59″
Normal Sheet Size: 118″
Cutting Area (X): 61″
Cutting Area (Y): 120″
Cutting Area (Z) 11
Max. Positioning Speed Parallel Axis (X/Y): 262 ft./min
Max. Positioning Speed Simultaneous: 361 ft./min
Bilateral Repeatability of positioning of one axis R: 0.0008″
Average bilateral position deviation of one axis M: +/- 0.002″
Edge detection accuracy: +/- 0.02″
Max. workpiece weight: 2,205 lbs.
Machine weight (without chiller and dust extraction): 2,205 lbs.
Table change over time (2 level table) – unloaded: 17s
Table change over time (1 level table-hydraulics lifting)- unloaded: 50s
Length x Width x height: 336″ x 120″ x 102″
-Member of the high quality Swiss machine tool group , Bystronic
-Shuttle tables standard
-Inhouse cutting head, not third party.
-European components throughout
-UL & FDA Certified machines unlike many other imported machines.
-Quoted fully turnkey with install, software, training – all but shipping & rigging.
-Over 3000 D Soars installed in 100 countries
