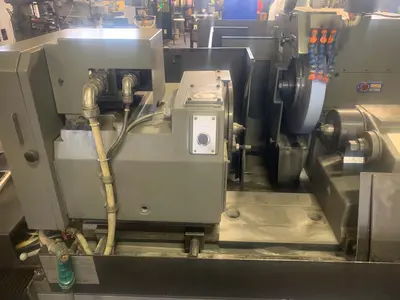

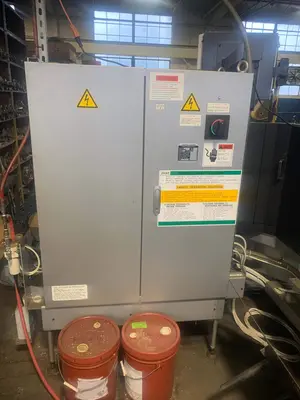

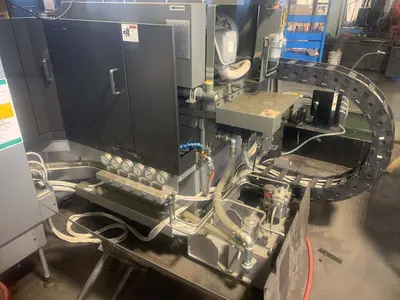

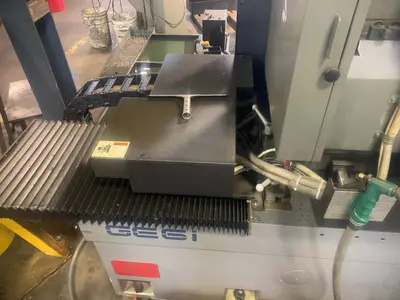

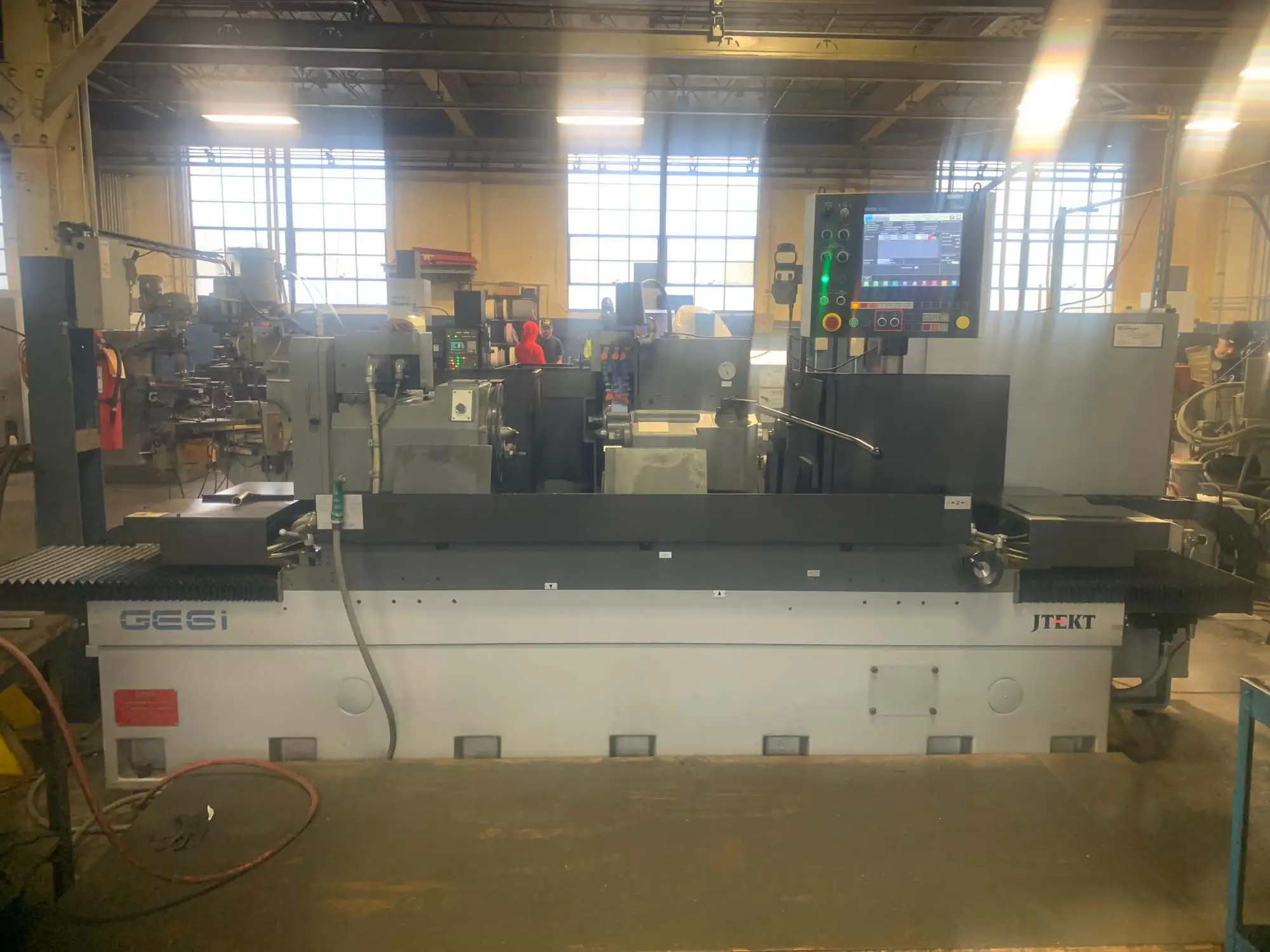

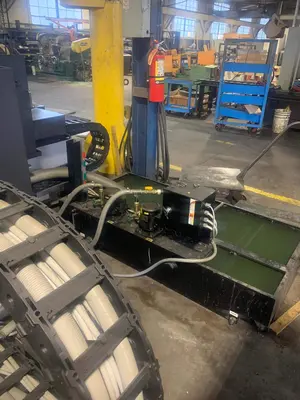

USED 2022 TOYODA GE6I-100

Machine Capacity:
– **Swing:** Ø 22.0″ (560 mm)
– **Distance Between Centers:** 39.4″ (1,000 mm)
– **Maximum Grinding Diameter:** Ø 21.6″ (550 mm)
– **Maximum Load Between Centers:** 1,100 lbs (500 kg)
– **Centerline Height from Floor:** 46.45” (1,180 mm)
– **Floor Space Required (approximate):** 197″ x 137″ (5,000 mm x 3,476 mm)
– **Net Weight:** 17,636 lbs (8,000 kg)
Wheelhead:
– **Wheel Size (OD x ID):** Ø 24″ x 10″ (610 mm x 254 mm)
– **Wheel Use Range:** Ø 24″ to 16.93″ (610 mm to 430 mm)*
– **Maximum Standard Wheel Width:** 2.95″ (75 mm)
– **Standard Wheel Surface Speed:** 6,500 SFPM (33 m/s)
– **Spindle:** TOYODA STAT® Bearing
– **Minimum Move Increment (on diameter):** 0.000010” (0.0001 mm)
– **Wheelhead Rapid Feed (on diameter):** 590 IPM (15 m/min)
– **Slide:** V and Flat Slide, 90° slide
Table:
– **Type**: Two (2) Piece Swiveling/Traversing
– **Table Swivel (CCW to CW)**: 4° to 0°
– **Table Stroke**: 48.6” (1,235 mm)
– **Slide**: V and Flat Slide
– **Minimum Move Increment**: 0.000010” (0.0001 mm)
– **Table Rapid Feed**: 511 IPM (13 m/min)
Workhead:
– **Type**: Dead Spindle
– **Workhead Center Taper**: MT #5
– **Work Speed (Variable)**: 7 to 140 rpm
Footstock:
– **Type**: Manual
– **Footstock Center**: MT #5
– **Maximum Center Retraction**: 1.25″ (32 mm) by lever, 1.18″ (30 mm) by manual position adjust wheel
Dresser:
– **Type**: Stationary Diamond Holder
– **Location**: Workhead Mount
Motors:
– **Wheel Drive Motor (4P)**: 15 hp (11 kW)
– **Work Drive Motor (Brushless AC Servomotor)**: 4.69 hp (3.5 kW)
– **Wheelhead Feed Drive Motor (Brushless AC Servomotor)**: 4.15 hp (3.1 kW)
– **Table Feed Drive Motor (Brushless AC Servomotor)**: 6.7 hp (5 kW)
– **Lubricant Pump Motor (4P)**: .27 hp (.2 kW)
– **Wheel Spindle Lubrication Motor (2P) Fan Cooler for Spindle Oil (4P)**: .67 hp (.5 kW), .1 hp (.08kW)
Power Requirement:
– 200Volt, 3-Phase, 60 Hz
Fluid Capacities:
– **Spindle Oil Lube Tank (Mobil Velocite #6)**: 3.7 gal (14 lt)
– **Lubrication Tank (Mobil Vacuoline 1409)**: 5.2 gal (20 lt)
– **Coolant Tank**: 92 gal (350 lt)
Equipped with:
-Dead Workhead
-Manual Footstock
-105 Gallon Coolant Tank
