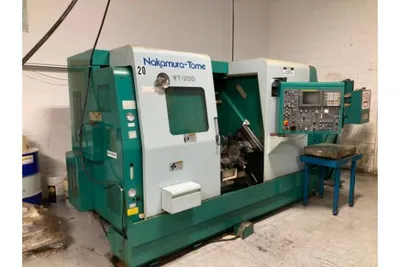

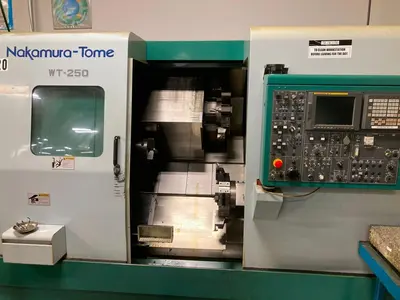

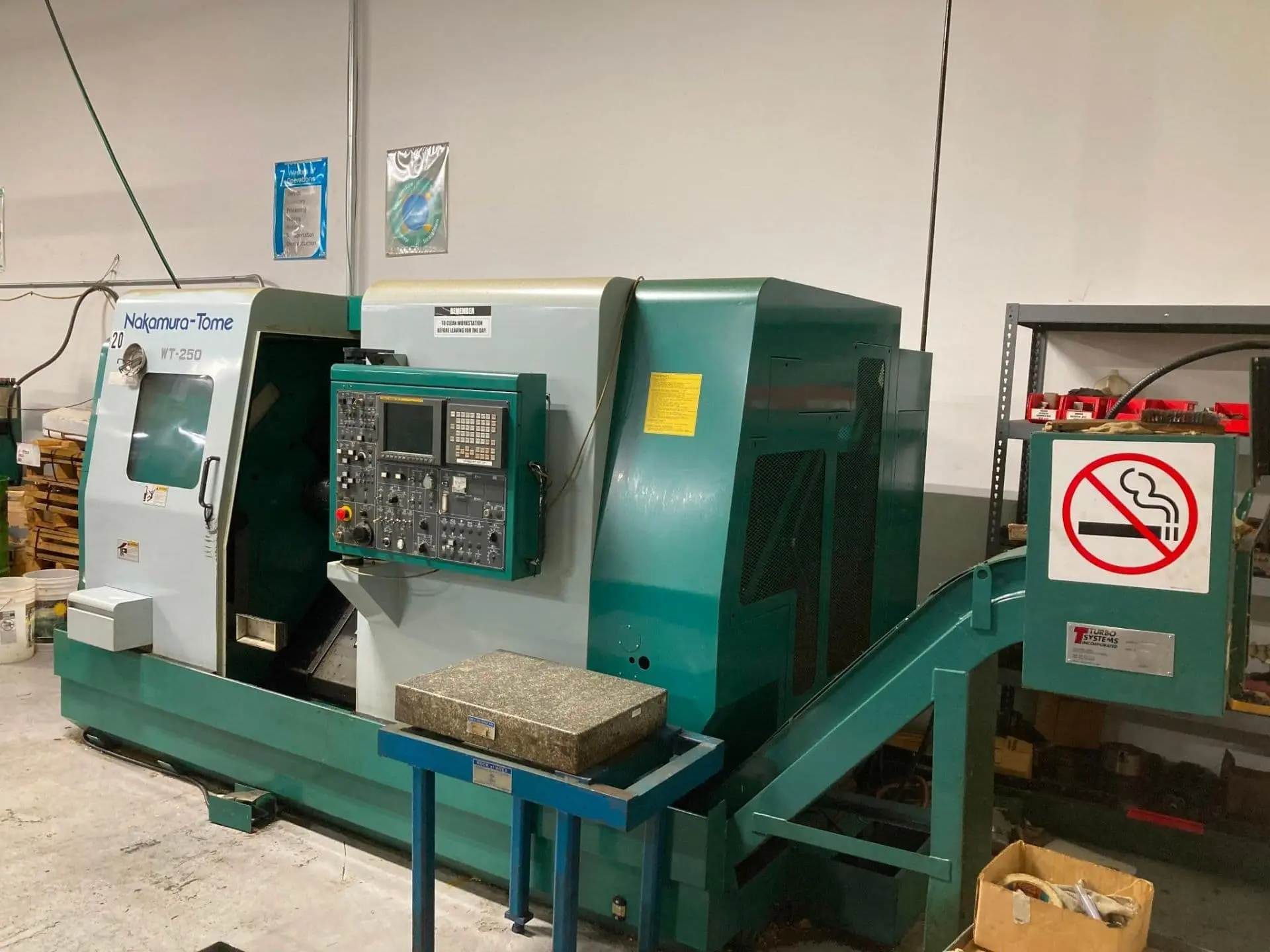

USED 2001 NAKAMURA TOME WT-250

Cutting time – 4,926 hours
Swing Over Bed 9.84”
Swing Over Carriage 9.84”
Max Turing Diameter 9.84”
St. Turning Diameter 3.94”
Max Turning Length 17.13”
Max Bar Size 2.01”
Spindle Motor 20 HP
Spindle Speed 4500 RPM
Spindle Nose A2-5 /
Hole Through Spindle 2.48”
Hole Through Draw Tube 2.05”
X-Axis Travel 7.68”
Z-Axis Travel 23.62”
Rapid Traverse X Axis 472 IPM
Rapid Traverse Z Axis 945 IPM

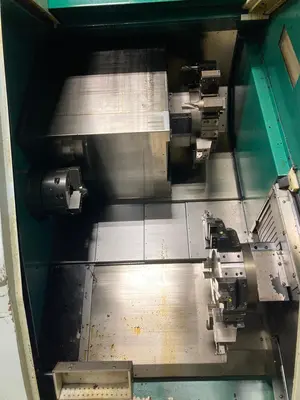

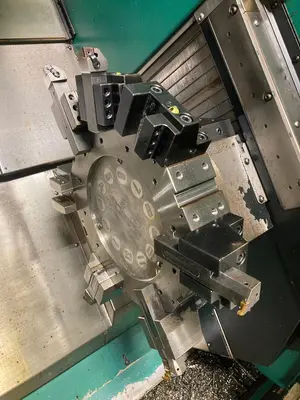

Turret (2) 12 Position Turrets
Machine Dimensions 136” x 76” x 80” (with Chip Conveyor)
Machine Weight 13,243 lbs
Equipped With (subject to buyer verification):

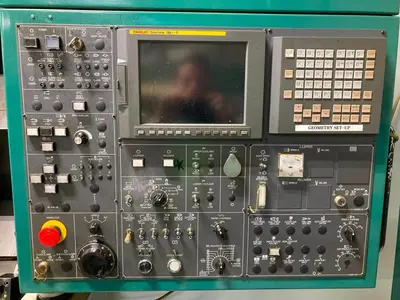

Fanuc Series 18i-T Control
(2) 12 Position Turrets
Nikko Nomura 8” 3-Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
NO Tailstock
