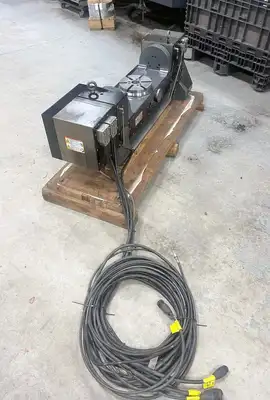

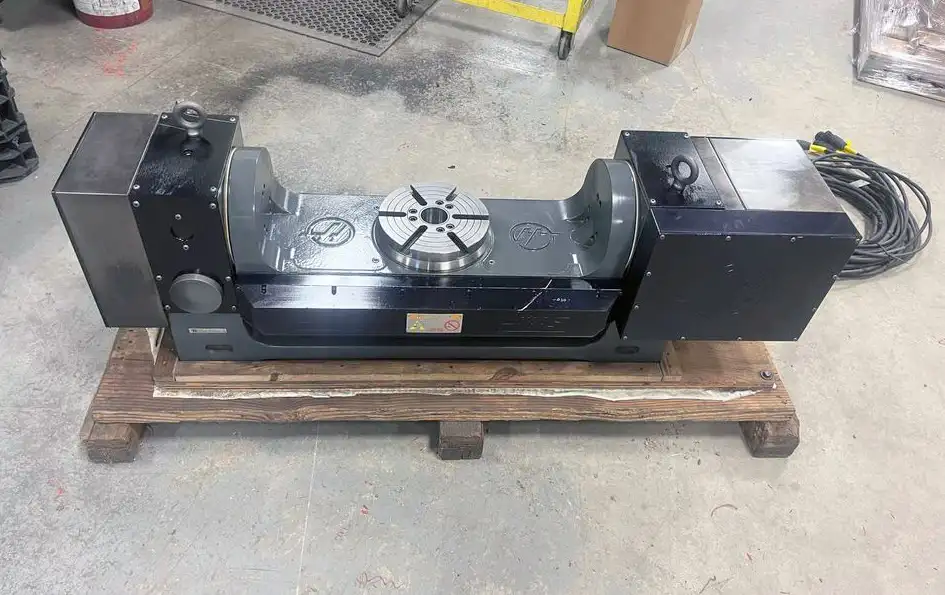

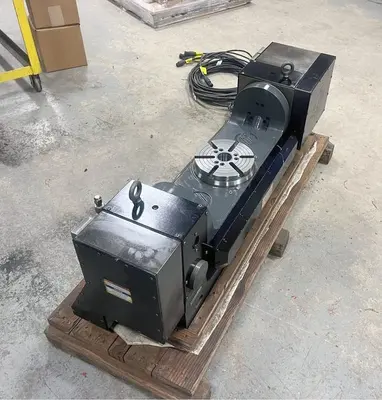

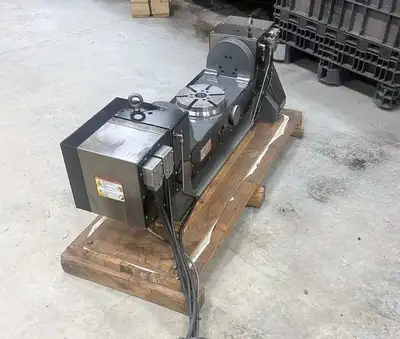

USED 2017 HAAS TR210

Platter Diameter: 8.30″
Max Weight On Platter: 200 LBS
Part Swing Max: 23.5″
Number of Std T-Slots: 6 @ 60°
Haas Version: P2
SPINDLE – A-Axis (TILT)
Max Speed: 60 °/sec
Max Torque: 300 FT-LBF
Backlash: 30 ARC-SEC
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 400 FT-LBF
SPINDLE – B-Axis (ROTARY)
Max Speed: 60 °/sec
Max Torque: 210 FT-LBF
Runout Max: 0.0005″
Backlash: 30 ARC-SEC
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 200 FT-LBF
INDEXING – A (TILT)
Max Rotation/Step: +-120°
Resolution: 0.001 °
Accuracy: 15 ARC-SEC
Repeatability: 10 ARC-SEC
INDEXING – B (ROTARY)
Max Rotation/Step: 999.999 °
Resolution: 0.001°
Repeatability: 10 ARC-SEC
Air Pressure Max: 150 PSI
Weight: 810 LBS
Dimensions: 58″ x 23″ x 27″ (Crate)
