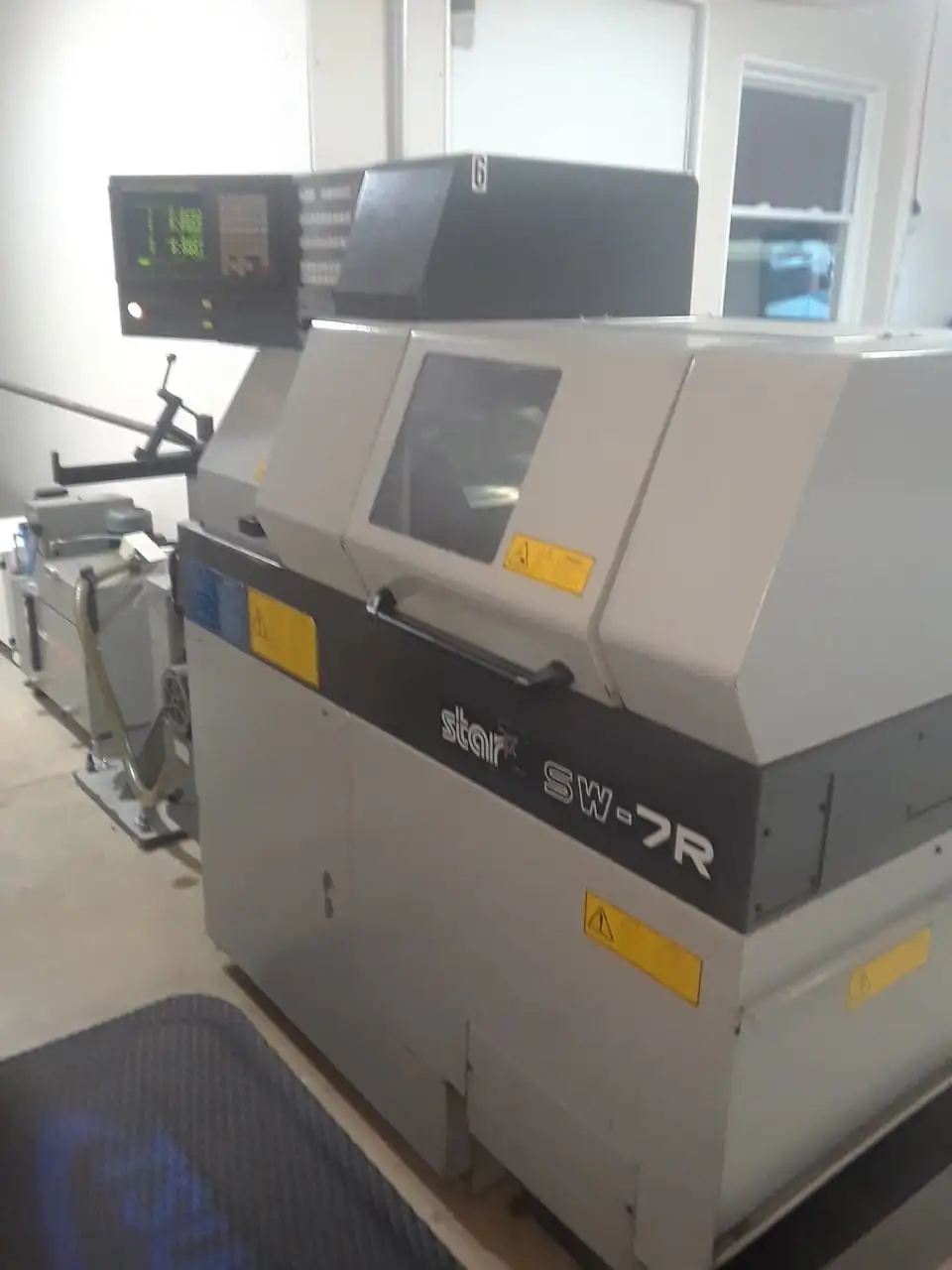

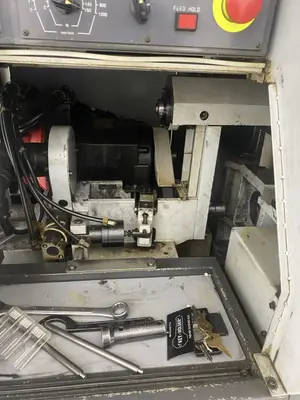

USED 2001 STAR SW-7R

Maximum Turning Diameter: 7 mm (0.27″)
Maximum Headstock Stroke: 70 mm (2.75″)
Maximum Drilling Capacity:
Stationary Tool: 4 mm (0.15″)
Power-Driven Attachment: 3 mm (0.11″)
Maximum Tapping Capacity:
Stationary Tool: M4 x P0.7
Power-Driven Attachment: M2.5 x P0.45
Maximum Milling Capacity: 6 mm (0.23″)
Maximum Die Cutting Capacity: M4 x P0.7
Maximum Slotting Capacity: 1.0mm x 2.0mm
Main Spindle:
Spindle Speed: 500 – 15,000 RPM
Minimum Indexing Angle: 0.01° (C- Axis Control)
Main Spindle Bore: 11mm (0.43″)
Tool Post Specs:
Type: Twin Gang Tool Post
Tool: 6
Power Driven Tools: 4
Sub Spindle Specs:
Maximum Chucking Diameter: 7mm (0.27″)
Maximum Part Length for Parts Ejection: 70 mm (2.75″)
Maximum Part Projection Length: 20mm (0.78″)
Spindle Speed: 500 – 10,000 RPM
Maximum Indexing Angle: 1 degree standard
4 Spindle Endworking Attachment:
Number of Tools: 4
Maximum Drilling Capacity: 4mm (0.15″)
Maximum Tapping Capacity: M4 x P0.7
Maximum Die Cutting Capacity: M4 x P0.7
Equipped With:
Fanuc 16-T Control
LNS Mono Bar Loader
