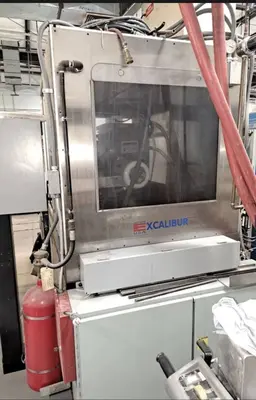

USED 1900 EXCALIBUR E60

Max Tool Diameter ……….1.00″
Min Tool Diameter………………………………..0.010″
Max Length of Grind………………………………4.0″
Max Overall Length of Tool…………………….12.0″
Wheelhead Axes: X-Slide……7.5″,
repeatability 0.0002″
Y-Slide……………………7.5″, repeatability 0.0002″
Z-Slide………………….9.0″, repeatability 0.0002″
Toolhead Axes: U Slide………..5.0″, repeatability 0.0002″
C-Rotary………………………180º, resolution 0.003º
A-Rotary………………………………………..(Work Spindle) free rotation, resolution 0.005º
Feedrates:
All Linear Axes………………………………….0-200 IPM
Rotary A-Axis……………………………………500 RPM
Rotary C-Axis……………………………………0-7 RPM
Wheel Spindle RPM……………………..0-6000 RPM
Wheel Diameters………………………………….4″-6″
Spindle HP………………………………………5 HP
Electrics……………………………………….440V/3PH/60HZ
Floor Area Machine, Controls, and Coolant Tank………99″ x 90″
Machine Weight……………………………..4,400 LBS
Equipped with:

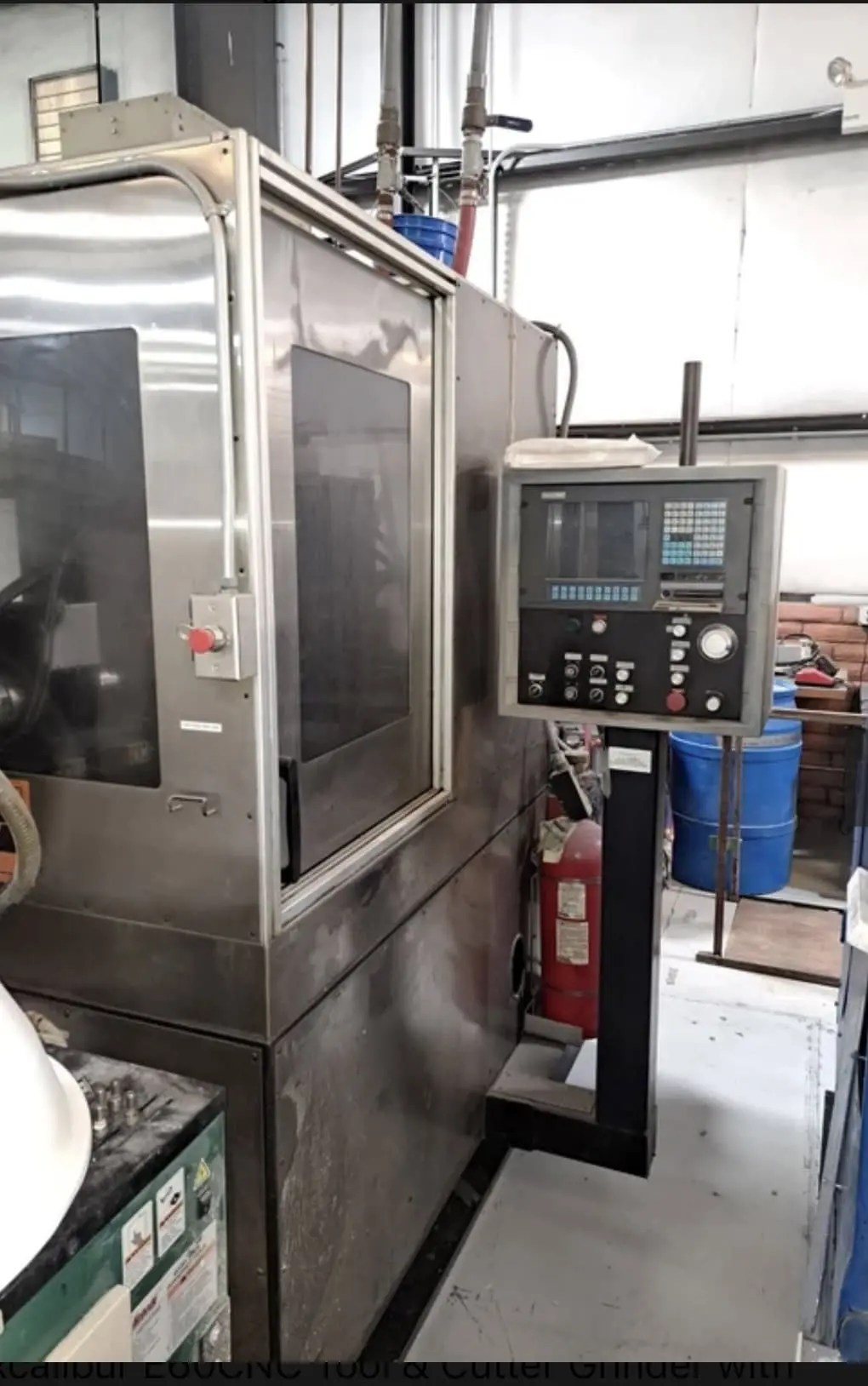

-Intel Pentium controlled 6-axis CNC controller.
-Digital AC servos drive all linear axes and the “C” axis.

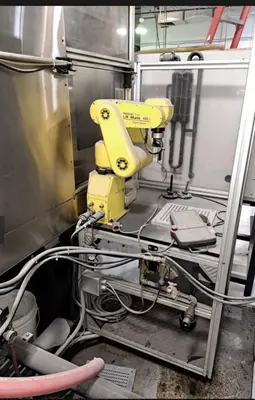

-Fanuc Robotics LR Mate 100i high-speed 5-axis robot
-Optional Double pneumatic grippers (small series).
