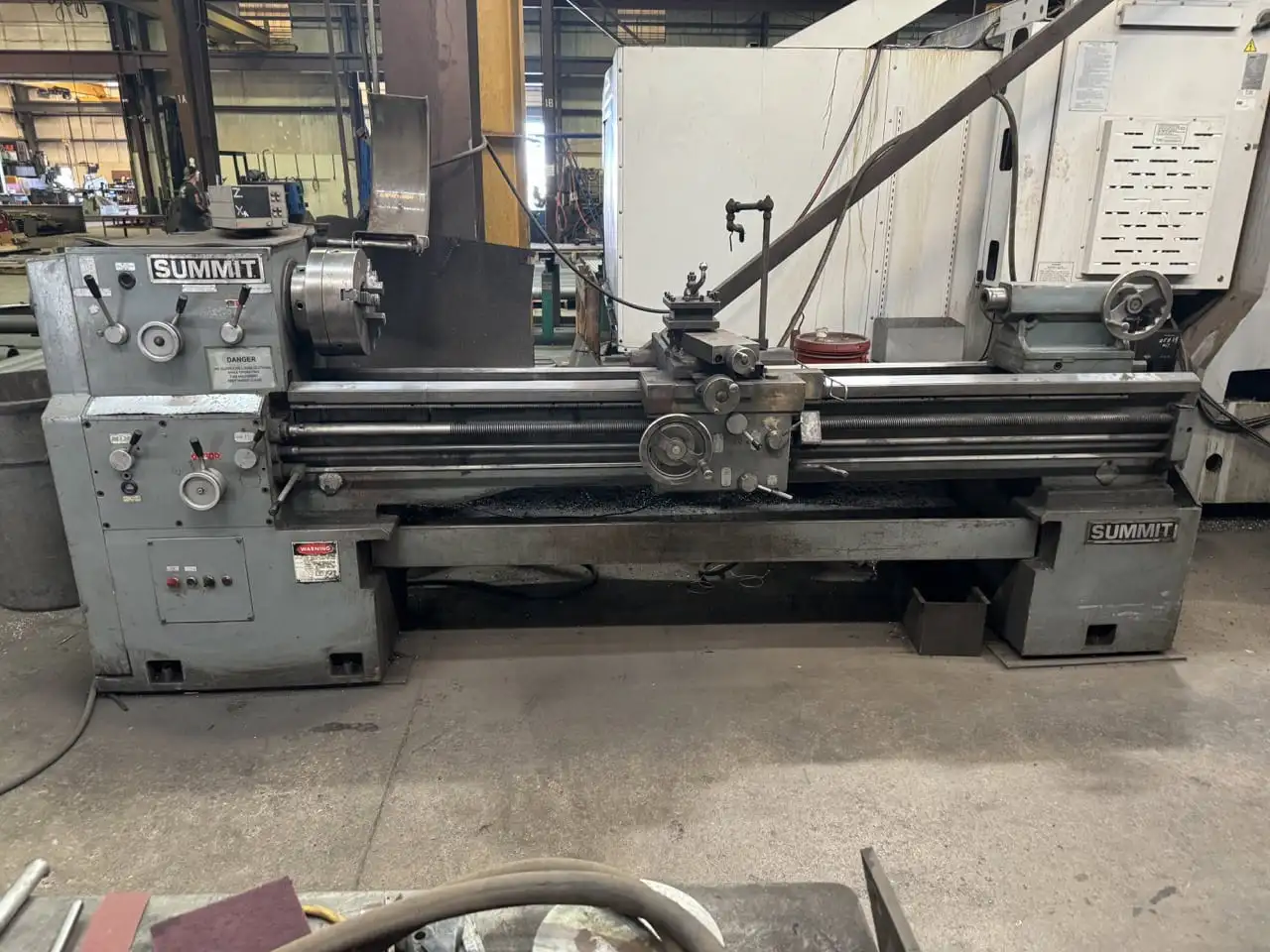

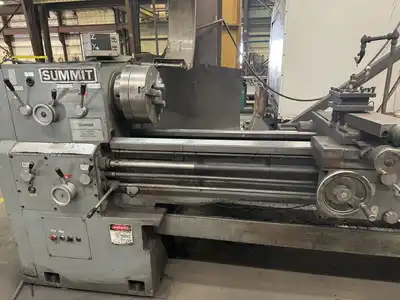

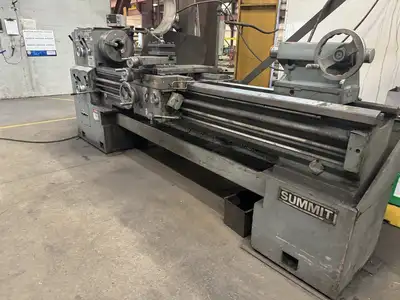

USED 1991 SUMMIT 19-4X80

Swing Over Bed: 19″
Swing Over Cross Slide: 10-3/4″
Swing Over Gap: 27″
Gap Length: 15-3/8
Width of the Bed on Slidways: 13-3/8″
Distance Between Centers: 80″
Spindle Speeds: 22-1500 RPM
Feeds: .0007″ – .444″
Hole Thru Spindle: 4-1/8″
Main Spindle Taper: D1-8 Camlock
Tail Stock Sleeve Diameter: 3″
Tailstock Sleeve Stroke: 8”
Tailstock Sleeve Morse Taper: No. 5
Lead Screw Spindle Diameter: 1-3/8″
Lead Screw Spindle Thread Pitch: 4 T.P.I
Main Motor: 7.5 HP
Electrical: 220V / 3Ph
Equipped With:
Mitutoyo DRO

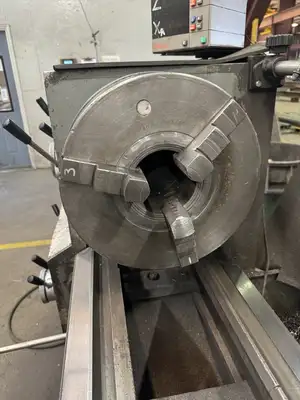

12″ 3 Jaw Chuck
Steady Rest
Following Rest
Face Plate
Extra Set of Steel Jaws

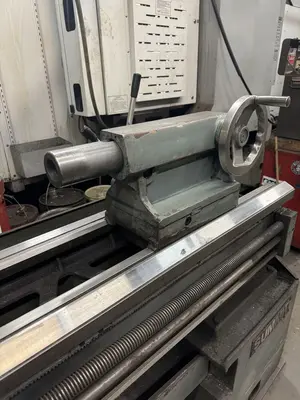

Tailstock
Inch/Metric Threading
