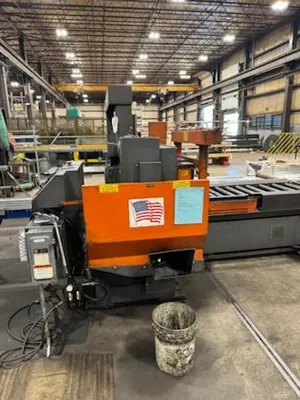

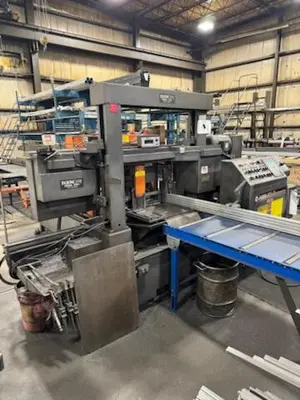

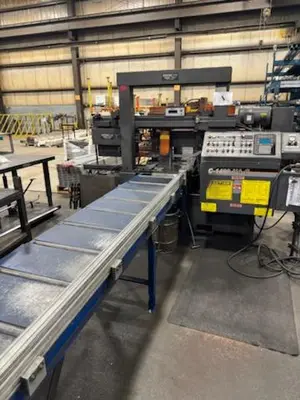

USED 2009 HEM DC 1420 HA-C

Capacity: 14” x 20“

1/25″ Blade Size
Cutting Capacity: 14″ x 20″
Blade Specifications: 1-1/4″ x 17’8″ x .042″
Blade Drive: 7.5 H.P.
Variable Frequency Drive
Hydraulic Guide Arm
Hydraulic Drive Motor: 2 H.P.
Shuttle Stroke: 0-24″ with Multi-Indexing
Electrical Requirements: 480 Volt, 3 Phase
Additional Features/Equipped With:
Split Front Vise and 3rd Holding Vise
Hydraulic Feed Traverse
Chip Auger
Full Stroking Vises
Head Height Adjustment
Material Jog Function
Bundling Attachment
Shuttle tables
New Program Board in 2023
Dimensions:
Saw: 126″ x 54″ x 80″
Conveyor: 88″ x 82″ x 51″
Weight: 8,000 lbs
