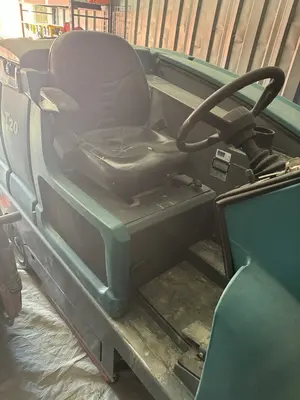

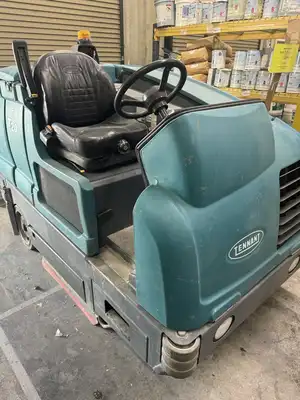

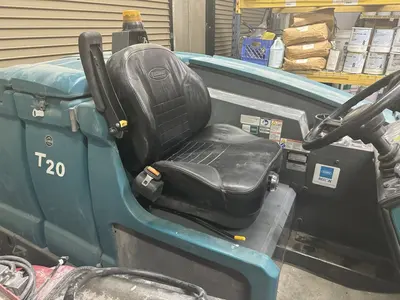

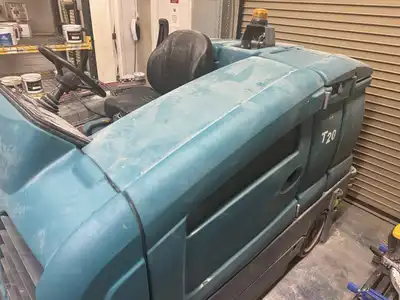

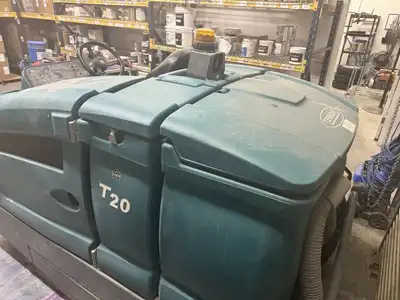

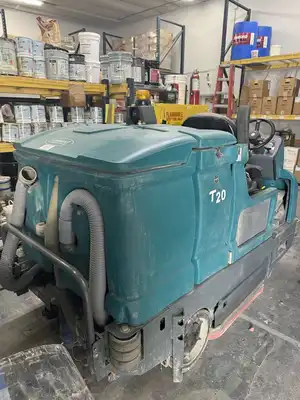

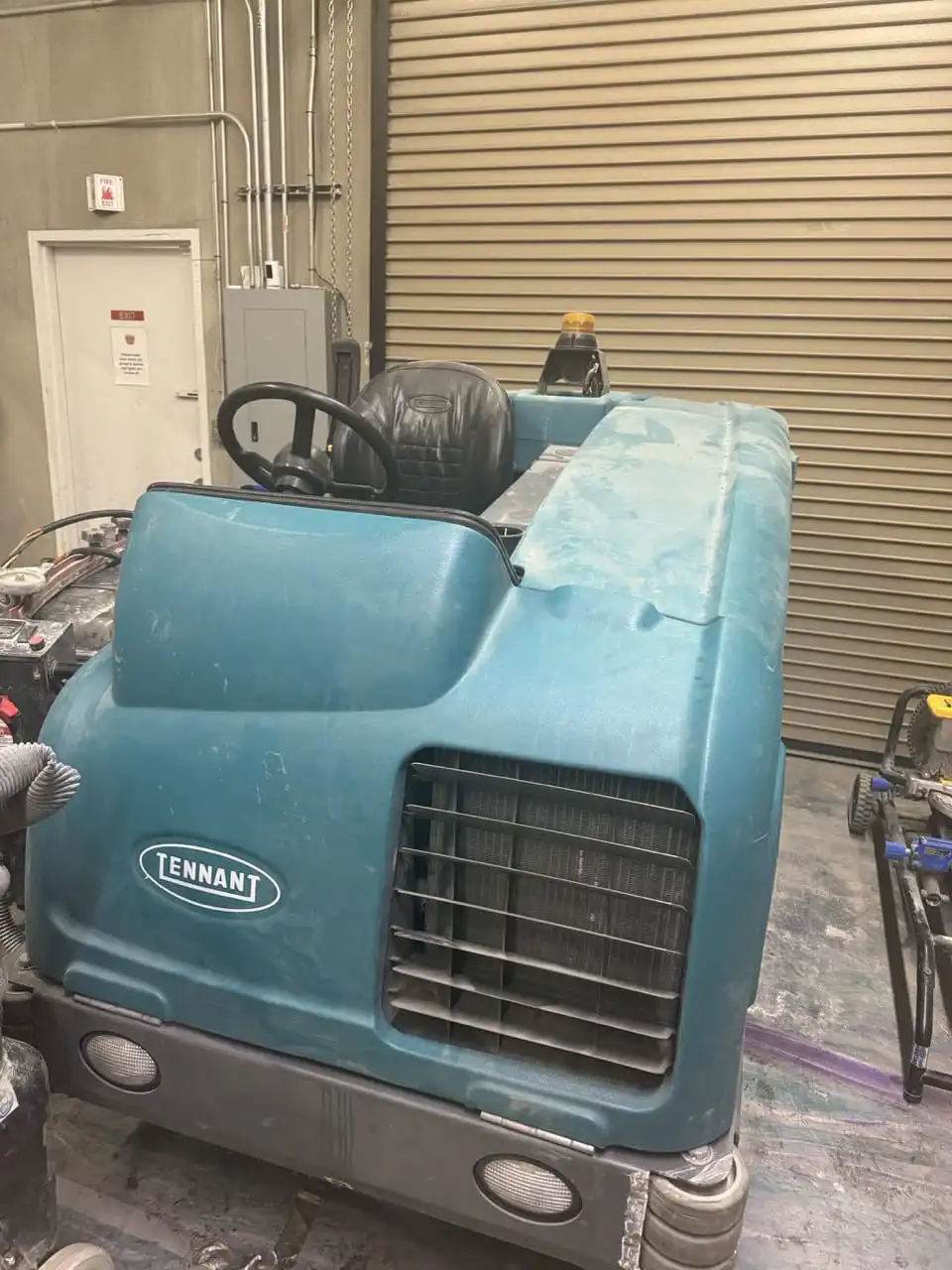

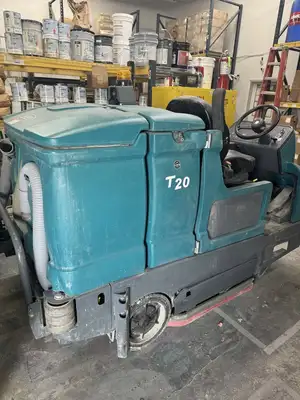

USED 2012 TENNANT T-20

Cleaning Path:
Cylindrical main brushes: 40 inches
Disk main brushes: 42 inches (1,070 mm)
With scrubbing side brush: 54 inches (1,370 mm)
With sweeping side brush (cylindrical only): 56 inches (1,420 mm)
Brush Specifications:
Cylindrical brushes: 2 brushes, 12 inches (300 mm) diameter, 480 rpm
Disk brushes: 3 brushes, 14 inches (360 mm) diameter, 230 rpm
Maximum brush down pressure: 425 lbs (193 kg) for cylindrical, 400 lbs (181 kg) for disk
Tank Capacities:
Solution tank: 80 gallons (303 L)
Recovery tank: 95 gallons (360 L)
Demisting chamber: 15 gallons (57 L)
Propulsion System
Forward speed: Up to 8.0 mph (12.9 km/h)
Reverse speed: Up to 3.0 mph (4.8 km/h)
Engine options: Gasoline, LPG, or Diesel
Gradeability: 10° (18%) for transport, 8° (14%) for cleaning
Machine Dimensions
Length: 95 inches
Width: 50 inches frame, 51 inches rear squeegee
Height: 58 inches, 83.5 inches with overhead guard
Weight: 3,300 lbs empty, 4,900 lbs GVW1
Minimum aisle turn: 110 inches
