USED 2020 LINCOLN ELECTRIC POWER WAVE R450

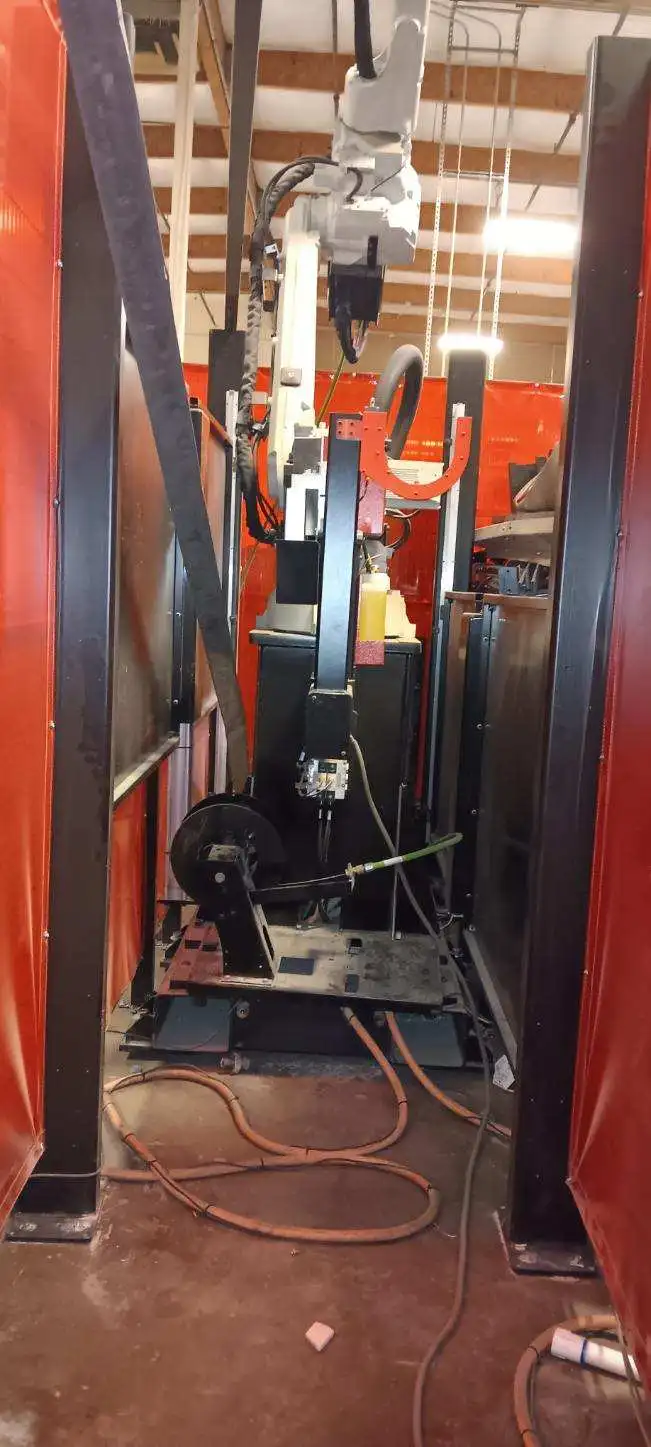

IRB 2600ID-8 2.0 Six Axis Robot Package
Includes:
» IRB 2600ID 6 Axis Robot
» IRC5 Controller
» Collision Detection
» Path Recovery
» Multitasking
» Color Touch Screen FlexPendant (10m Cable)
» Cable Management
Specifications:
» Reach: 78.74″
» Repeatability: 0.001″
» Payload Capacity: 17 LBS
» 480V 3Ph

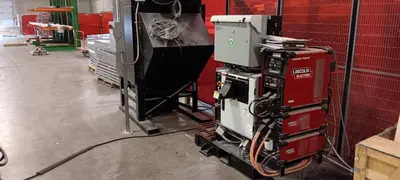

Lincoln Power Wave R450 Welding Package
Includes:
» Power Wave R450 Power source
» PowerConnectTM Technology (patent pending) – Automatically adjusts to input power while maintaining a constant welding
output throughout the entire input voltage range
» TribridTM Power Module – Exceptional welding performance with high power factor and efficiency
» Built in feeder control
» Gas flow sensor
» Wire conduit from wire barrel to wire feeder
Specifications:
» 450A output at 100% duty cycle
» 550A output at 40% duty cycle
» Process Capabilities:
o Pulse
o Pulse-on-Pulse
o Power Mode
o RapidArc
o Rapid XTM (When paired with STT Module)
Power Wave Advanced Process Welder Module
» AC Aluminum waveforms enabled
» Surface Tension Transfer (STT) process enabled. STT reduces spatter and helps with gap bridging through precise arc
control
» Exceptional Arc Control – Burnthrough control on thin metal or critical pipe welding
» UltimarcTM – Dynamically and simultaneously controls all heat input parameters
» Modular Design – Easy connection and fast digital communication
» Compact Footprint – Connects directly to Power Wave
» Self-Protecting Circuits – Protects itself from the excessive transient voltages associated with highly inductive weld circuits
» Rapid XTM Weld Process Enabled
o Provides excellent arc stability at shorter arc lengths
o Increases Travel Speed by up to 40%
o Reduced Spatter by up to 30%
o Increases Penetration
o Reduces Heat Input
o Reduces Distortion
Specifications:
» 300A output at 100% duty cycle
» 350A output at 40% duty cycle
» Process Capabilities:
o Multi-Process reverse polarity (DC+)
o Straight polarity (DC-)
o AC
o High Frequency TIG
o STT
o Rapid XTM
Equipped With:
IRB 2600ID-8 2.0 Six Axis Robot Package
BullsEye TCP Calibration System
FHS-B2B System w/ Wire Mesh Paneling
Lincoln Power Wave R450 Welding Package
Lincoln AutoDrive SA Aluminum ServoTorch Package
Power Wave Advanced Process Welder Module
Touch Sense
WolfArcTM
Binzel Single Wire Torch Cleaner
Virtual Cell In RobotStudio
Operator Panel
Product Documentation
Fab-Pak FHS Installation Supervision
Note: 2 Tables pictured are not included
