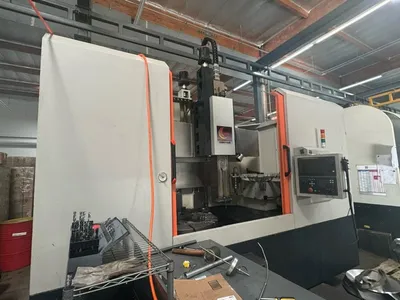

USED 2020 DMTC CGK5112JD
Overview
Specs
Manual Chuck Diameter: 39.37″
Max swing diameter of workpiece: 47.24″
Max Machining Diameter: 47.24″
Max Machining Height:39.37″
Max Workpiece Weight: 11023.11 lbs.
Worktable Speed Step: Stepless
Table speed range: 400 r/min.
Beam Travel: 31.5″
Max torque of worktable: 30000 N
Feeding series: Stepless
Feeding range: 78.4″/min
Rest fast moving speed: 196.85″/min
X axis Feeding Moter Torque: 12Nm
Z axis Feeding Moter Torque: 22 Nm
Tool Rest Horizontal Travel: 25.59″
Tool Rest Vertical Travel: 31.49″
Max cutting force: 2800 N
Main motor: 30 HP
Machine Size(L×W×G):
158″W X 96″D X 168″H
Machine Weight 30,000LBS
Equipped With:
FANUC Oi-TF Plus Control
Chuck 4 jaw 1000mm Manual Chuck
ATC 8 Station with 2 tool holders
