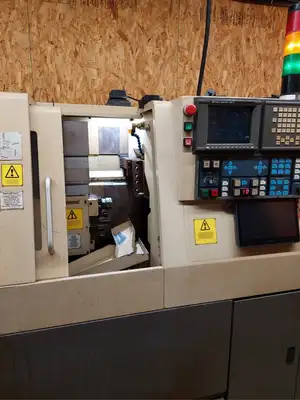

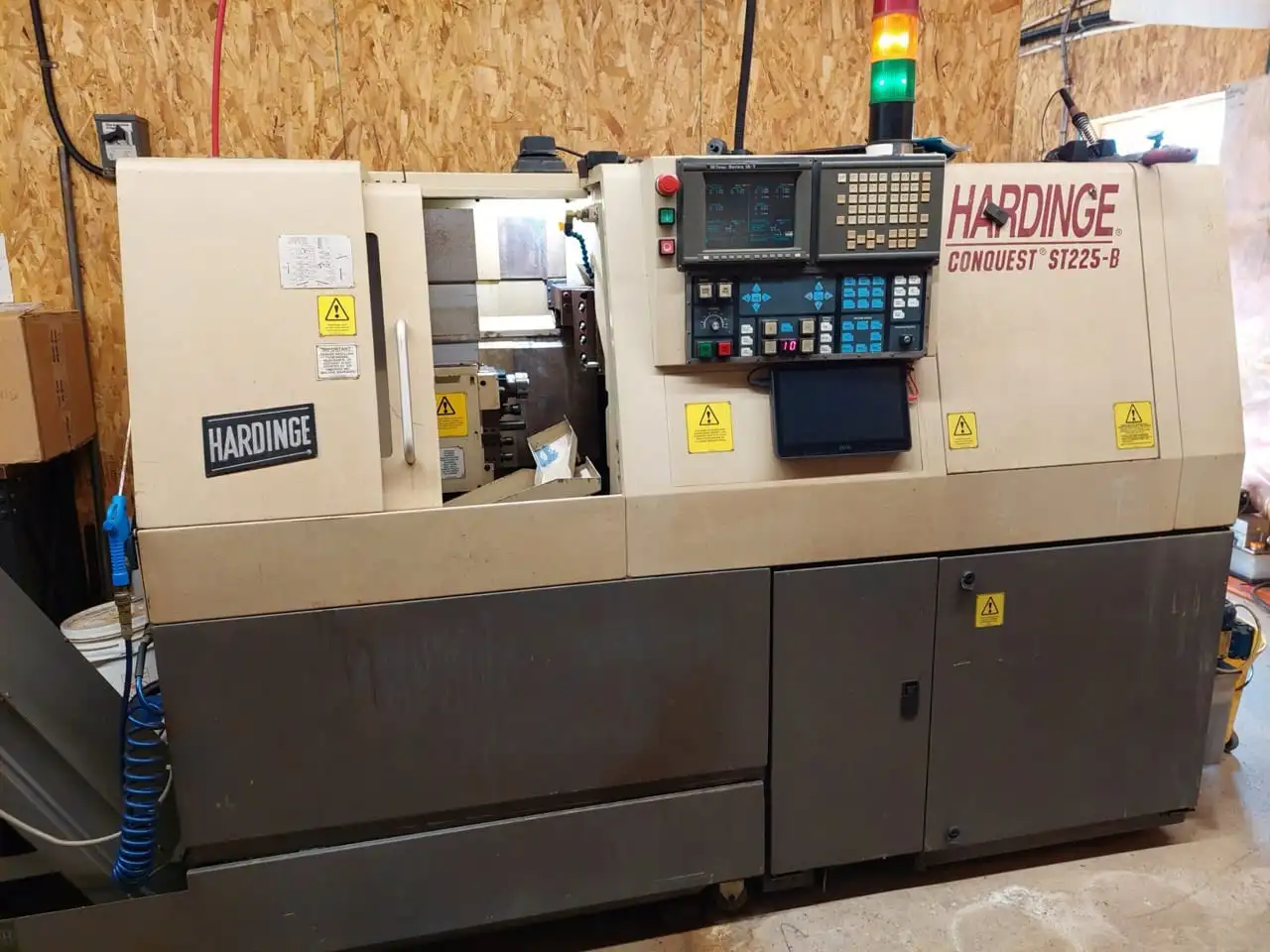

USED 2000 HARDINGE CONQUEST ST225-B

Collet Style: S25-HM
Bar Capacity W/ Collet: 1″
Machining Length – Single Chuck: 9.65″
Speed: 200 – 6300 RPM
Drive Motor: 7.3 HP
Increments W/ C-Axis Option: 0.001°
Number of Axes w/C-Axis Option: 6X1-Axis Travel: 2.75″
Y1-Axis Travel: 7.5″
Z1-Axis Travel: 9.65″
Y2-Axis Travel: 9″
Z2-Axis Travel: 8.5″
X-Axis Speed: 472 IPM
Y1 and Y2 Axis Speed: 630 IPMZ
2-Axis Speed: 787 IPM
Square Shank Tool Size: 5/8″
Number on Front & Rear Tool Slide: 6
Size of Round Shank Tools – Type B – Front End Working: (4) 1″
Size of Round Shank Tools – Type B – Back End Working: (4) 5/8″
Tool Shank Diameter W/ Collet Front & Back End Working: 0.04″ – 0.5″
Sub Spindle Collet Style: S25-HS
Speed Range: 200 – 8000 RPM
Drive System: 3 HP
Round Shank Tool Size: 1″
Number of Tools for Front End Working (W/ Live Tool Mill/Drill Option): 3 + 1 Live
Live Tooling (Option): Number of Live Tools for Cross Working: 3, 1 for Mill/Drill Sub
SpindleSpeed Range – Cross Working: 250-6000 RPM
Speed Range – Sub Spindle: 200 – 8000 RPM
Rated Motor Power – Cross Working: 1.9 HP
Rated Motor Power – Sub Spindle: 3 HP
Machine Dimensions: 108″ x 60″ x 66″ Chip Conveyor: 84″ x 24″ x 60″
Weight – Approximate: 7500 Lbs.
Electrics: 230V/3Ph/60 Hz
Equipped With:
LNS Super Hydrobar Barfeeder
Chip Conveyor
