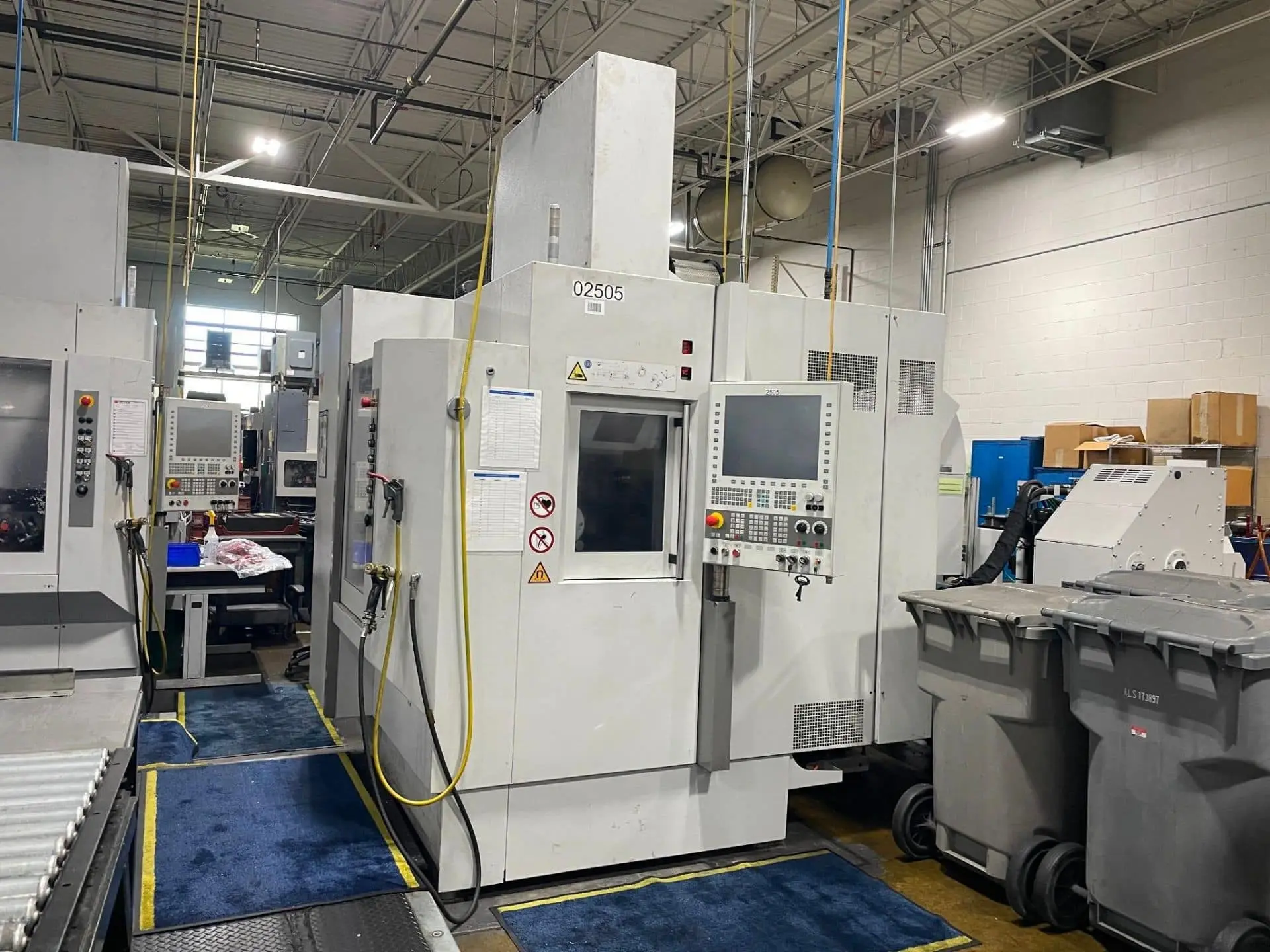

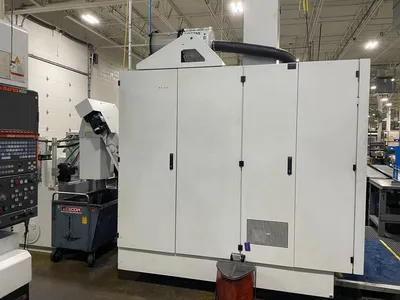

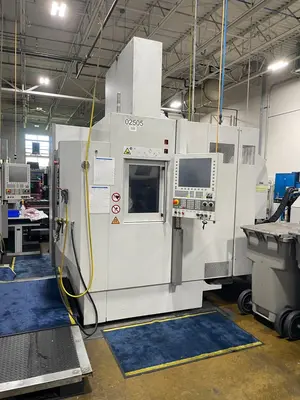

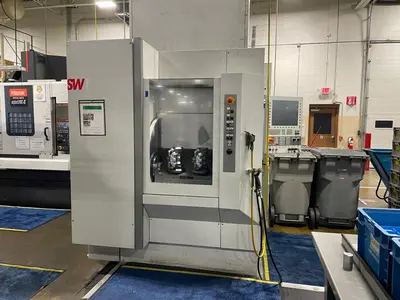

USED 2016 SW BA W02-22

X-Axis: 7.87″
Y-Axis: 13.78″ (20.67″ with toolchange position)
Z-Axis: 11.81″
Spindle Distance: 9.84″
Spindle Taper: HSK-A40
Spindle Speed: 25,000 RPM
Swivel Carrier / Counterbearing: Equipped with crown gear, swivel time 0/180° approx. 2.25 s
A- and U-Axis: Prepared for mounting a fixture plate, up to max Ø 16.73″ x 24.80″
Drive System: Torque motor
Load Capacity: 2 x 352.74 lbs
Speed Range:
A- and U-Axis: 1 – 100 RPM
C- and W-Axis: 2 satellites
Toolchange:
Chip-to-Chip Time: Approx. 1.75 s
Weight / Dimensions:
Total Weight: Approx. 13,889 lbs
Transport Dimensions (W x H x L): 75.59″ x 92.52″ x 100.39″
Machine Installed (W x H x L): 125.98″ x 114.17″ x 204.72″
Connected Load:
Operating Voltage: 3 x 400 Volt, 50 Hz, TN-S/TN-C network
Total Connected Load: 41 kVA
Mean Air Consumption: 14.12 cubic feet per minute (80 psi)

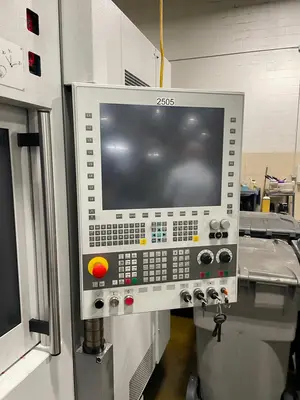

Control: Siemens Sinumerik 840D SL
