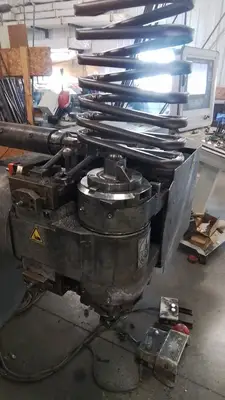

USED 2017 SCHWARZE ROBITEC CNC 40

Capacity: 1.25” Ø

Tube Capacity: 0.5" to 1.25"
Maximum Centerline Radius: 5.9"
Maximum Bending Rotation: 185 degrees
Bending Direction: Left to Right
Max. bending capacity of the machine: tube OD x wall thickness
standard steel: 40 x 2 mm 1.57 x 0.08 In
stainless steel: 32 x 1,5 mm 1.26 x 0.06 In
Max. modulus of section: approx. 2,2 cm3 0.9 In3
Max. tensile strength of material to be bent:
Standard steel: 450 N/mm2
Stainless steel: 750 N/mm2
Min. tube OD: 8 mm 0.31 In
Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In
Min. bending radius (CLR): 10 mm 0.39 In
Max. tube length: 2000 mm 6.56 feet
Max. bending angle: 185°
Max. bending angle accuracy: ± 0,1°
See Video attached
