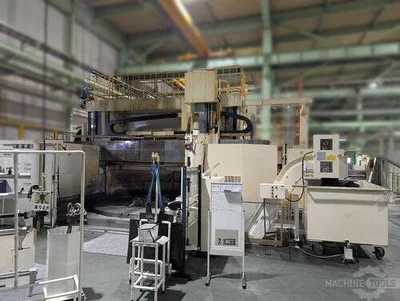

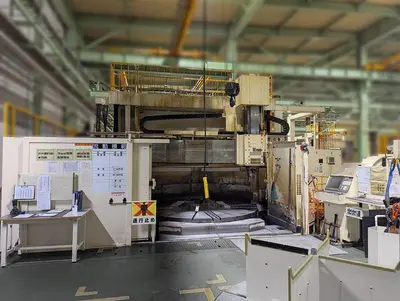

USED 2010 OKUMA TN-350
Overview

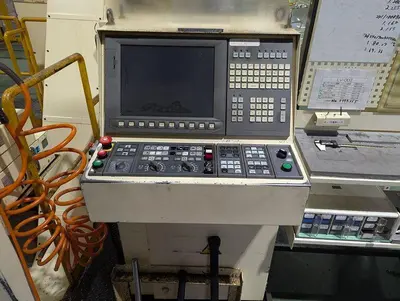

OSP-P200L CNC Control
Vertical spindle attachment - 30 - 4,000 rpm
(S4000/L250/22kW/non-indexable/through-spindle compatible)
90° angular attachment - 30 - 3,000 rpm
(S3000/L150/22kW/indexing every 180°/oil hole block attached)
Tool shank type: MAS BT50
Maximum number of tools: 12 turning holders, 22 milling tools, 1 cover

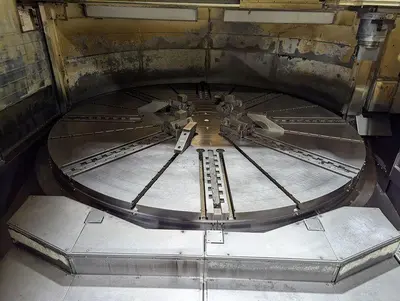

Eight-jaw single-acting table 3,200 mm Diameter
Kawata Tech 8-jaw X-axis telescopic cover
2,000L cutting fluid tank (rear-mounted)
High-pressure coolant system (2 MPa)

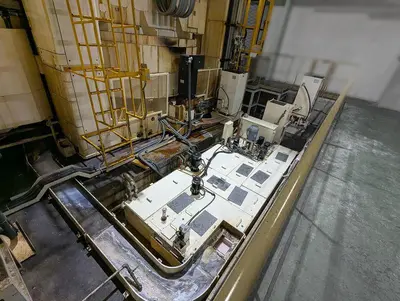

Chip conveyor
Automatic cutting edge measurement and correction device
X/Z-axis absolute scale
Automatic measurement and automatic origin correction function
Renishaw RMP60
Crossrail Lift 790mm
Crossrail positioning: 125mm x 7 points, 4 control axes
Specs
Manufacturer: Okuma
Model: TN 350
Year: 2010
Condition: Used
Stock Number: 5654270

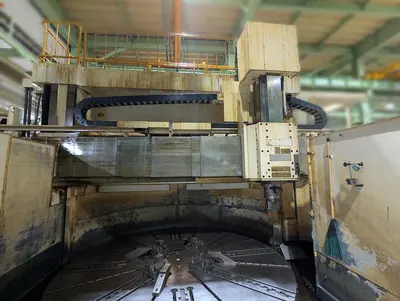

Table diameter: 3,200 mm
Swing: 3,500 mm
Turning height: 1,400 mm
Table capacity: 20,000 kg
Table turn speed: 1 - 49 rpm
Live spindle speed: 4,000 / 3,000 rpm
X axis travel: 4,000 mm
Z axis travel: 800 mm
Crossrail lift: 790 mm
Spindle taper: MAS BT50
C axis: 0.001°
Max turning torque torque (30 min/cont.): 42,800 / 35,000 Nm
Machine dimensions: 10,330 x 8,000 x 5,865 mm
Machine weight: 47,000 kg
