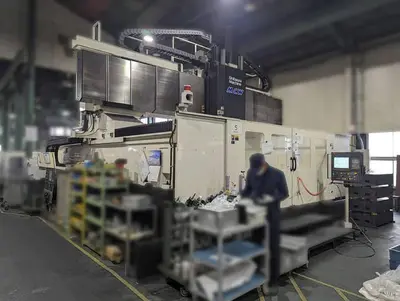

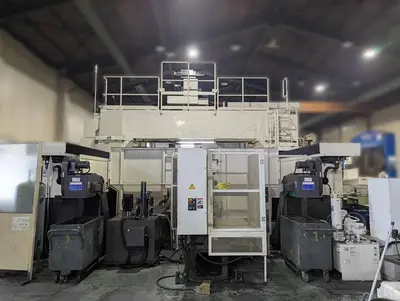

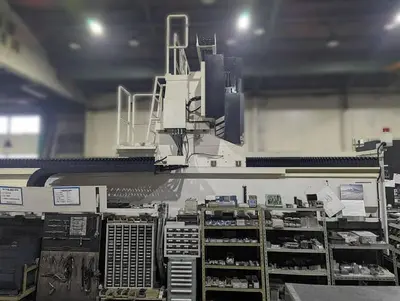

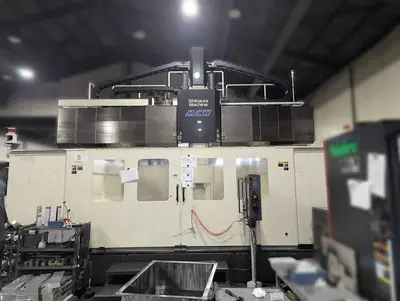

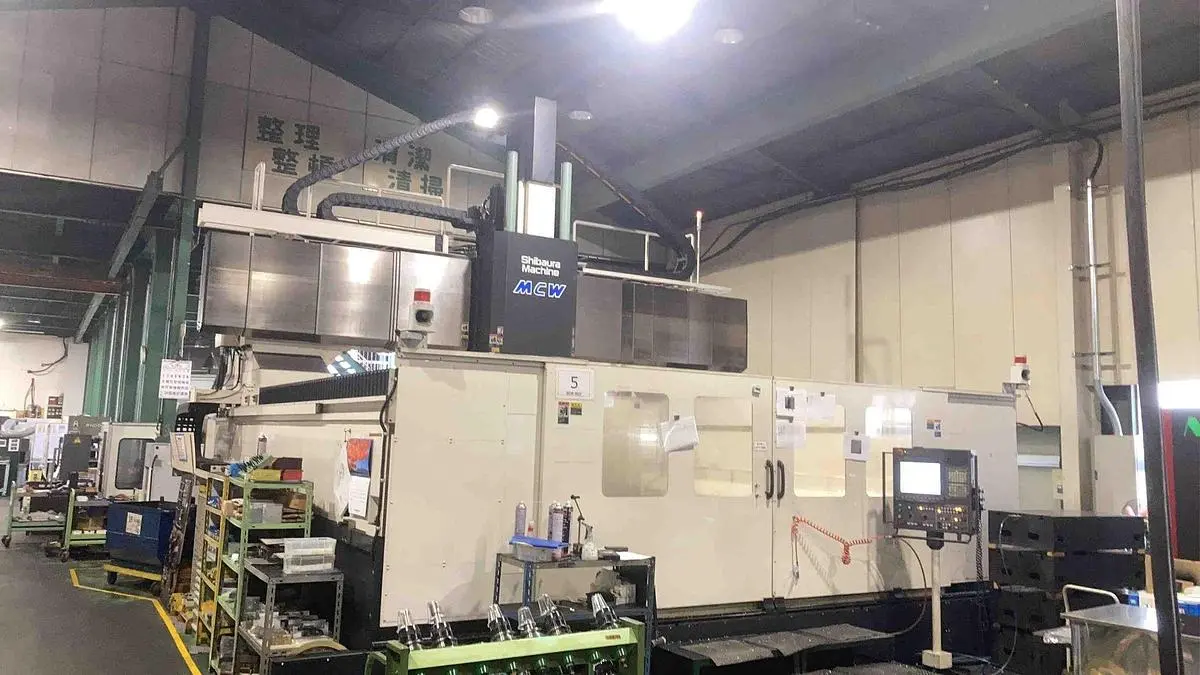

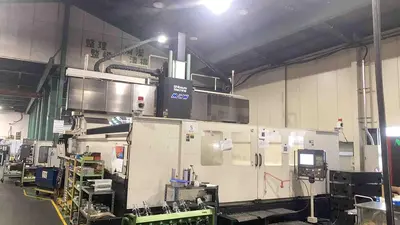

USED 2021 SHIBAURA MCW 4624(5A)
Overview

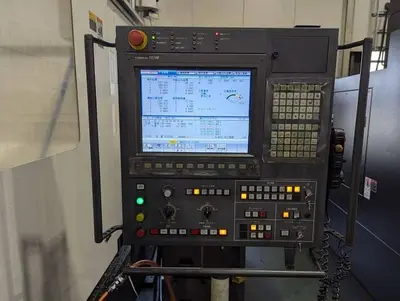

Tosnuc PX100 CNC Control
5 Controlled Axes - X,Y,Z,B,C

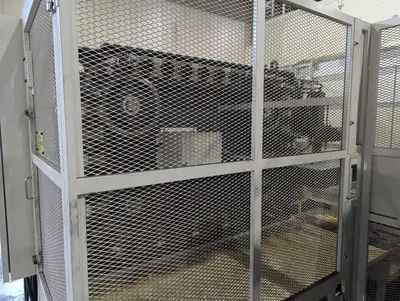

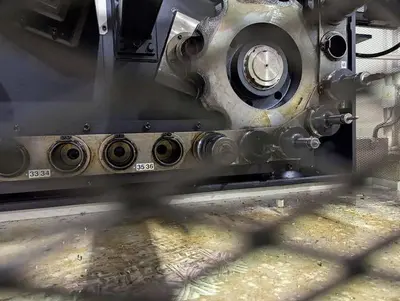

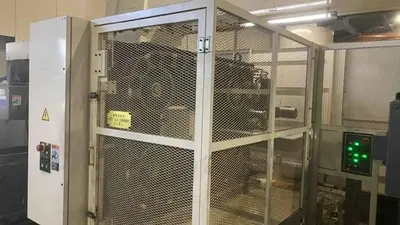

36 Position Automatic Tool Changer
Simultaneous 3-Axis Machining Positioning (G00) Linear (G0-) & Circular (G02, G03) Interpolation

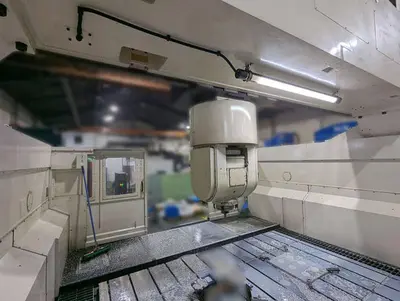

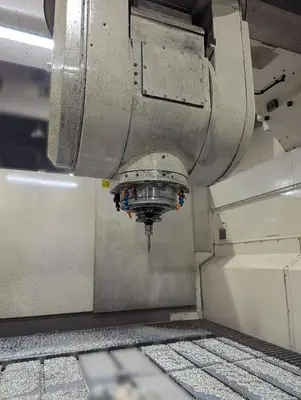

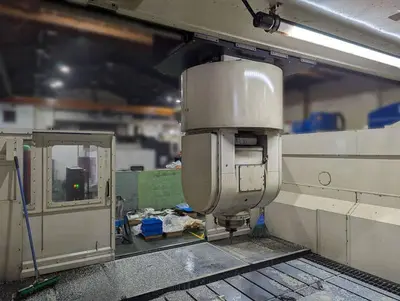

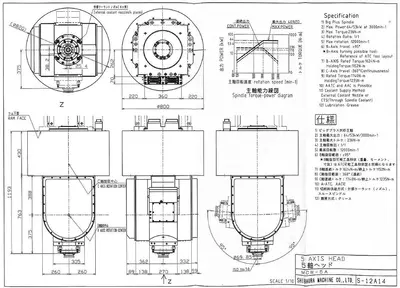

5-Axis Head (MCW-5A)
Cycle Range ±95°
C-Axis Rotation Range (Continuous) 360°

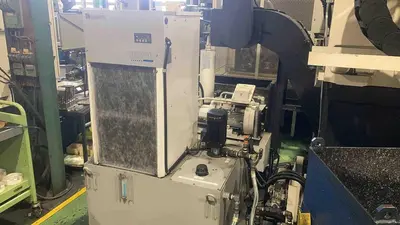

Spindle Head Cooling Oil Temperature Control Unit

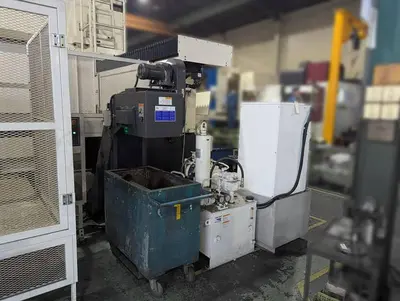

Chip Conveyor
Coolant Through-Spindle support

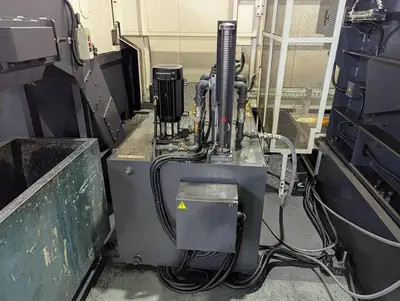

Hydraulic Tank Capacity 160L (HM32)
Spindle Cooling Unit - 280L
Tool Shank Type MAS BT50
Pull Stud Type MAS P50T -1 (45°)
Hydraulic Motor AC 4P 7.5 kW
Cast Iron Base + Linear Box Rail Cover
Feedback System for Closed-Loop Control for Z-Axis only
Spindle Head Compatible with BIG PLUS
Automatic Tool Length Measuring Device
Specs
Manufacturer: Shibaura
Model: MCW 4624(5A)
Year: 2021
Condition: Used
Stock Number: 5654272
Between columns: 4,580 mm
Spindle speeds: 12,000 rpm
X axis travel: 3,500 mm (+ATC 100 mm)
Y axis travel: 3,200 mm
Z axis travel: 800 mm

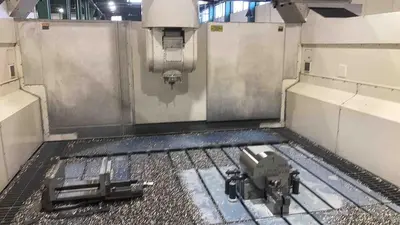

Table dimensions: 3,200 x 2,400 mm
Table capacity: 10,000 kg/m²
Rapid Feed X/Y/Z: 25/25/10 m/min
Spindle taper: 7/24 No. 50
Spindle motor: 64 / 53.4 kW
Spindle torque: 236 Nm
B axis: ±95°
C axis: 360°
Ram size: 480 x 480 mm
Rapid feedrate X/Y: 25 m/min
Rapid feedrate Z: 10 m/min
Feedrate X/Y/Z: 10,000 mm/min
Feedrate B/C: 3600 deg/min
Machine power: AC 220V ±10%, 60 Hz ±1Hz
Machine size: 8,300 x 9,900 x 5,800 mm
Machine weight: 70,000 kg
