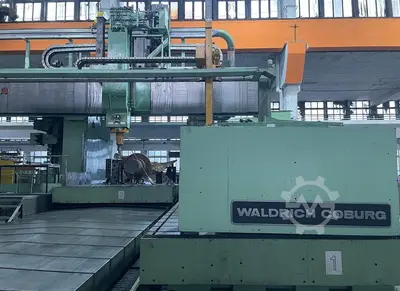

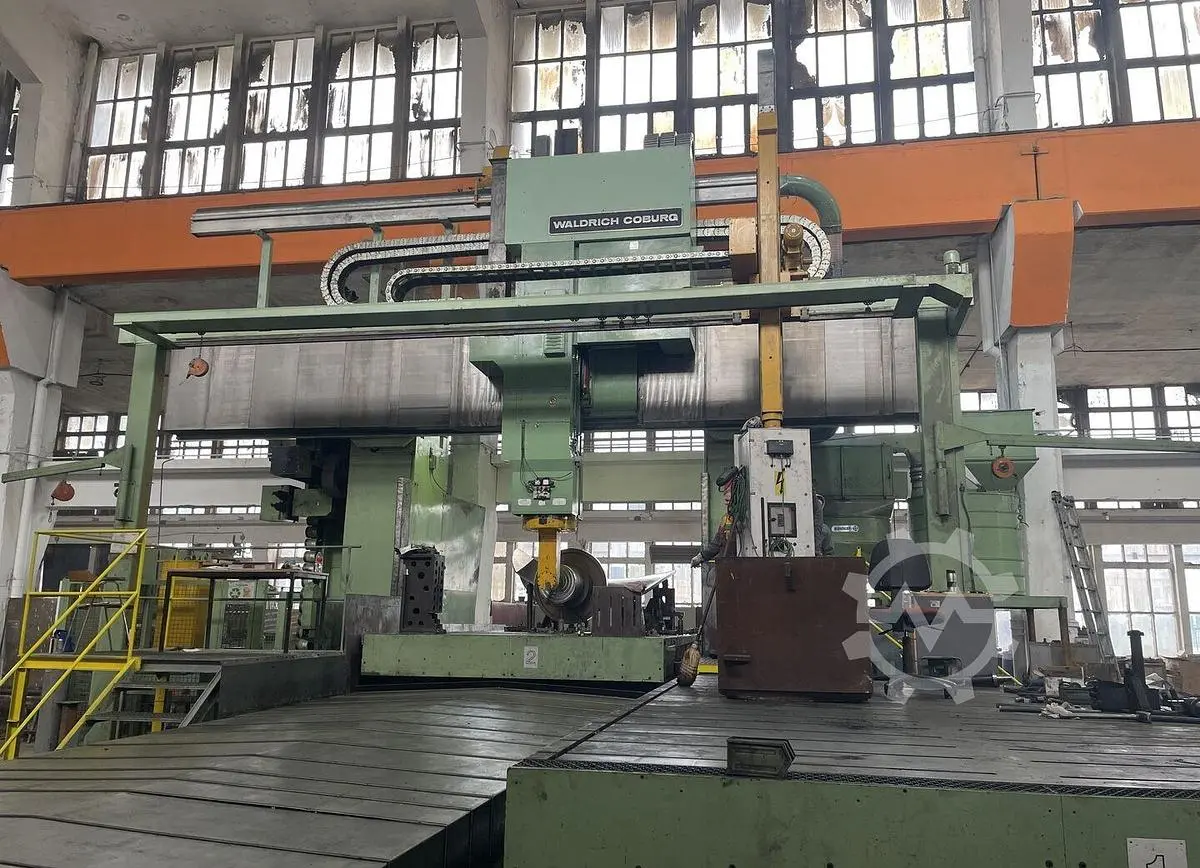

USED 1994 WALDRICH COBURG 15S-10 FPF 300 NC
Overview
Description

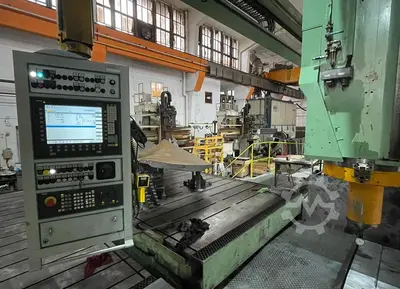

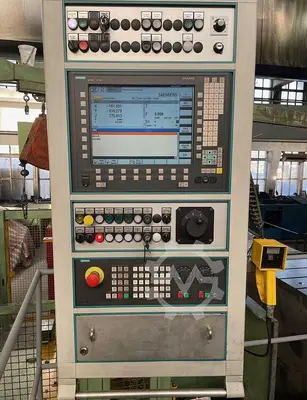

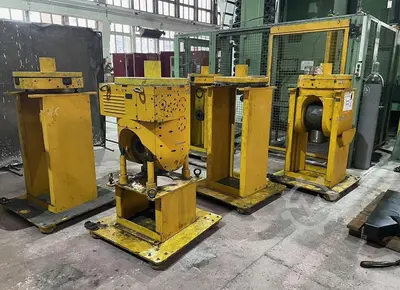

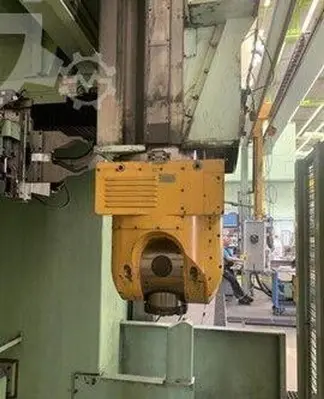

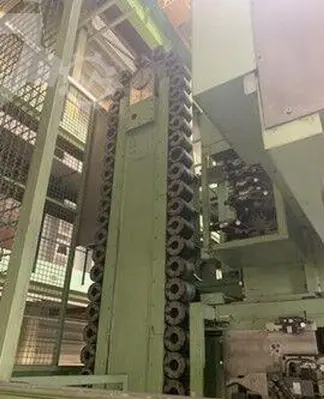

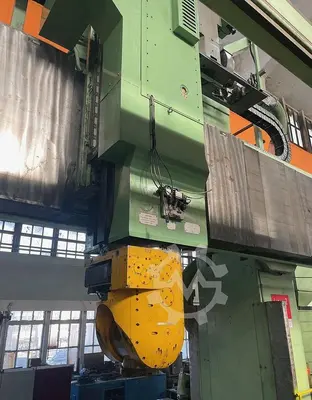

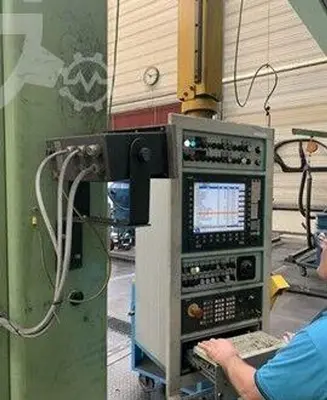

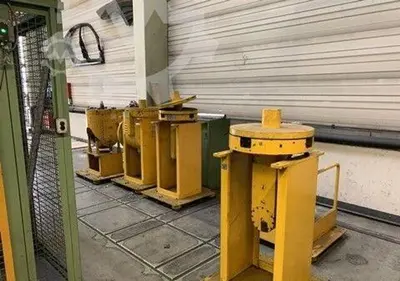

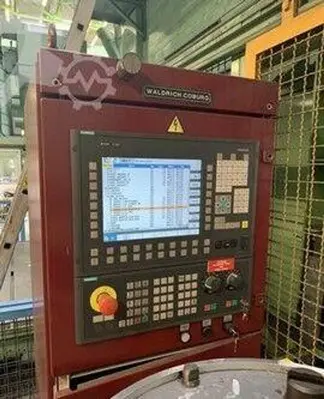

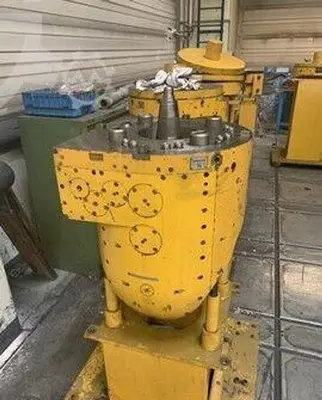

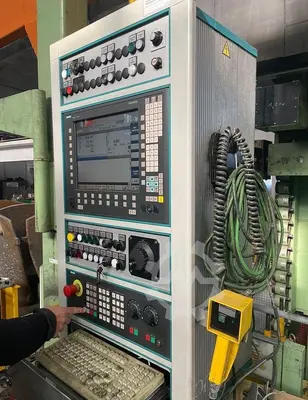

Full Rebuilt & Retrofitted in 2014 / 2015Basically, everything new except the castingNew Control UnitNew CablesNew MotorsNew ElectricsGuideways OverhauledSpindle Hours - 1,931Switch-On Hours - 7,870Featuring:Siemens 840D SL CNC ControlContinuous 5-Axis OperationHeavy double-column machine for processing complex shapes2 pallet stations with 2 pallets (load capacity 65t each)Various angle milling headsNC-controlled milling head with 50 kW milling power / clamping 2.5° each with Hirth serration(type USP300C450F15S)2-axis NC-controlled fork head with 40 kW milling power (type UFN00SZ500)Automatic tool changer for 76 tools (ISO 50 and 60)
Specifications
Manufacturer: Waldrich Coburg
Model: 15S-10 FPF 300 NC
Year: 1994
Condition: Used
Stock Number: 5654273
Working width: 3,500 mm
Spindle speeds: 4,000 rpm
Distance table to spindle nose: 2,300 mm
X axis travel: 7,200 mm
Y axis travel: 4,200 mm
Z axis travel: 1,750 mm
Pallet size (x2): 3,000 x 5,000 mm
Pallet capacity: 65 Ton
Number of pallets: 2
Feed rate: 10 - 15,000 mm/min
Spindle taper: ISO50, ISO60
Spindle diameter, front: 150 mm
Pick up power: 92 kW
Machine weight: 210 Ton
Bed dimensions: 12.5 x 2.3 x 0.78 m - 28.5 Ton
Pallet dimensions: 5.35 x 3 x 0.4 m - 22 Ton
Main pallet carrier dimensions: 5.1 x 2.9 x 0.5 m - 25 Ton
Dimensions of bed section: 3.8 x 2.9 x 0.5 m - 10 Ton
Milling spindle box dimensions: 4.1 x 1.9 x 1.5 m - 13.5 Ton
Left/right column dimensions: 4.1 x 1.3 x 1.7 m - 10.5 Ton

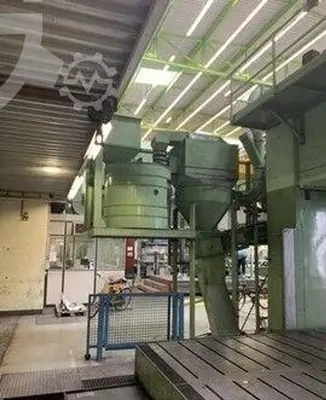

Exhaust air slide dimensions: 8.5 x 0.7 x 1.2 m - 1.1 Ton
Control cabinet dimensions: 7.9 x 0.6 x 2.1 m - 2.8 Ton
