| Table-W | 10" | 254 mm |
| Table-L | 55.25" | 1,403.3 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 4,250 RPM | 4,250 RPM |

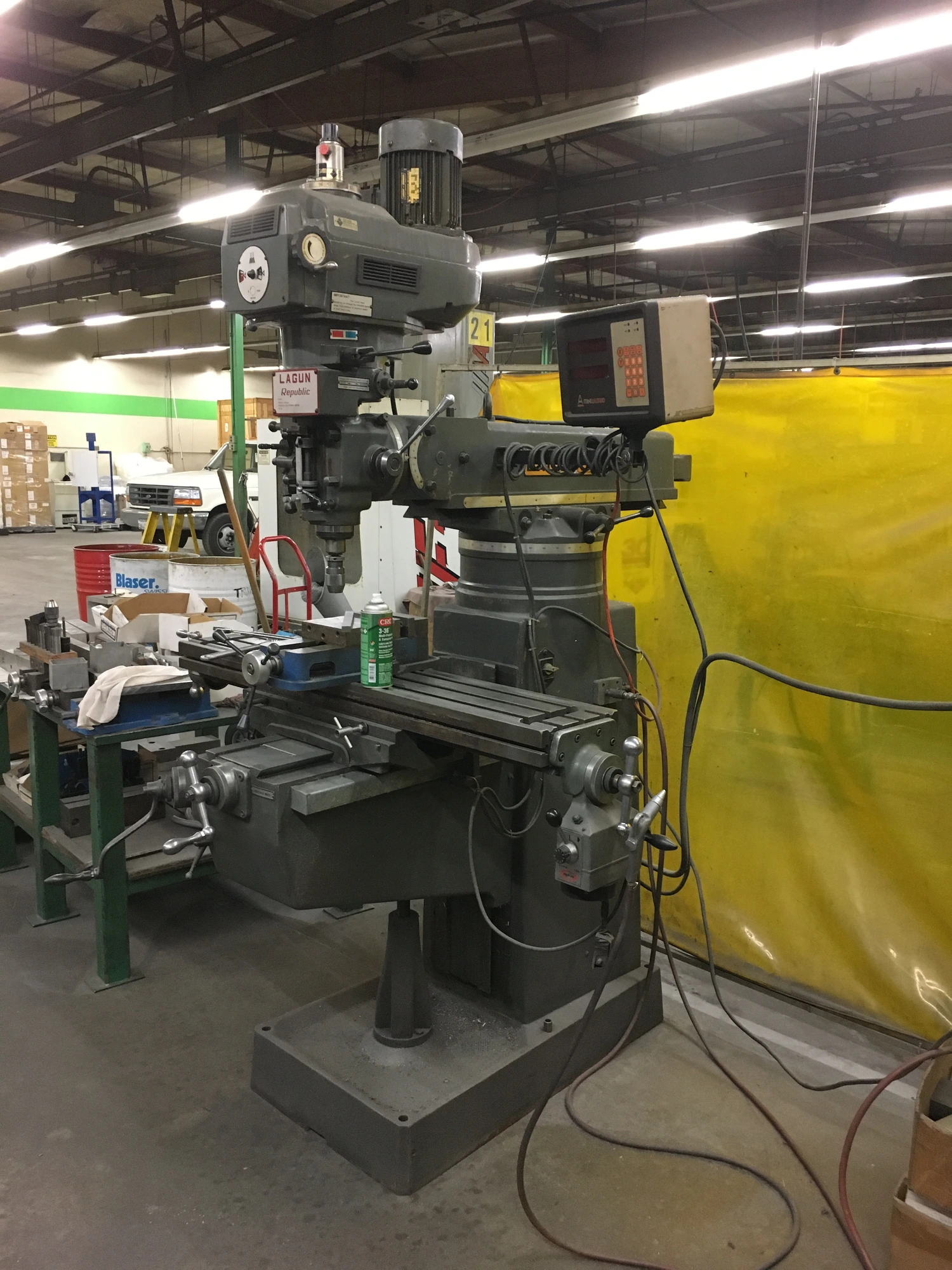

LAGUN REPUBLIC FTV-2 MANUAL MILL
SPECIFICATIONS:
Table Size……………………..55.25″ x 10″
T-Slots………………………..3 on 2.51″ centers
T-Slot Size…………………….0.629″
Maximum Weight Allowed on Table…..750 lb
Table Travel (Manual)……………37.99″
Table Travel (Power Feed)………..34.64″
Cross Travel……………………15.98″
Knee Travel…………………….15.98″
Ram Travel……………………..22.44″
Main Motor……………………..5 HP
Variable Speed with (high-low)
Manual Settings…………………55 RPM to 4,250 RPM
Low……………………………(55 RPM to 490 RPM)
High…………………………..(490 RPM to 4,250 RPM)
Electronic Variable Speed………..0 RPM to 4,200 RPM
Head Swivel…………………….+/- 90°
Head Tilt………………………+/- 45°
Distance, Spindle to Coumn……….5.00″ to 26.96”
Distance, Spindle to Table up to….17.99”
Power Feed per Revolution………..0.00157″ | 0.00314″ | 0.00511″
Spindle Taper…………………..R-8
Quill Diameter………………….3.38″
Machine Weight………………….2,854 lb
Machine Dimensions………………66.92″ x 62.99″ x 103.93″
EQUIPPED WITH:
Anilam Miniwizard DRO
Auto Feed Table
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS**
