USED FITZPATRICK D

Manufacturer Information

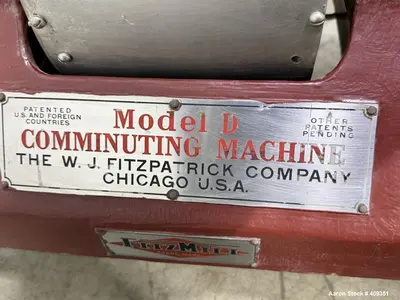

Manufacturer: Fitzpatrick Company

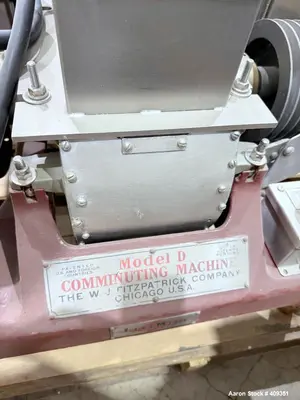

Model: Fitz-Mill Model D

Machine Type: Hammer Mill / Comminutor

Construction: Industrial duty, carbon steel

Mounting: Carbon steel frame

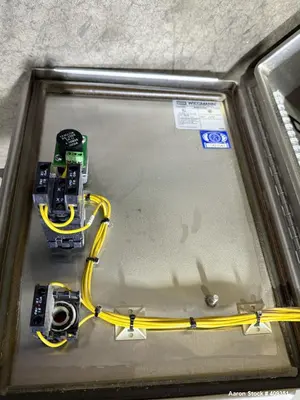

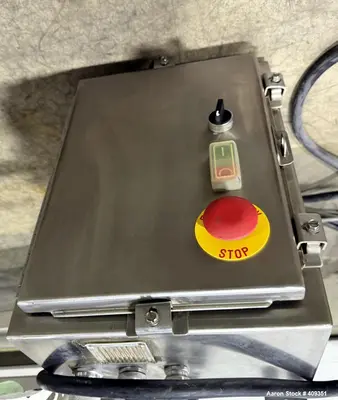

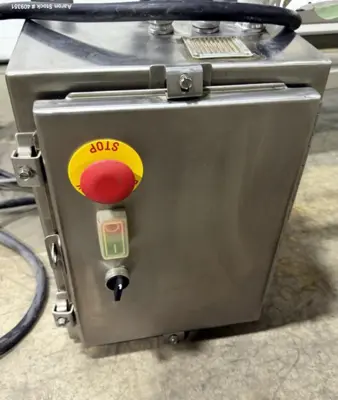

Control System: Control panel with GS2 AC Drive (VFD)

Description

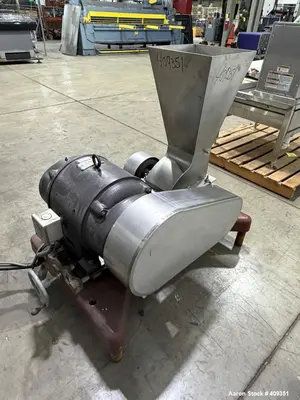

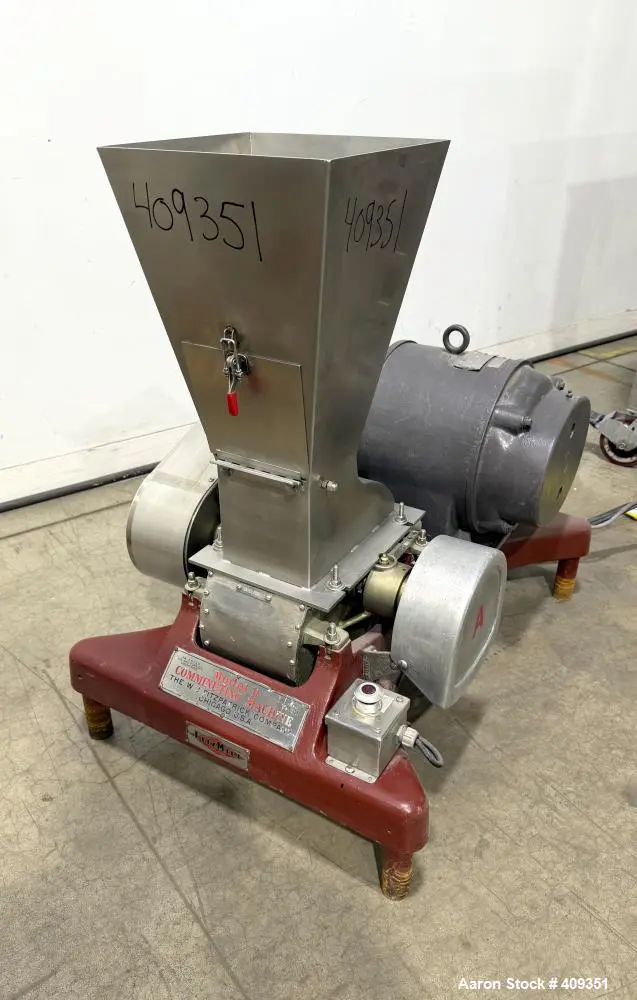

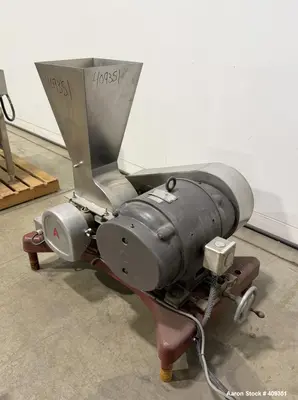

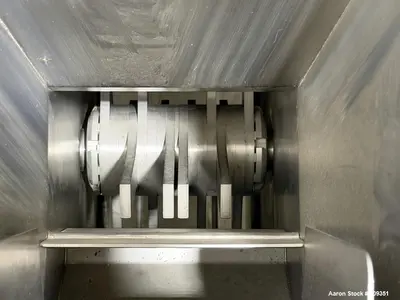

This used Fitzpatrick Fitz-Mill Model D is a proven, heavy-duty milling and size reduction solution widely used across pharmaceutical, chemical, and food industries. The unit features a 5" x 6" feed throat with top hopper feeding into an approximately 12" diameter cutting chamber equipped with (16) fixed blades for consistent and controlled particle size reduction.

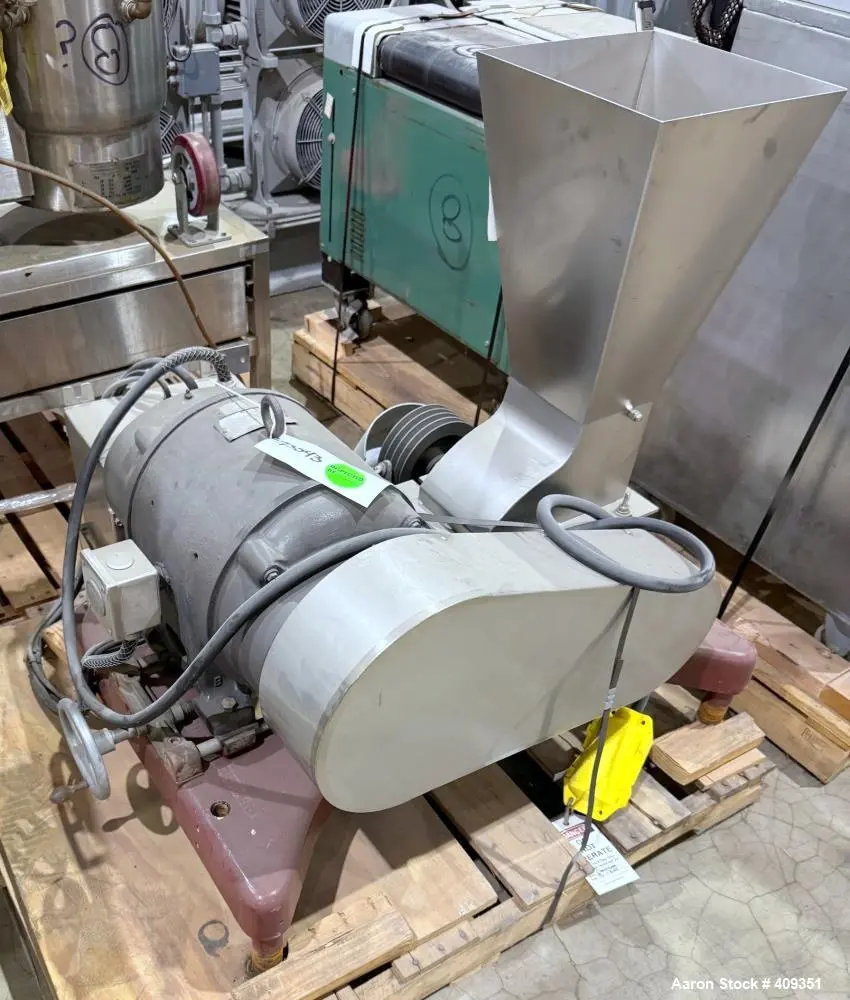

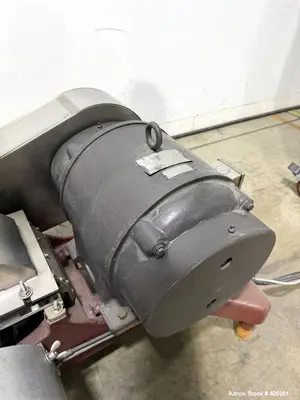

Powered by a 7-1/2 HP, 1750 RPM motor with dual voltage capability (220/440V, 3-phase), this FitzMill includes a GS2 AC variable frequency drive, allowing operators to fine-tune milling speed for different materials and throughput requirements. Mounted on a robust carbon steel frame, this unit is well suited for industrial production environments.

Specifications

Manufacturer: Fitzpatrick

Model: Fitz-Mill Model D

Feed Throat Opening: 5" x 6"

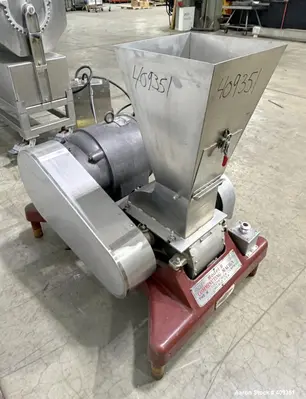

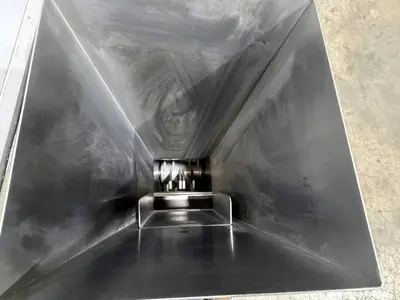

Feed Configuration: Top hopper

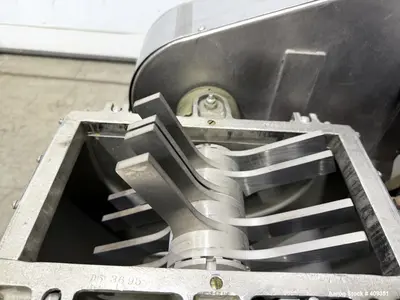

Cutting Chamber Diameter: Approx. 12"

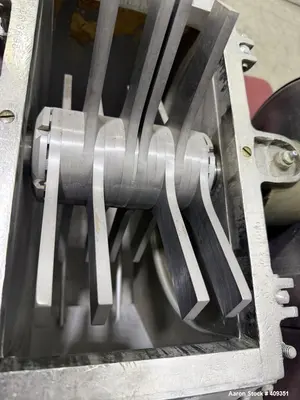

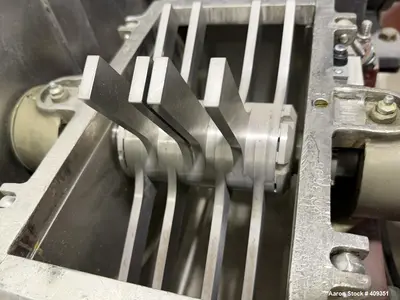

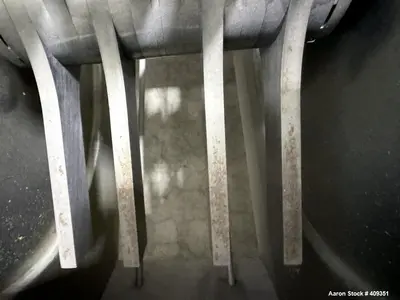

Blades: (16) fixed blades

Blade Size: 4" long x 1" wide x 1/4" thick

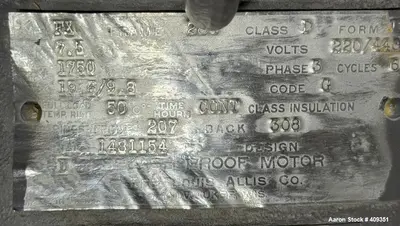

Motor Power: 7.5 HP

Motor Speed: 1750 RPM

Electrical: 3 Phase / 60 Hz / 220–440 Volt

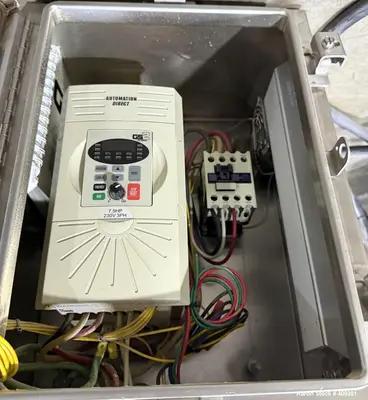

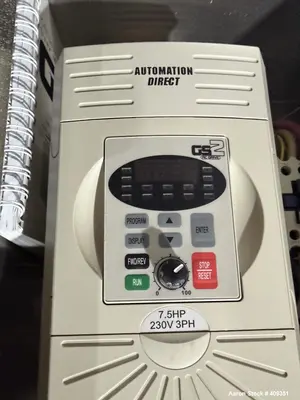

Drive: GS2 AC Drive (Variable Frequency Drive)

Frame: Carbon steel

Machine Type: Hammer mill / Comminuting mill

Applications

Pharmaceutical powder milling

Chemical size reduction

Food ingredient grinding

Nutraceutical processing

Cosmetic powder production

Industrial material reduction

What Might This Be Used For

Milling tablets and granules

Reducing particle size of dry chemicals

Processing food powders and spices

Grinding nutraceutical ingredients

Reclaiming off-spec product

Pre-processing materials for blending

Products This Machine Is Commonly Used For

Active pharmaceutical ingredients (APIs)

Vitamins and supplements

Food powders

Spices and seasonings

Chemical compounds

Detergent powders

Cosmetic powders

Minerals

Agricultural additives

Industrial resins
