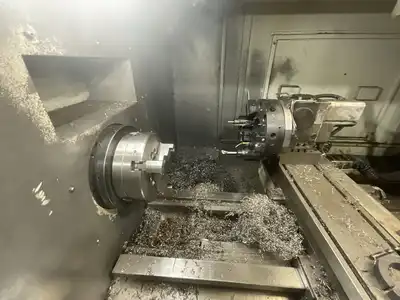

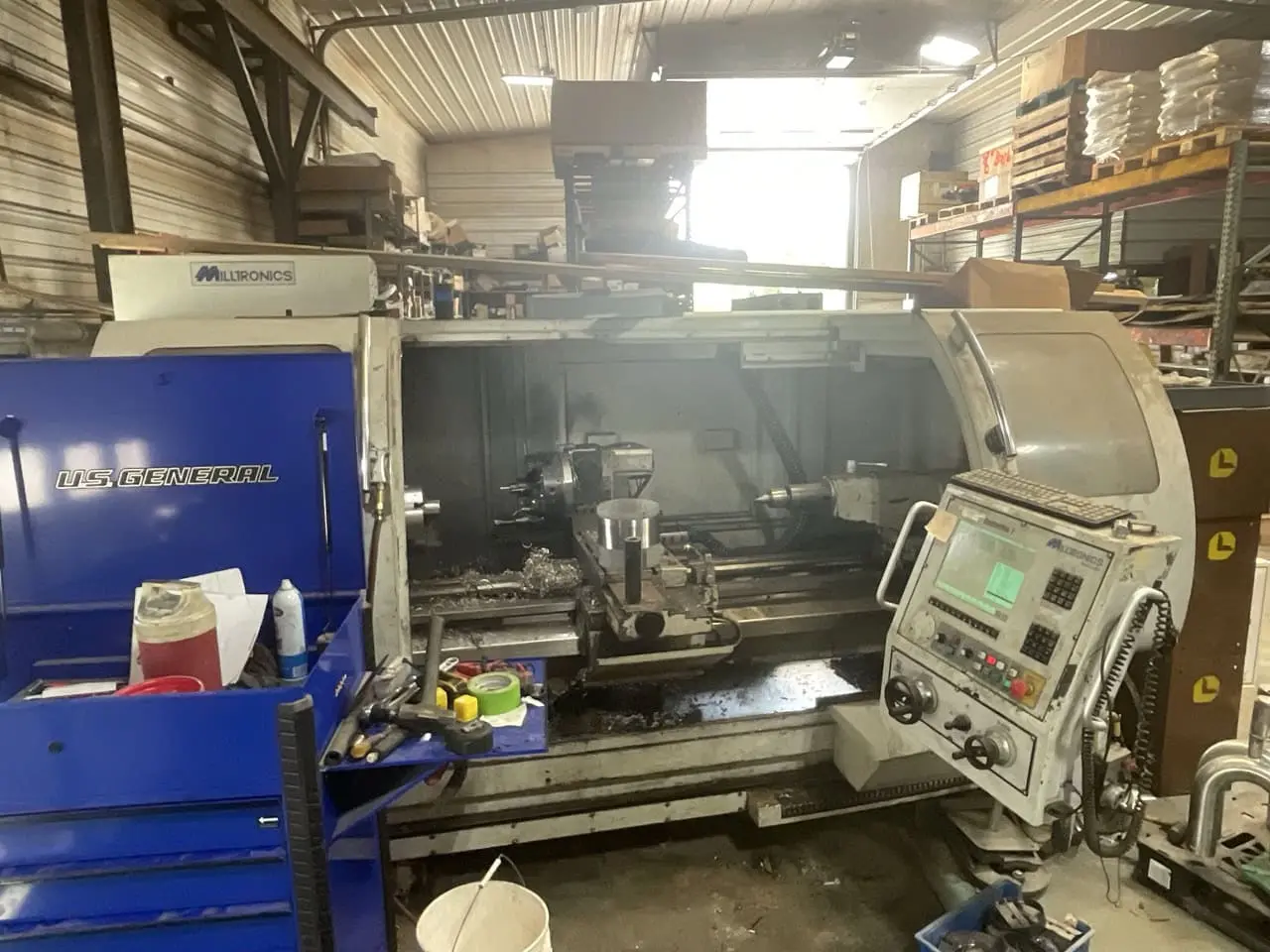

USED 2006 MILLTRONICS ML-22

Swing Over Bed: 23″
Swing Over Cross Slide: 12.1″
Swing Over Gap: 30.3″
Gap Distance: 12.75″
Distance Between Centers: 60″
X-Axis Travel: 13″
Z-Axis Travel: 63.5″
Spindle Bore: 3.22″
Spindle Nose: A1-8
Spindle Speed Range: 2,000 RPM
Spindle Motor: 24/15 HP

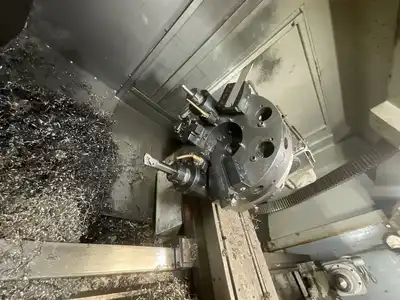

Turret: 8-station
Tailstock Quill Diameter: 3.94″
Tailstock Quill Travel: 6″
Tailstock Quill Taper: MT5
Rapid Traverse Rate (X/Z): 500 IPM
Maximum Cutting Feed Rate: 100 IPM
Positioning Accuracy: ±0.00025″
Repeatability: ±0.0002″
Approx. Machine Dimensions: 143″ × 83″ × 83″
Approx. Machine Weight: 10,000 lbs
Equipped With:

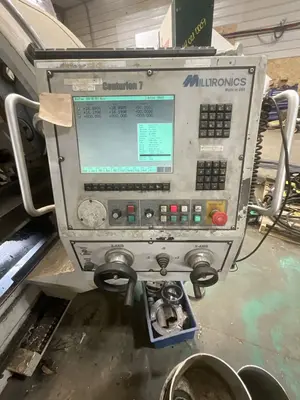

Milltronics Centurion 7 Control
