USED ESCHER WYSS WS 2359

System

🏭 Manufacturer Information

Manufacturer: Escher Wyss

Model / Type: ZW 2350

Equipment Type: Double Drum Dryer

Condition: Used

Previous Application: Skimmed milk concentrate (≈45% dry matter)

⚙️ Description

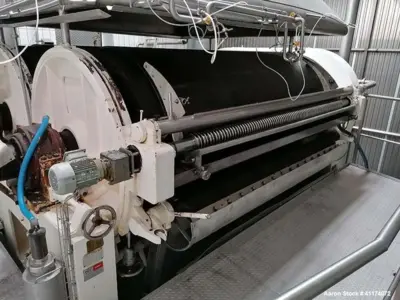

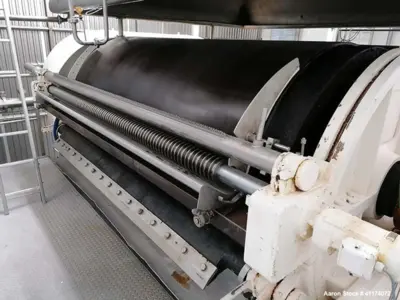

This Used Escher Wyss Double Drum Dryer, Type ZW 2350, is a high-capacity industrial drying system engineered for continuous drying of liquid, slurry, and paste-like products into flakes or powders. With a throughput capacity of up to 1,000 kg/hr (2,200 lbs/hr), this dryer is well suited for large-scale food, dairy, chemical, and specialty material processing.

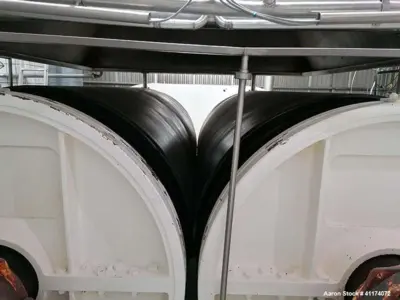

The system features twin large-diameter drying drums measuring 1,500 mm (58.5") diameter x 2,500 mm (97.5") straight side, operating at approximately 26 RPM. Heat is supplied via steam, with heating pressure up to 8 bar (120 PSI) and operating steam pressure of 4 bar (60 PSI), providing efficient and uniform thermal transfer.

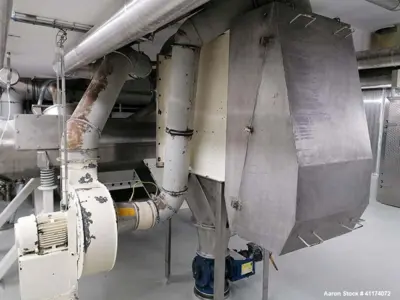

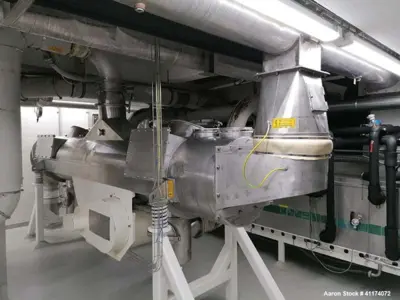

This offering is complete with supporting infrastructure, including a blower, dust collector, and sifter with 5-station sack filling unit, making it a near turnkey solution for industrial drying and packaging operations.

📏 Specifications

Model: ZW 2350

Dryer Type: Double drum dryer

Throughput Capacity:

Up to 1,000 kg/hr (2,200 lbs/hr) (product dependent)

Drum Diameter: 1,500 mm (58.5")

Drum Face Width (Straight Side): 2,500 mm (97.5")

Drum Speed: 26 RPM

Heating Method: Steam

Max Heating Pressure: 8 bar (120 PSI)

Operating Steam Pressure: 4 bar (60 PSI)

Ancillary Equipment Included:

Blower

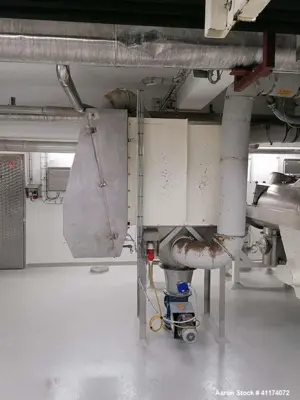

Dust collector

Sifter

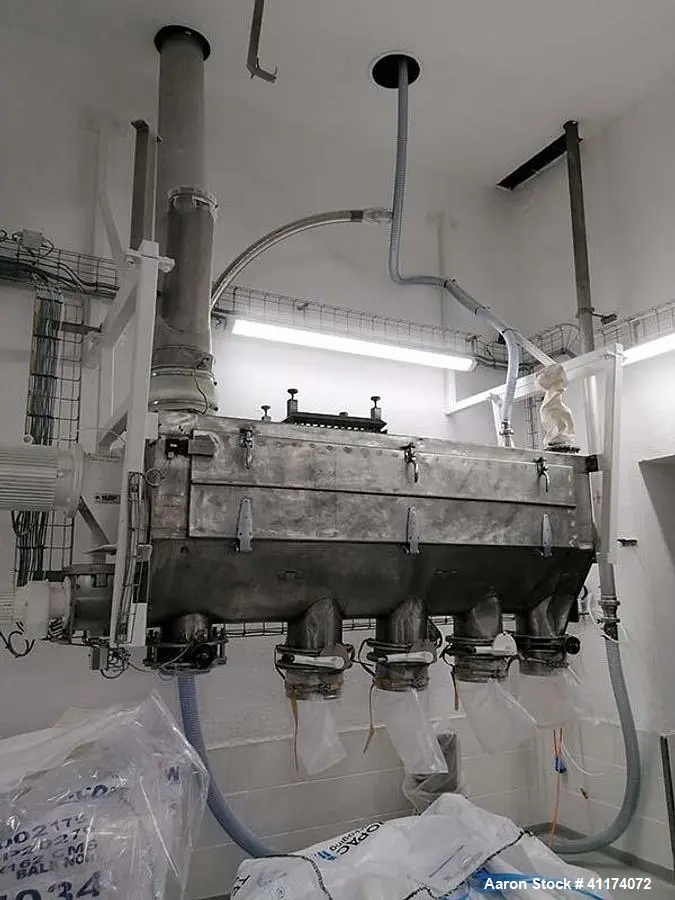

5-station sack filling unit

Additional interconnecting infrastructure

🧩 Applications

Dairy powder and milk solids processing

Food ingredient drying

Chemical and specialty chemical drying

Starch, protein, and carbohydrate processing

Nutraceutical and supplement production

Animal feed and feed additive drying

Biomass and organic material processing

Industrial slurry and paste drying

Large-scale continuous drying operations

Powder and flake production lines

⚗️ What This Might Be Used For

Drying concentrated liquids into flakes or powders

High-capacity continuous drying operations

Processing heat-stable food and chemical products

Converting slurries and pastes into dry solids

Integrated drying and bagging operations

📦 Products This Is Commonly Used For

Skimmed milk powder

Dairy concentrates

Starches and modified starches

Proteins and plant-based ingredients

Chemical slurries

Industrial pastes

Nutraceutical ingredients

Feed additives

Specialty powders

Process intermediates
