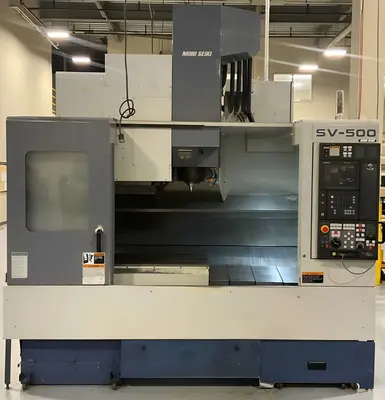

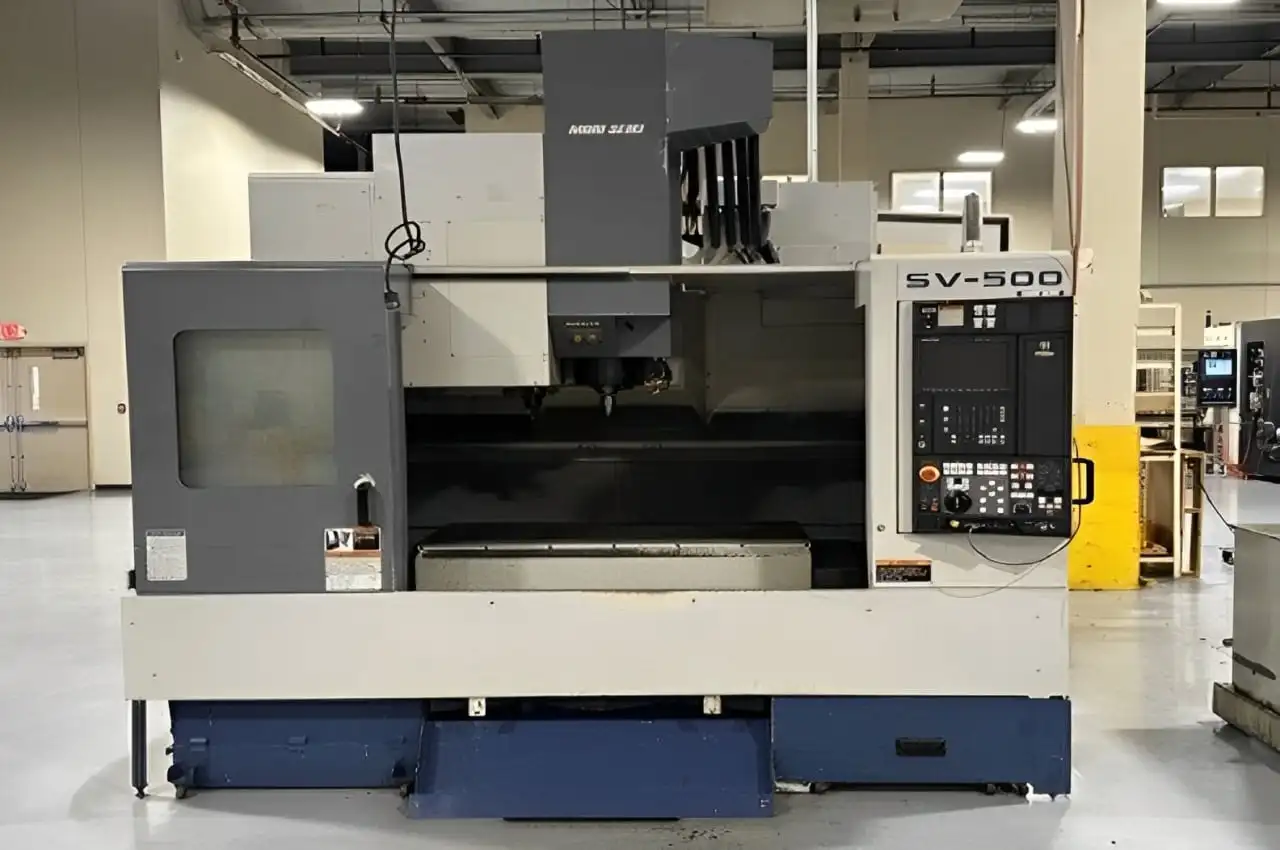

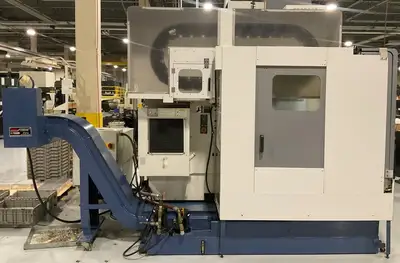

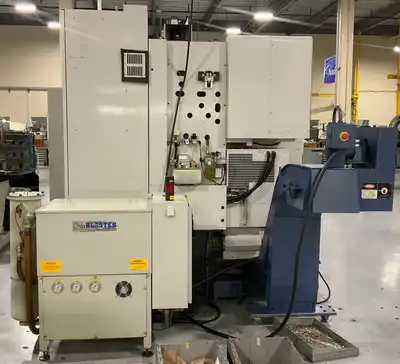

USED 1998 MORI SEIKI SV 500 B

Table Size
43.3″ x 23.6″
Table Load Capacity
2,200 lbs
X-Axis Travel (Longitudinal)
31.5″
Y-Axis Travel (Cross)
20.1″
Z-Axis Travel (Vertical)
20.1″
Max. Tool Diameter / Length
4.9″ / 11.8″
Spindle Taper
BT #40
Spindle Speed
10,000 RPM
Spindle Motor
30 / 25 HP (30 min / cont.)
Table Top to Spindle Nose
5.9″ – 26″
Tool Magazine Capacity
30 Positions (ATC)
Tool Change Time (chip to chip)
3.1 seconds
Rapid Traverse Rates
1,259 IPM
Machine Dimensions (L x W x H)
102″ x 93″ x 113″
Machine Weight
17,120 lbs
