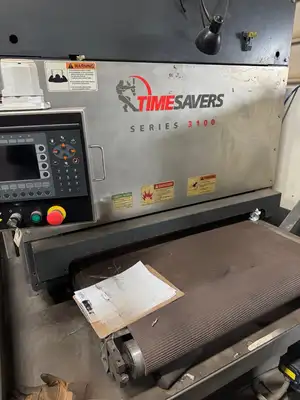

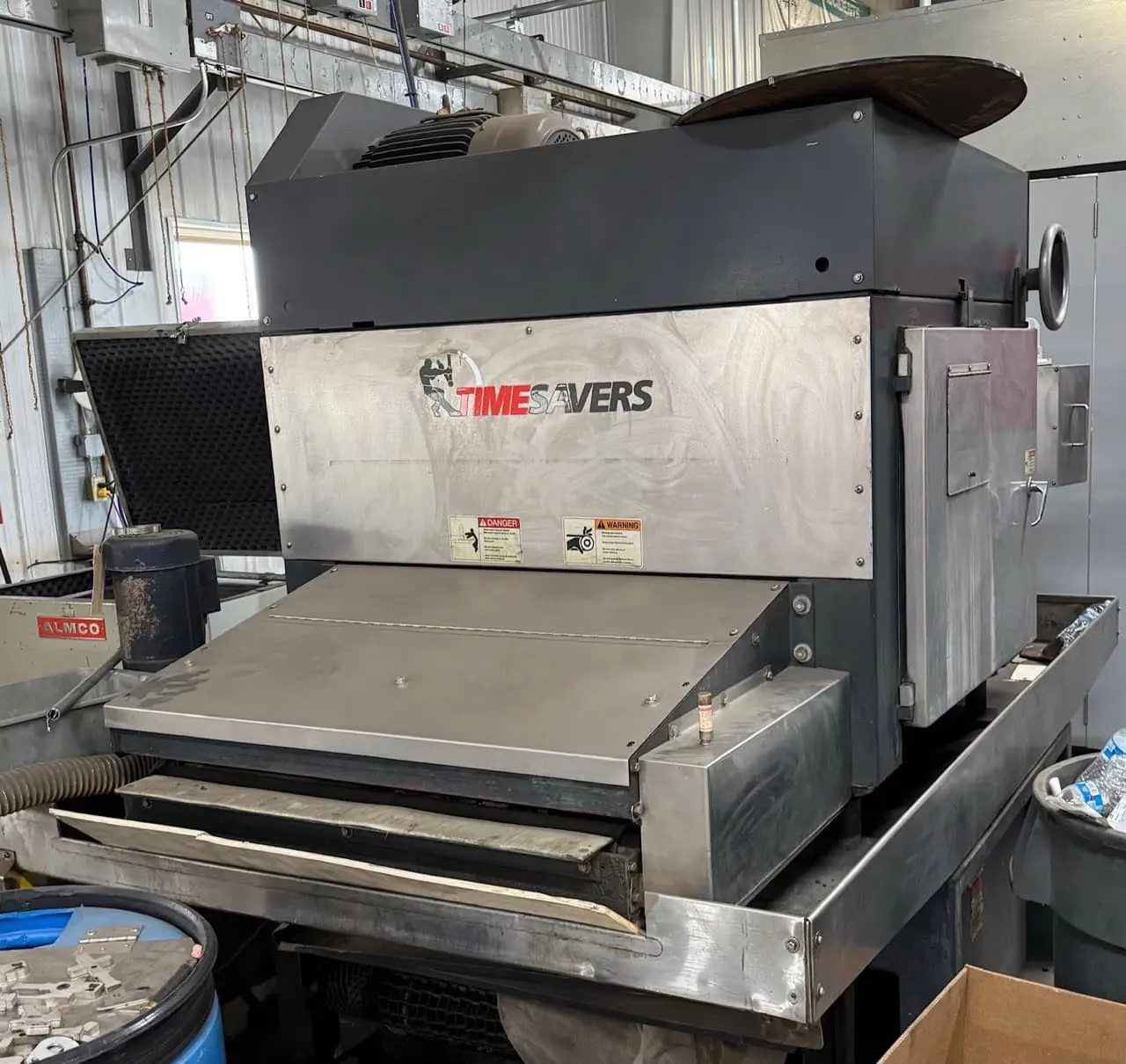

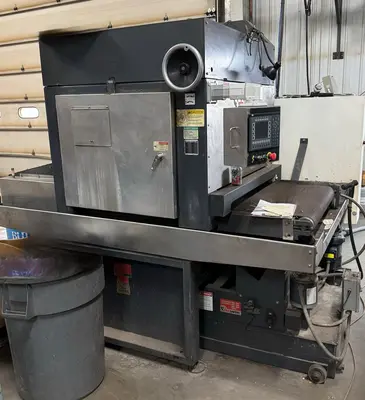

USED 2004 TIMESAVERS 3121-13-04

Working Width: 36”
Belt Width: 37”
Belt Length: 60”
Feed Belt Speeds: 15 – 45 F.P.M.
Material Thickness (Pass Line): 0-8”
Heads: (2) Drum & Brush
Drum Diameter: 6”
Brush Diameter: 6”
Knife Dryer Motor: 5 H.P.
Coolant Motor: ¼ H.P.
Coolant Belt Motor: 1 H.P.
Conveyor Motor: 2 H.P.
Drum Motor: 20 H.P.
Brush Motor: 15 H.P.
Electric: 460 Volt / 3 Phase / 60 H.Z
Machine Weight: 8500 Lbs.
Equipped With:
-Wet Base Style Double Infeed & Outfeed Hold-Down Rolls
-Air Knife Dryer Conveyor Belt Tracking
-Built In Coolant System With Paper Filtration
