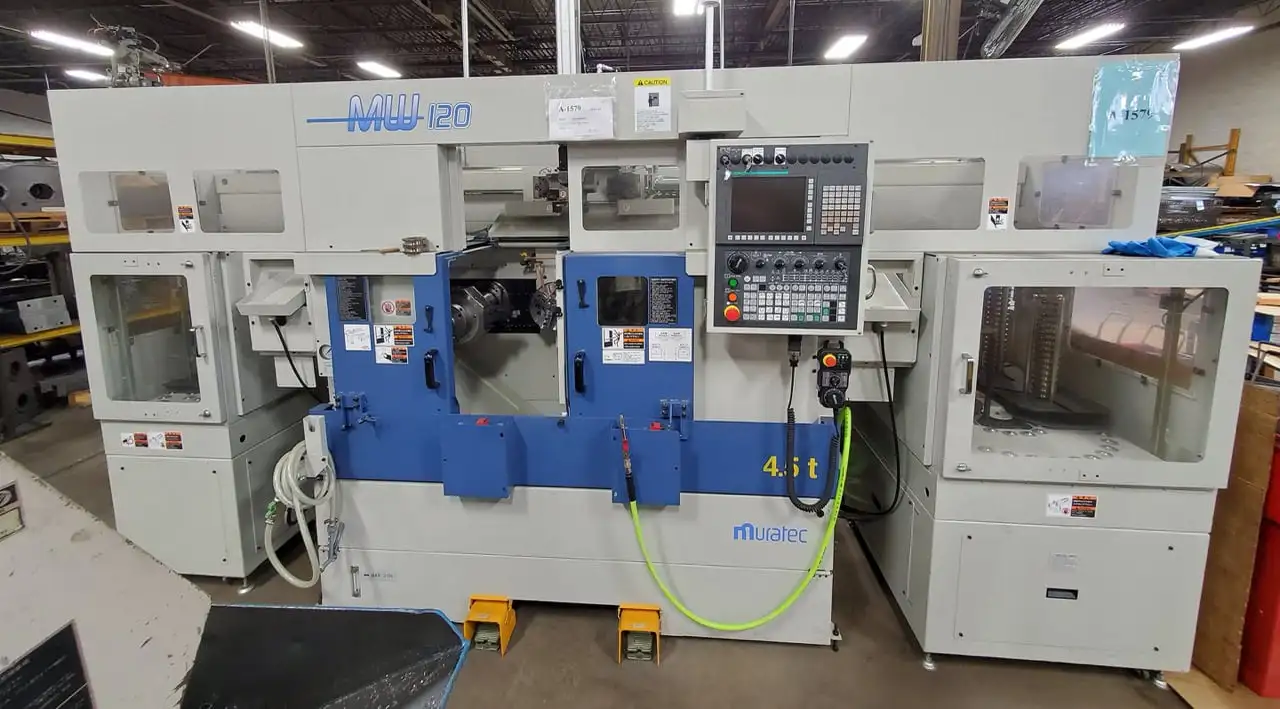

USED 2018 MURATEC MW120

Distance Between Spindles: 13.39″
Max. Swing: 11.61″
Standard Chuck Size: 6/8″
Turning Diameters: 4.72″ Nominal, 9.440″ Max.
Turning Lengths: 3.150″ Nominal, 3.94″ Max.
Number of Turret Stations: 8
X-Axis: 5.12″ Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71″ Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 – 4500 RPM
Spindle Noses: A2-5, Bore 1.850″
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75″ Square, 1.570″ Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37″ x w 136.22″
Equipped With:

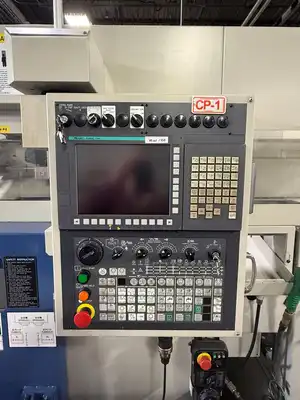

Fanuc 31iTB CNC Controls
Overhead Gantry Loader
LNS Chip Conveyor
Remote MPG

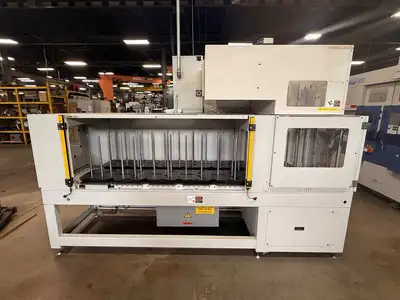

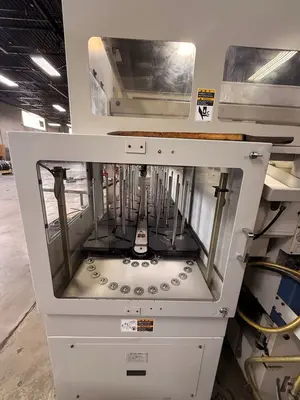

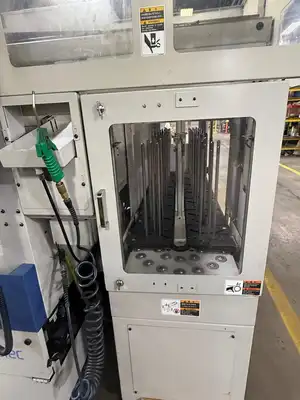

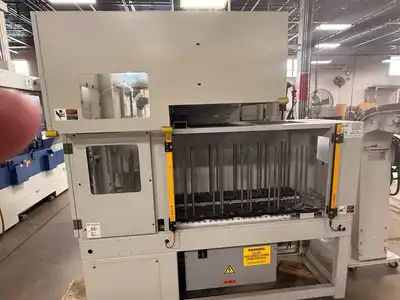

(14) Pallet Stocker Feeder Table
