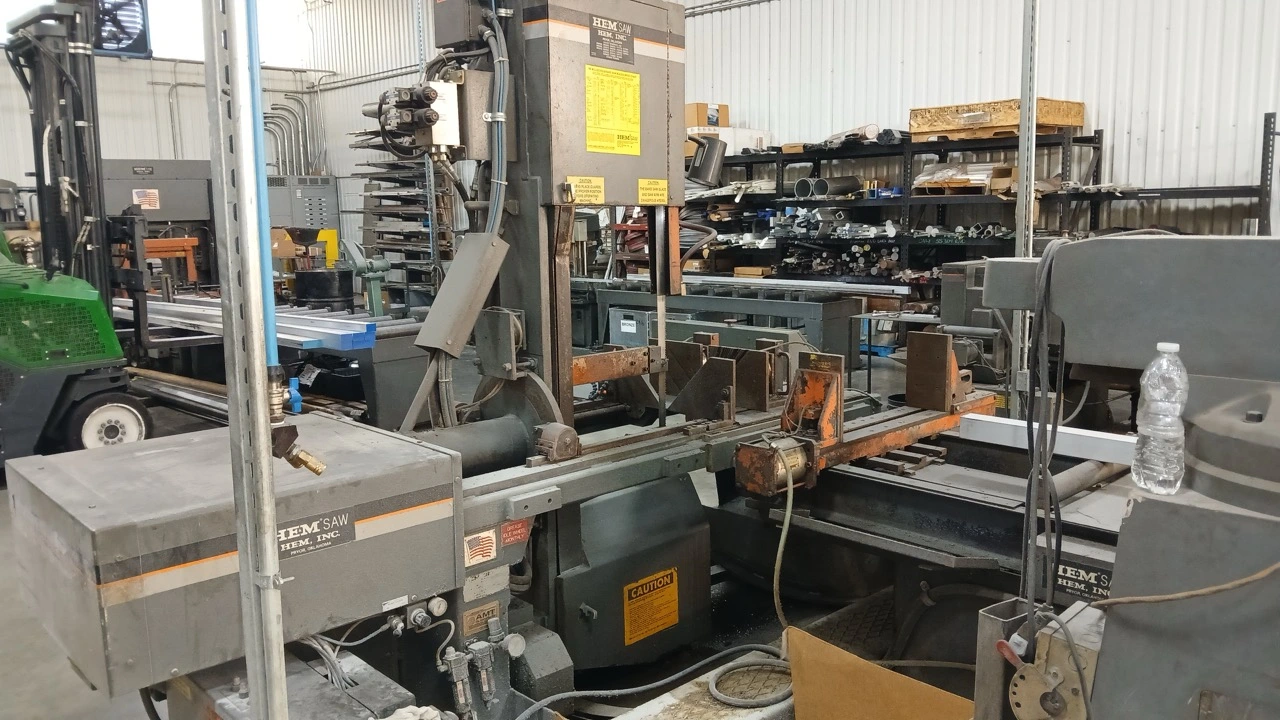

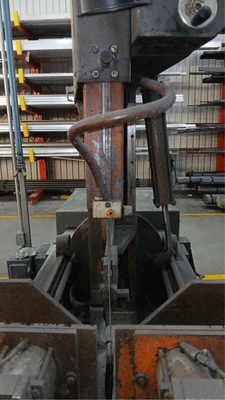

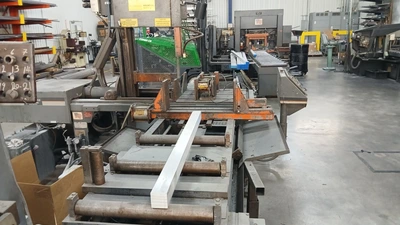

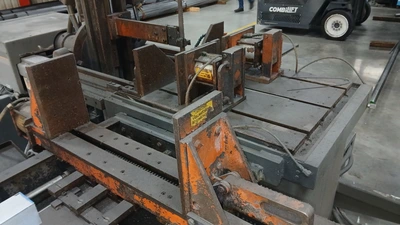

USED 2004 HEM V100LA-3

Capacity: 18” x 22“

Capacity at 90 degrees: 18″ x 20.753
Mitering at 45 degrees: L18″x 4.253
Mitering at 45 degrees: R18″x 14″
Mitering at 60 degrees: L18″x 9.75″
Mitering at 60 degrees: R18″X 6.75″
Bar-feed multiple index: 0 to 483
Blade dimensions: 15’0″ x 1.25″ x .042″
Motor: 5 HP
Hydraulic motor: 2 HP
Volts: 220 / 440
Phase: 3
Approximate dimensions: 111″ x 120″ x 90″ high
Approximate weight: 5,500 lbs.
