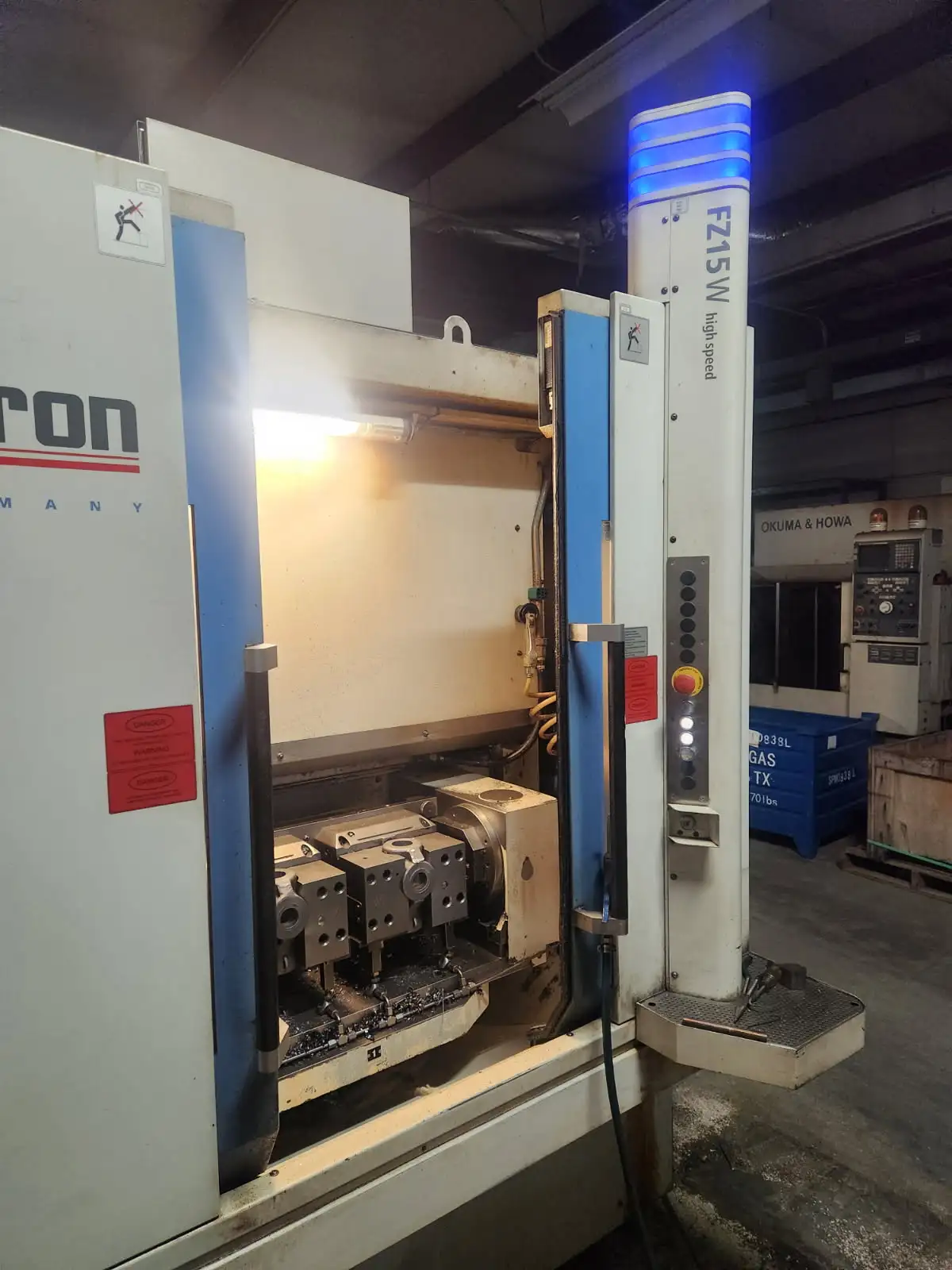

USED 2012 CHIRON FZ15W

X-Axis Travel: 21.65″
Y-Axis Travel: 15.75″
Z-Axis Travel: 16.73″
Max Spindle Speed: 10,500 RPM
Spindle Motor: 50 HP
Spindle Taper: CAT 40
Tool Capacity: 20 Tools (Umbrella)
Table Size (Each Side): 26″ × 15.75″
Table Load Capacity (Per Side): 660 lbs
Workpiece Swivel Table: 0° / 180°
Max Table Weight Difference: 220 lbs
Drilling Capacity (Steel): 1.42″
Tapping Capacity: M24
Milling Capacity (Steel): 18 in³/min
Equipped With
Fanuc 31i A5 5-Axis CNC Control
Workpiece Swivel Table With Center Divider
Digital AC Servo Direct Drives
Thermodrive Temperature Compensation

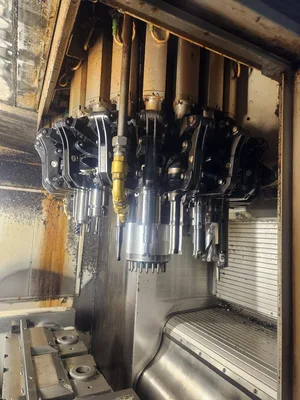

Automatic Tool Changer (20 Station Umbrella)
High Pressure Coolant
Ethernet And RS-232C Communication
Rigid Tapping
