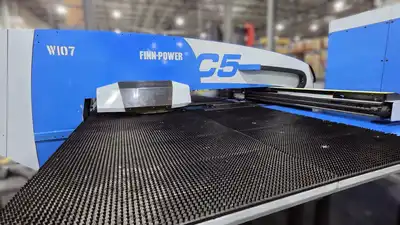

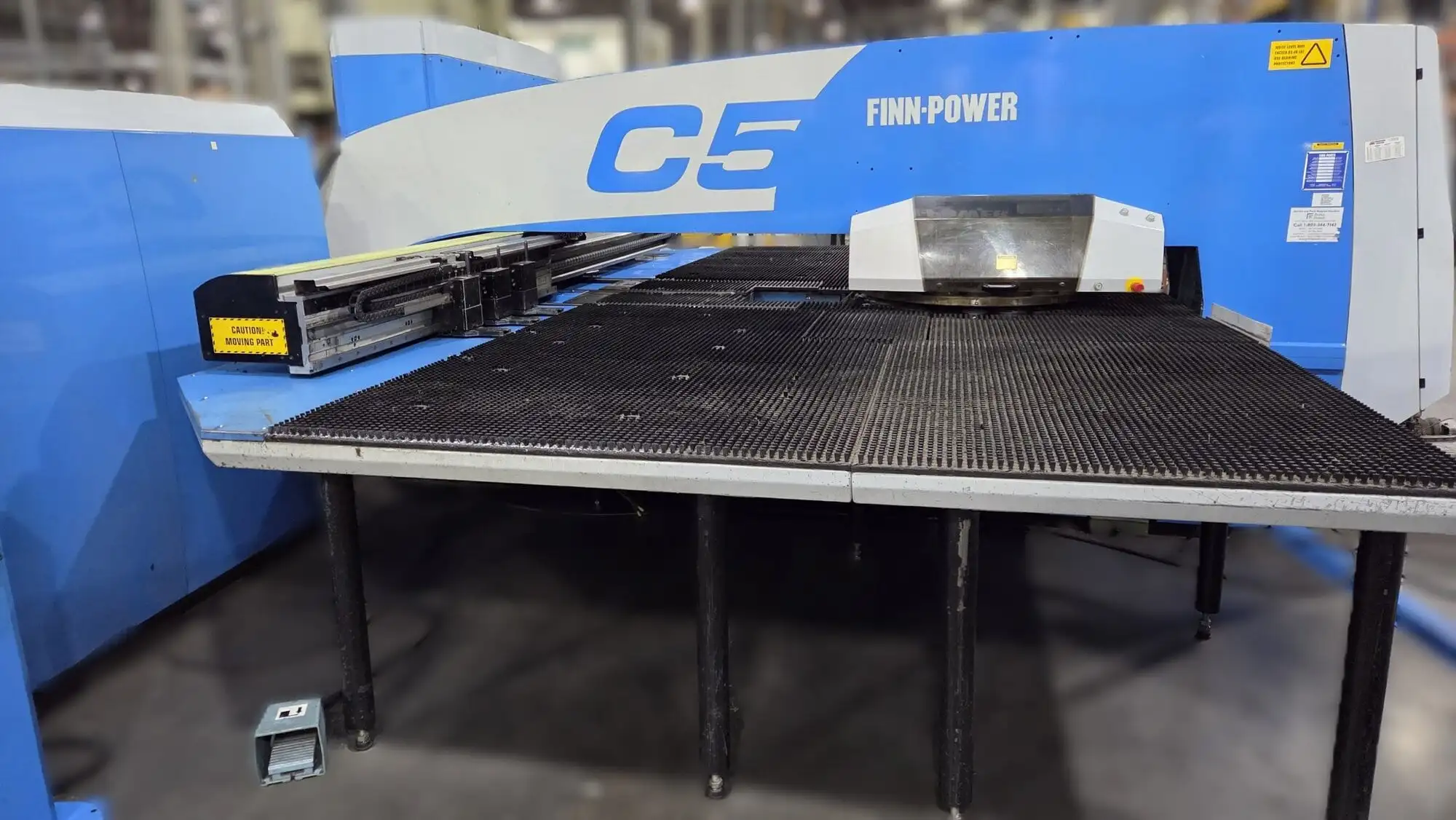

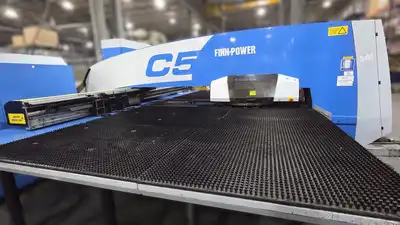

USED 2008 FINN-POWER C5

Capacity: 33 Ton

Capacity: 33 Ton
Maximum Sheet Thickness: 5/16″
Maximum Sheet Size:
96″ x 48″ (w/o Repositioning)
Maximum Traverse: 101.7″ x 51.8″
Maximum Sheet Weight: 440 Lbs.
Turret Configuration (Thick): 20 Stations Turret Speed: 24 RPM (Bi-Directional)
Maximum Hit Rate:
420 HPM (1″ Increment Movement)
Hit Rate (Continuous Nibble Mode):
1,100 SPM
Maximum Table Traverse Speeds: X-Axis – 3540 IPM; Y-Axis – 2352 IPM
Maximum Punch Diameter: 3.5″
Equipped With:
Siemens Sinumeric 840D CNC Control w/CRT
(8) Auto-Index Stations
Multi-tool compatible for (2) auto-index and (1) keyed station
Transformer
