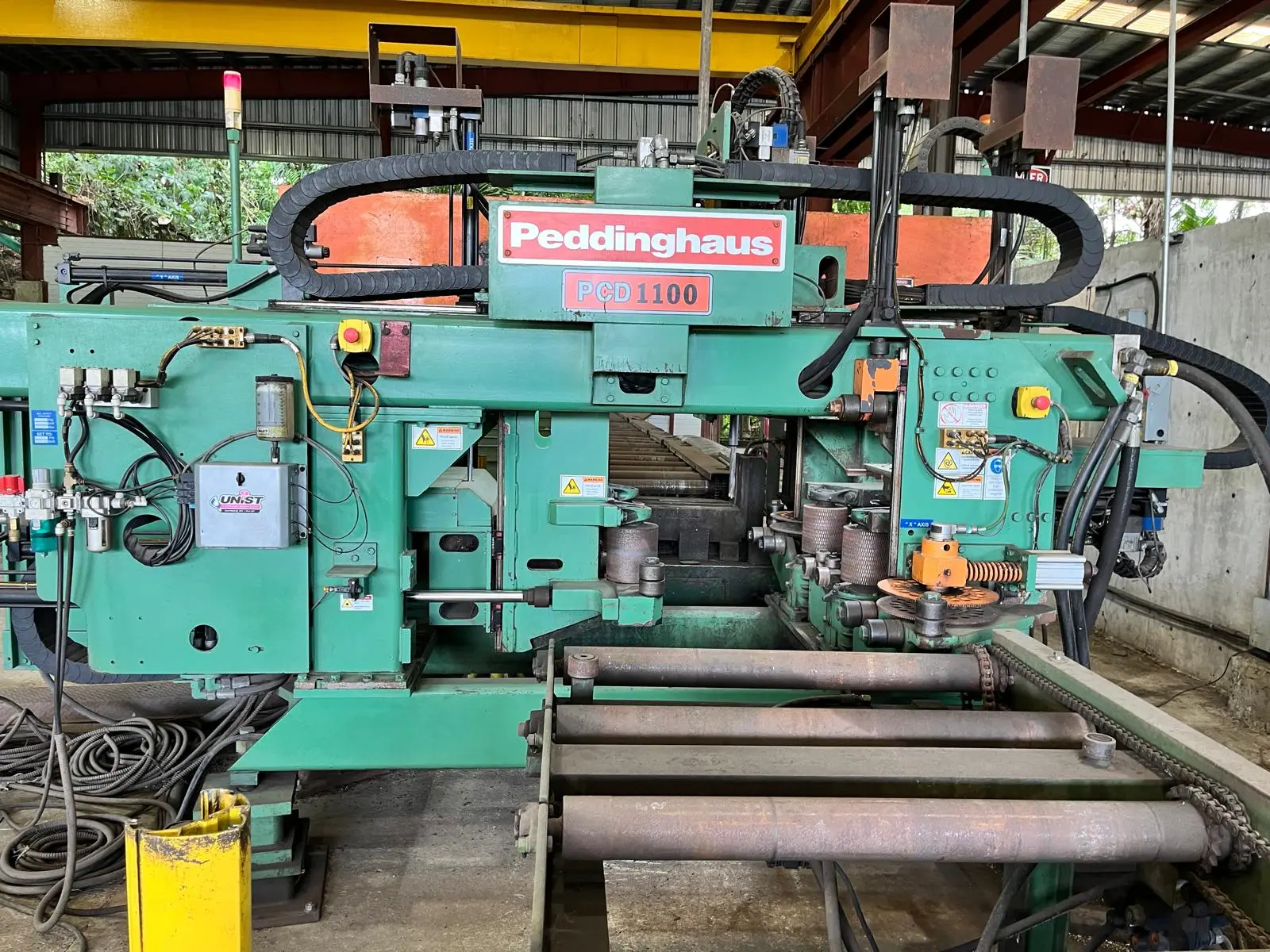

USED 2018 PEDDINGHAUS PCD-1100/3B

Drill Speed: Variable, up to 850 RPM
Maximum Drill Diameter: 1-9/16″
Drill Power (Per Spindle): 13.5 HP
Minimum Material Thickness: 1/8″
Maximum Material Thickness: 18″
Minimum Material Width: 3″
Maximum Material Width: 43.3″
Minimum Material Length: 62″
Maximum Workpiece Weight: 18,000 Lbs.
Maximum Length / Weight: 300 Lbs. / Ft.
Maximum Length Of Miter: 31″
Rapid Traverse Feed Rate: 192 in/min
Number Of Spindles: 3
Drill Heads: Three (3) Multispindle CNC Drill Heads
Drill Tooling Type: #4 Morse Taper
Machine Weight: 10,500 Lbs.
Equipped With:

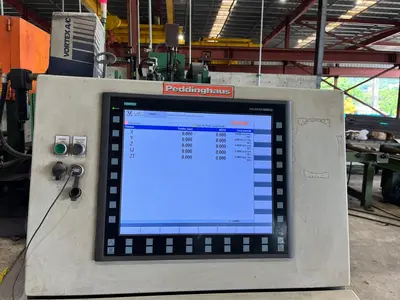

Siemens CNC Control System
Raptor Software/PC Integration

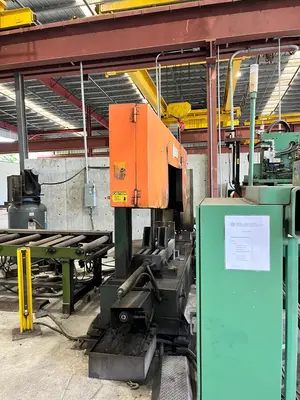

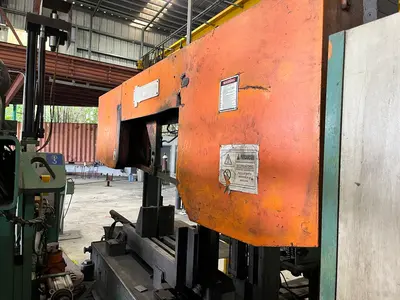

Fully Operational Horizontal Band Saw
60′ Motorized Infeed/Outfeed Conveyor
17′ Motorized Transfer Table
