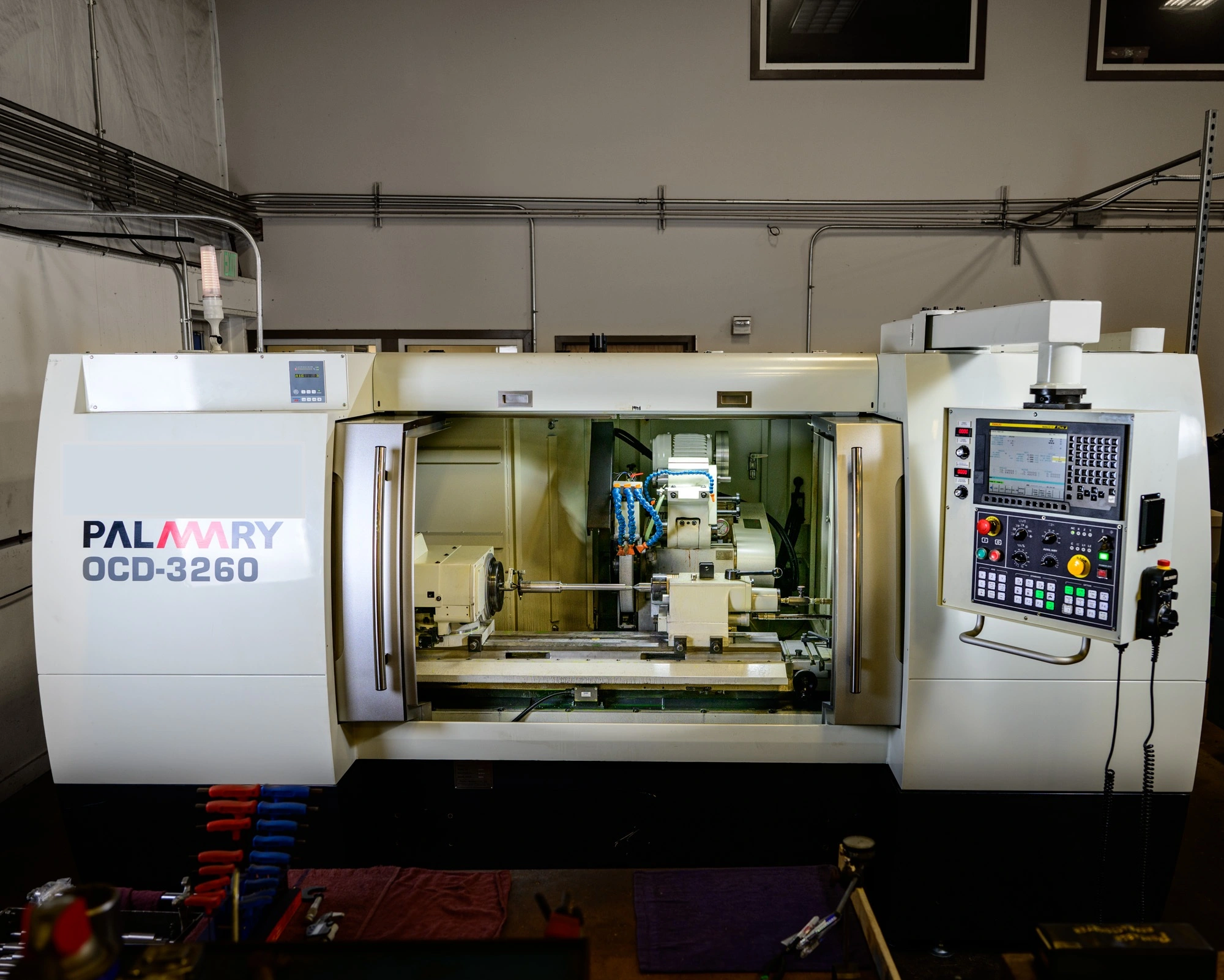

USED 2020 PALMARY OCD-3260

Distance Between Centers: 23.62″
Swing Over Table: 12.60″
Max. External Grinding Diameter: 11.81″
X-Axis Max. Stroke: 10.24″
Z-Axis Max. Stroke: 26.18″
X-Axis Rapid Feed Rate: 32.81 Ft/min
Z-Axis Rapid Feed Rate: 32.81 Ft/minMin.
Input Increment: 0.00004″ (Or 0.000004″ In Fine Mode)
Max. Grinding Wheel Outer Diameter: 16″
Grinding Wheel Width/Thickness: 2″ To 3″
Grinding Wheel Inner Diameter (Bore): 5″
Wheel Speed: 1783 Rpm
Max. Load Between Centers: 220.46 Lbs
Net Machine Weight: 7936.64 Lbs
Equipped With:
Fanuc 0i-TF Plus CNC Control
Touch Probe
Swing Down ID Grinding Attachment
Magnetic / Paper Coolant Filtration System
All Available Manuals
