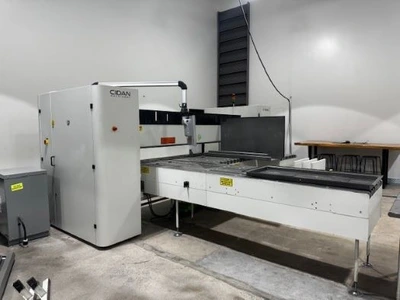

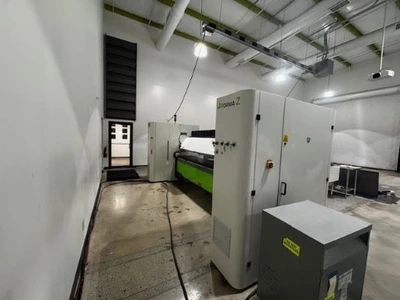

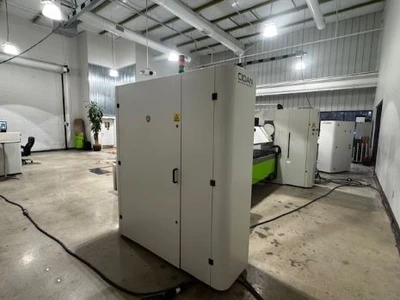

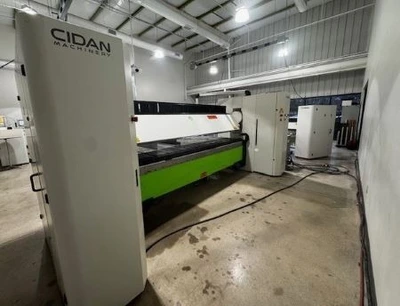

USED CIDAN FORMA Z 30

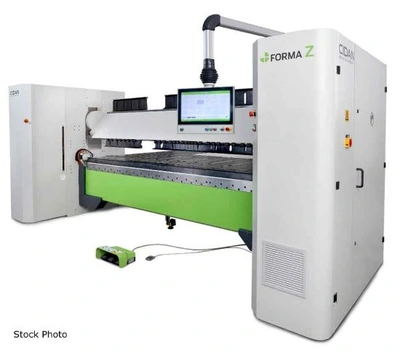

CIDAN (NEW) MODEL FORMA Z 30 UP/DOWN FOLDER

126" FOLDING LENGTH
11 GAUGE MILD STEEL CAPACITY
AUTOMATIC COMBI-BEAM W/8" HIGH SEGMENTED TOOLING
MULTI-FOLD TOOLING
- SEGMENTED FOLDING AND LOWER BEAM TOOLING
25MM FOLDING BEAM TOOLING
PROLINK Z 21.5" CONTROL
61" AGS BACKGAUGE

FEATURES
- COMBI BEAM WITH SHARP TOOL AND 8" HIGH DIVIDED TOOLING W/11 GA CAPACITY
- MILTI-FOLD TOOLING -- SEGMENTED FOLDING BEAM TOOLING
- AUTOMATIC ECCENTRIC TRANSITION FOR FASTEST CHANGEOVER
WHEN CHANGING FOLDING BEAM TOOLS
- ABILITY FOR DUAL SIDED BOX TOOLS ON COMBI TEAM
- CNC ADJUSTMENT OF FOLDING BEAM
- CNC ADJUSTMENT OF LOWER BEAM
- MATERIAL SENSING ON CLAMPING BEAM
- CNC LOCKING OF HIGH DIVIDED TOOLING AND FOLDING BEAM TOOLING
- PROLINK Z GRAPHIC 21.5" CONTROL - EASIEST CONTROL ON THE MAREKT
- SAFETY LASER CURTAIN FOR FOLDING SIDE OF MACHINE
- MOST DURABLE BACKGAUGE ON MARKET
- ECCENRIC CLAMPING BEAM DRIVE FOR 35 TONS OF CLAMPING PRESSURE
- OPTIMIZE SPEED - WHEN FOLDING BEAM COMES DOWN TO 80 DEGREES
UPPER BEAM STARTS TO COME UP
- 100% DUTY CYCLE AT CAPACITY OF MACHINE

OPTIONS INCLUDED
- VACUUM SUCTION FOR AUTOMATION FORMA Z 30 (2+2+2)
- HEIGHT ADJUSTABLE BACKGAUGE
- 15MM FOLDING BEAM TOOLS
- LEFT AND RIGHT SIDE EXTENSION 129.9"
- COLLAPISBLE CORNER TOOLS FOR UPPER BEAM
- AUTOMATIC LUBRICATION IN LIEU OF STANDARD GREASE FITTINGS
- SQUARING ARM 118"
- BALLCASTERS ON J-SHAPED BACKGAUGE
- REAR FOOT PEDAL
