The model heavy duty lathe has 4-1/8” spindle bore, D1-11 Camlock spindle head,19” wide bed and wide range of threading capacity. Coarse thread reaches ¼ “ TPI.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 24" | 609.6 mm |
| Distance Between Centers | 120" | 3,048 mm |
| Spindle Bore | 4.12" | 104.65 mm |
| Spindle Nose | D1-11 Camlock | D1-11 Camlock |
| Number Of Spindle Speeds | 18 | 18 |
| Range Of Speeds | 10-1,200 rpm | 10-1,200 rpm |
| Number of Inch Threads | 0.25-84 tpi, 60 threads | 0.25-84 tpi, 60 threads |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 220/440v | 220/440v |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

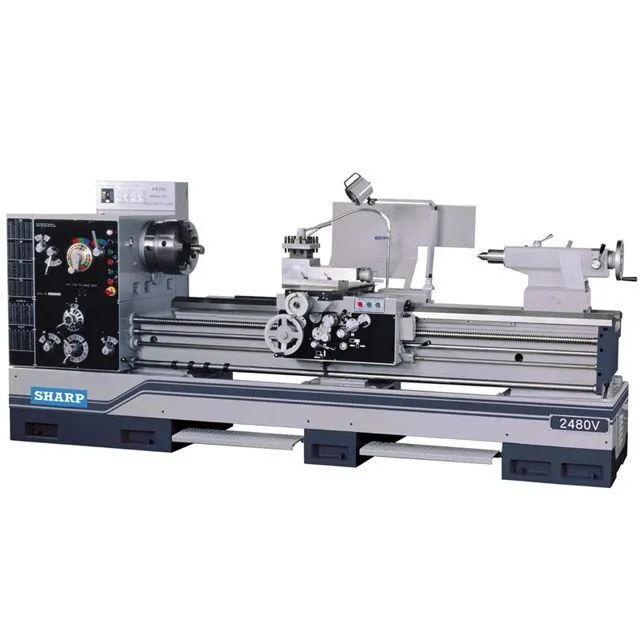

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Taper attachment
Roller jaw set (3 pcs) for steady rest
3-jaw chuck 12"
4-jaw chuck 16"
Follow rest
Quick change tool holder
Live center – (dual bearing) MT #5
Live center – MT #5
Micrometer carriage stop
Steady rest, 8-3/4" – 13", 11" – 17" ,14" – 21"
20 HP motor in lieu of 15 HP motor
Rear splash guard (80" / 120"/ 160" length)
CSA or UL electrical parts and wiring
Chuck guard with limit switch
Tool post guard
Spindle rear end cover
2 Types of optional leadscrew covers:
- Accordion type – that wrapped around the leadsrew
- Full coverage type – as shown in the photo that covers the entire front of the machine bed
