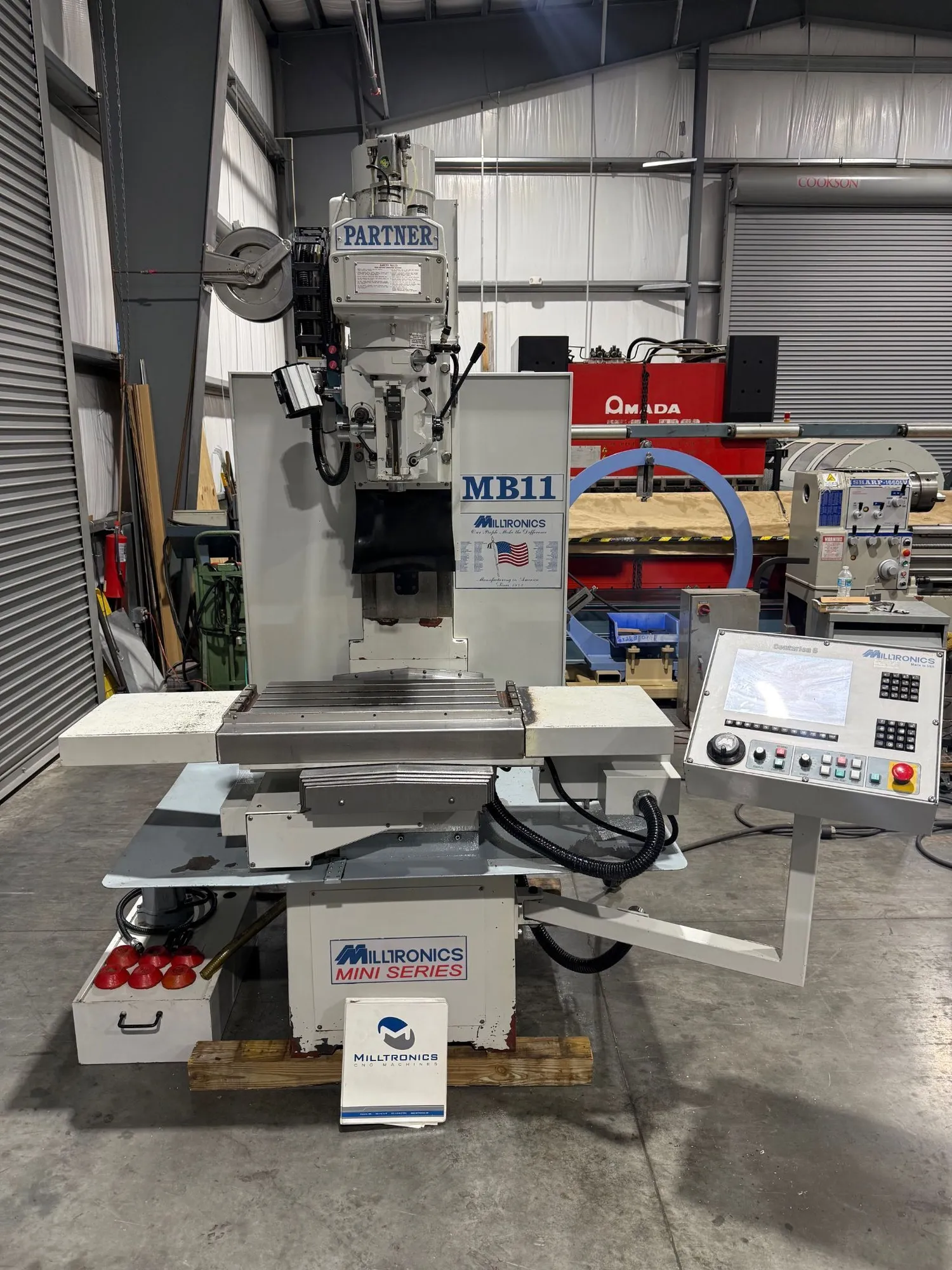

MILLTRONICS MB-11 3 Axis CNC Vertical Milling Machine 2002’ #8064
| Dimensions | 80” L x 82” W x 92”H | 80” L x 82” W x 92”H |
| Weight | 3500 Lbs. | 3500 Lbs. |
MILLTRONICS MB-11 3 Axis CNC Vertical Milling Machine 2002’ #8064
Reference # 8064
Model # MB-11
Serial # 7231
Year of manufacture- 2002’
Table size- 30” x 12”
Table load capacity- 750 Lbs.
X axis travel- 24”
Y axis travel- 12”
Z axis travel- 18’’
Quill travel- 5’’
Spindle taper- R-8
Spindle speeds- up to 4,500 R.P.M.
Head tilts- 180 degrees left & right
Centurion 6 CNC control
Pneumatic drawbar
Work light
Coolant tank & pump
5 H.P. spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 3,500 Lbs.
Machine dimensions- 80” L x 82” W x 92”H
Machine location- F.O.B. Sarasota, Florida
