USED 2013 EUROMAC ZX FLEX
Overview
Description

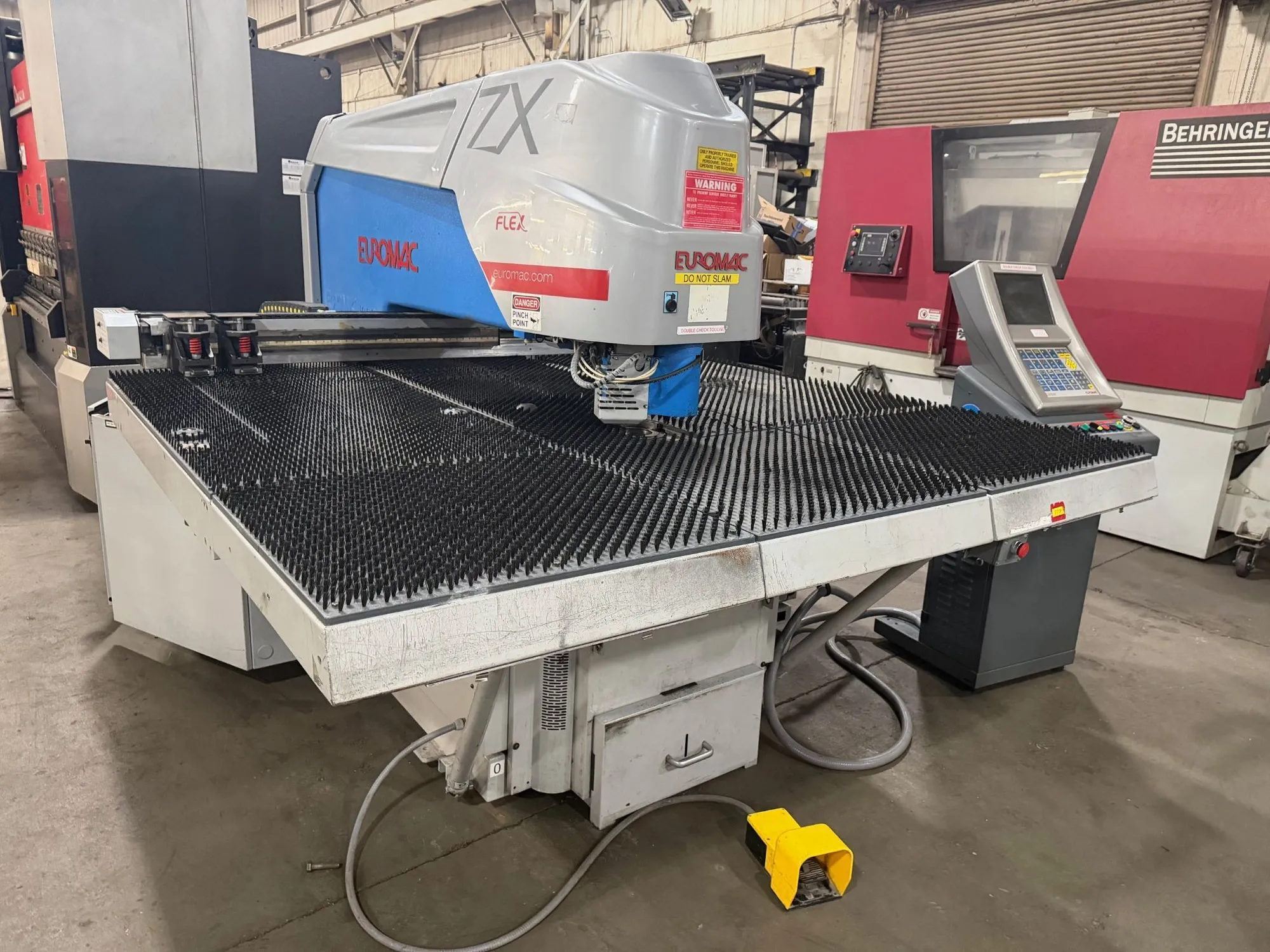

2013 Euromac ZX Flex 33-ton CNC punching machine with tool rotation. Features include 360-degree tool rotation, 393" auto X-axis repositioning, and Euromac Top Punch CNC software. Max hit rate: 375/min, nibbling rate: 1,000/min.
Specifications
| Tonnage | 33 T | 29.937 t |
|---|---|---|
| Control | CNC (Euromac) | CNC (Euromac) |
| Dimensions | 88" x 128" | 88" x 128" |
| Weight | 8800 | 8800 |
Brand: Euromac
Model: ZX Flex
Specifications:
Max punching force: 33 tons
Y-axis travel: 40"
X-axis travel: 50"
Automatic repositioning in X-axis: 393"
Stroke depth: .004" - 1.22"
Opening of clamps: .275"
Max. hit rate with .787" pitch: 375 per min.
Max. nibbling rate with .039" pitch: 1,000 per min.
Marking speed: 2,000 IPM
Material thickness range: .024" - .314"
Max. material thickness with optional clamps: .492"
Max. material weight with reduced axis speed: 330 Lbs.
Main motor: 11 H.P.
Dimensions: 88" x 128"
Weight: 8,800 Lbs.
Equipped With
Euromac Top Punch CNC software
Accepts up to a 10 station multi tool
360-degree bi-directional rotation of tooling
Brush table
