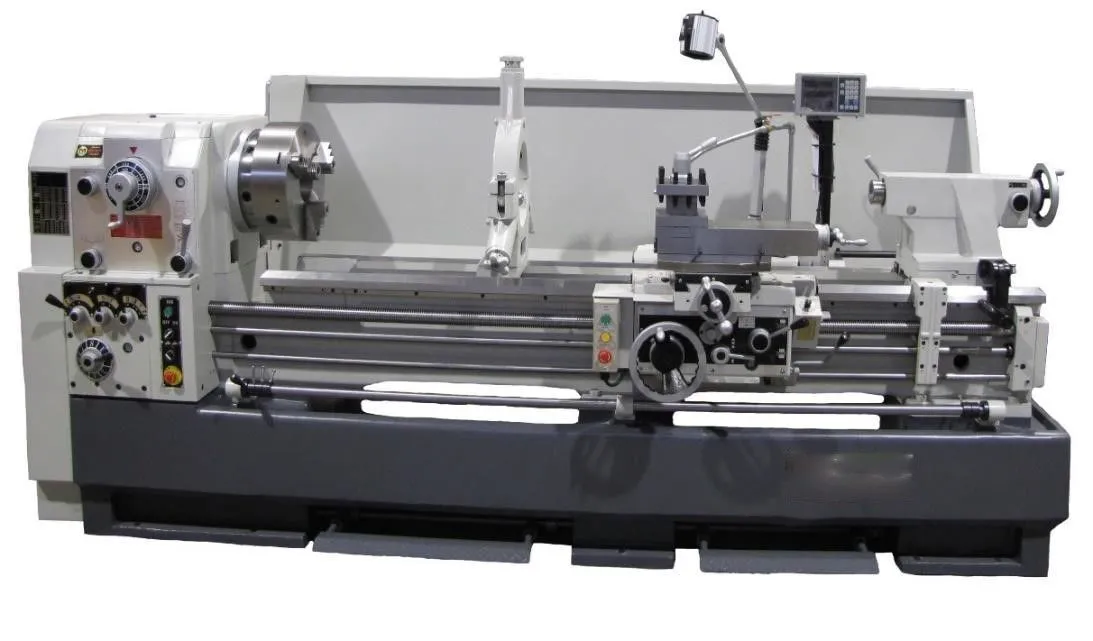

Merchant LA560 x 2000 heavy-duty lathe, 2024 model, features 22" swing over bed, 80" centers distance, spindle speeds of 13-1,200 RPM, and 15HP motor. Includes splash guard, leveling screws, and Fagor 2 digital readout system. Weight: 8,030 lbs,
| Swing | 22" | 558.8 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 4.06" | 103.12 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,200 RPM | 1,200 RPM |
| Swing Over Cross Slide | 13" | 330.2 mm |
Specifications (subject to buyer verification):
Bed Width: 15.75"
Total Travel of Top Slide: 7.5"
Cross Slide Travel: 16.5"
Swing Over Bed: 22"
Swing Over Cross Slide: 13"
Swing in Gap: 30.875"
Gap Width in Front of Face Plate: 10.625"
Heigh of Centers from Leg Bottom: 42"
Distance Between Centers: 80"
Number of Spindle Speeds: 12
Spindle Bore: 4.0625"
Type of Spindle Nose: D1-11
Taper of Spindle Bore & Center: MT No. 7 x No. 5
Range of Spindle Speeds: 13 - 1,200 RPM
Range of Inch Threads: 2 - 72
Range of Metric Threads: 0.2~14
Number of Feeds: 36
Range of Longitudinal Threads: 0.0014" ~ 0.039"
Range of Cross Feeds: Half of Longitudinal
Tailstock Quill Diameter: 2.9375"
Taper in Tailstock Quill: MT No. 5
Spindle Drive Motor: 15HP
Coolant Pump: 1/8HP
Weight: 8, 030 lbs
Equipped With (subject to buyer verification):
Splash Guard
Center Sleeve
Dead Center
Levelling Screws
Service Kit
Halogen Light
4 Way Tool Post
Steady Rest
Coolant
Taper Attachment
15" 3-Jaw Chuck
16" 4-Jaw Chuck
Fagor 2 Digital Readout System (Factory Installed)
Optional Equipment
40 Position Tool Post with 4 holders = $2,900
Large Steady Rest= Available on request
