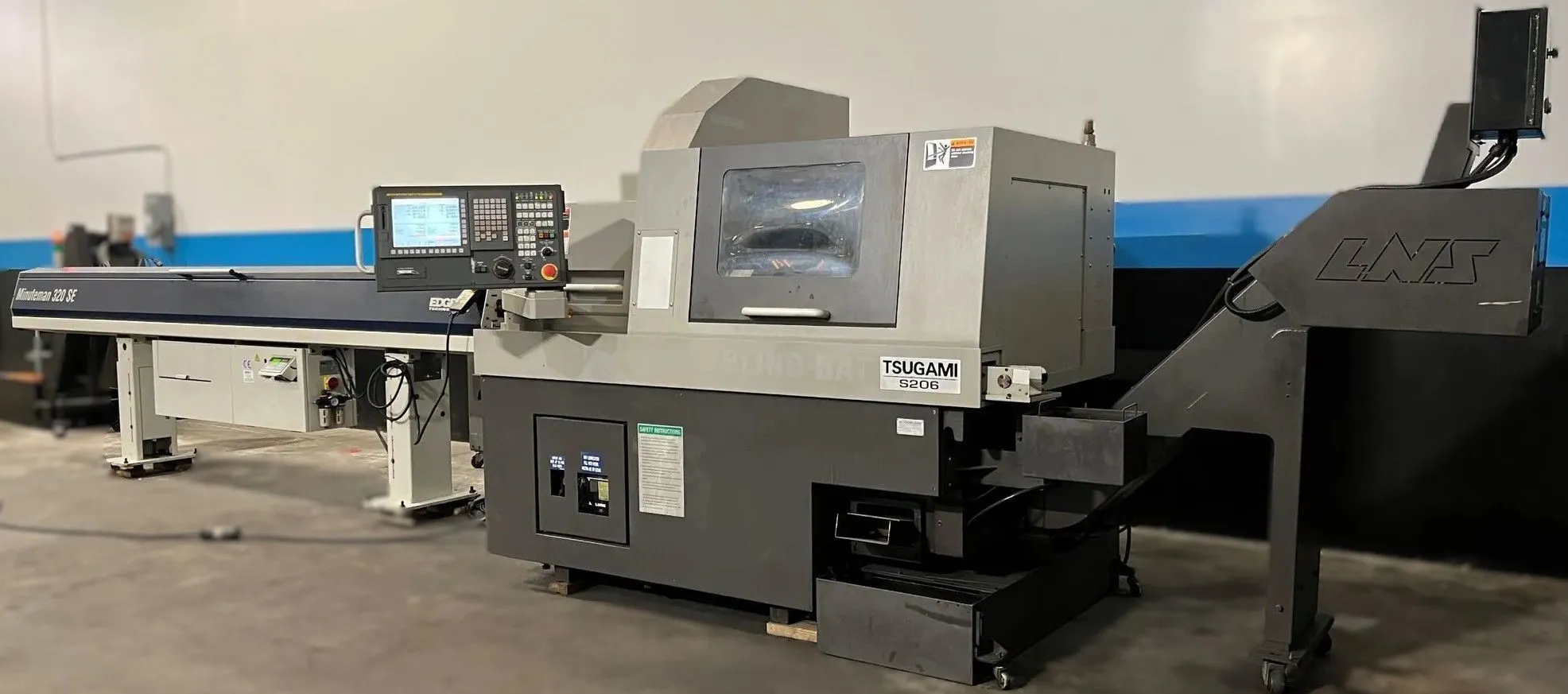

USED 2014 TSUGAMI S206

Tsugami S206 CNC Swiss Lathe, New in 2014.
Comes with Edge Minuteman 320 SE Bar Feeder
Back Spindle
Part Catcher
Part Conveyor
Coolant Tank
Chip Conveyor
Books and Manuals

General Specifications:
Features:
Fanuc 32i-MB CNC Control
11,368 Hours Cutting Time
Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System

Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 9.843″ (250 mm)
Max Turning Length with Gripping Unit: 8.26″ (210mm)
Max Bar Capacity: 0.79″ (20 mm)
Max Tool Positions: 25
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M8
Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max. Back Spindle Tapping Diameter: M6
Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
Max. Tool Spindle Drilling Diameter: 0.314″ (8 mm)
Max. Back Tapping Diameter: M5

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 10000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 12000 RPM
Back Spindle Motor: 2.2 kw

Standard Tools:
Cross Turn Stations: 8
Cross Drill Stations: 3
Main/Sub Drill Stations: 5
Sub Drilling Stations: 4

Power Driven Tools Attachment:
Live Cross Mill Stations: 2
Live Sub Milling Stations: 4
Driven Tool Speed: 8000 RPM
Driven Tool Motor:.75 kw (Front Tool Post) 1 kw (Rear Tool Post)

General:
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 12.1 kva
Overall Dimensions: 83.07″ X 47.24″ X 74.21″ High without Bar Feeder
Weight: 7275 lbs. Approx.

Comes with Edge Minuteman 320 SE Bar Feeder
Back Spindle
Part Catcher
Part Conveyor
Coolant Tank
Chip Conveyor
Books and Manuals
