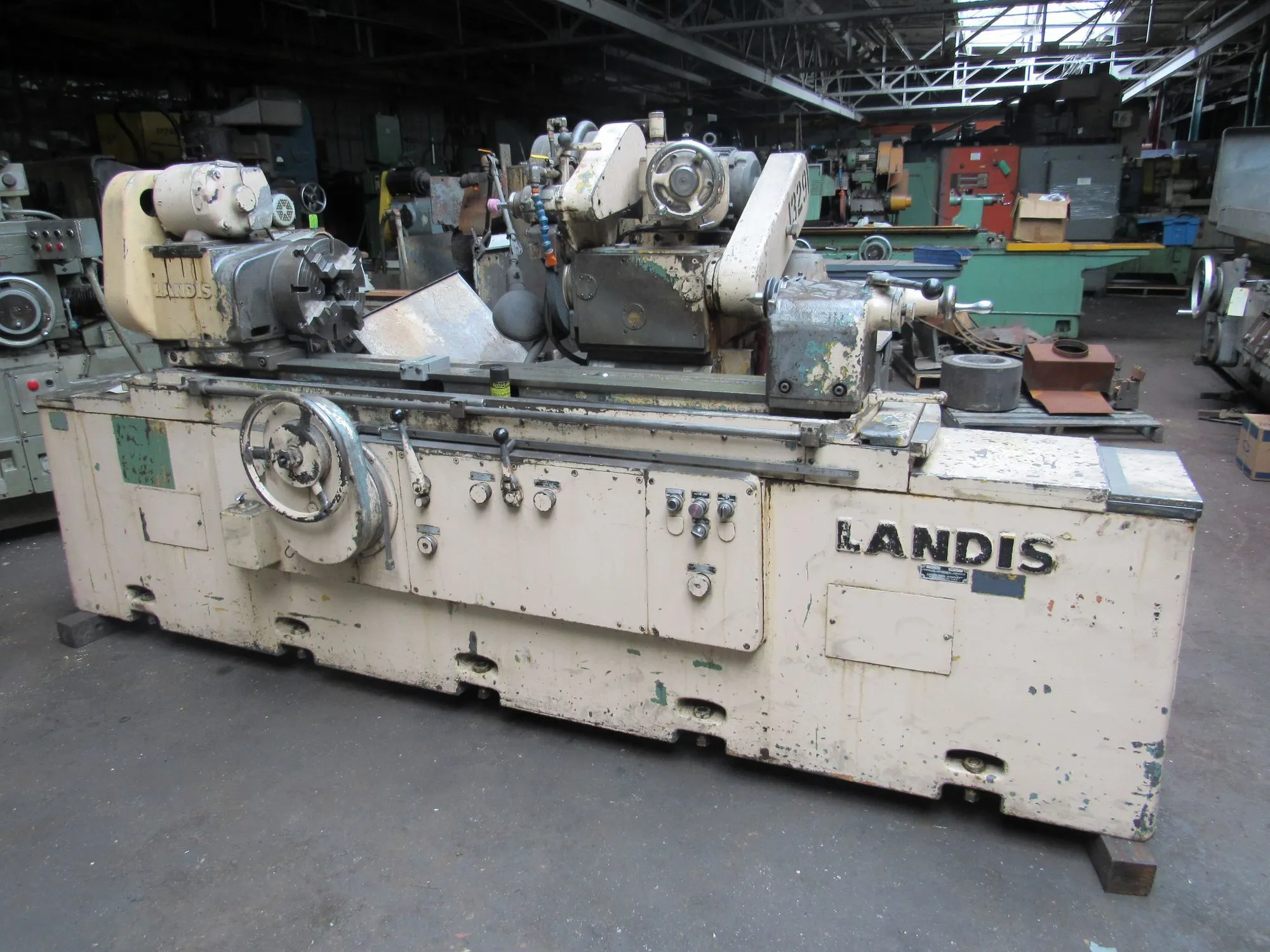

USED 1975 LANDIS 14X48 3R
Overview
Description
LANDIS 14X48 3R Universal Cylindrical Grinder from 1975. Swing 14.98", center 48", power 5 HP, workhead power 0.75 HP, speed 25-500 RPM, grinding wheel dia. 14". Used condition. Perfect for versatile grinding needs.
Specifications
| Swing | 14.98" | 380.49 mm |
|---|---|---|
| Centers | 48" | 1,219.2 mm |
| Power | 5 hp | 3.7 kW |
| Workhead Power | 0.8 hp | 0.6 kW |
| Workhead Speed | 0 RPM | 0 RPM |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Weight | 10750 lbs | 10750 lbs |
14" x 48" 3R LANDIS UNIVERSAL CYLINDRICAL GRINDER
S/N 840-7 Year: 1975
STANDARD CATALOG SPECIFICATIONS
Maximum work swing............................. 14 31/32"
Traverse speed - inches per minute............. 2 - 240
Grinding wheel size - standard................. 14" x 2" x 5"
Grinding wheel head swivel range............... 180 degrees
Grinding wheel spindle speeds.................. 1720 - 2185 RPM
Automatic infeed at table reversal
on diameter - Basic machines................... 0.0003" - 0.004"
Work diameter reduction per revolution
of hand wheel.................................. 0.100"
Internal spindle speed......................... 15,000 RPM
Head stock work center......................... #14 Jarno
Foot stock work center......................... #10 Jarno
Work speeds - infinitely variable.............. 25 to 500 RPM
Hole through headstock spindle................. 1 7/16"
Head stock swivel range........................ 120 degrees
Head stock spindle nose........................ 6A-2
Swivel table graduated......................... 3 1/2" per ft.
(Degrees included angle)....................... 23 degrees
Weight......................................... 10,750 lbs.
MOTOR SPECIFICATIONS
5 HP Wheel drive motor.
1745 RPM, 220/440 3 Phase, 60 Cycle.
3/4 HP Work drive motor.
2 HP Hydraulic pump and main drive motor.
1/4 HP Coolant pump motor.
1/4 HP Wheel spindle lubrication pump motor.
EQUIPPED WITH
Landis programmable micronic feed.
Swing down internal grinding attachment.
Left and right hand tarry.
Traverse feed rates.
Lever operated tail stock.
Tail stock truing device.
Variable speed D.C. work head motor.
1 Shot Bijur lube.
Coolant in base.
Specifications are deemed accurate, however, subject to verification or prior sale.
