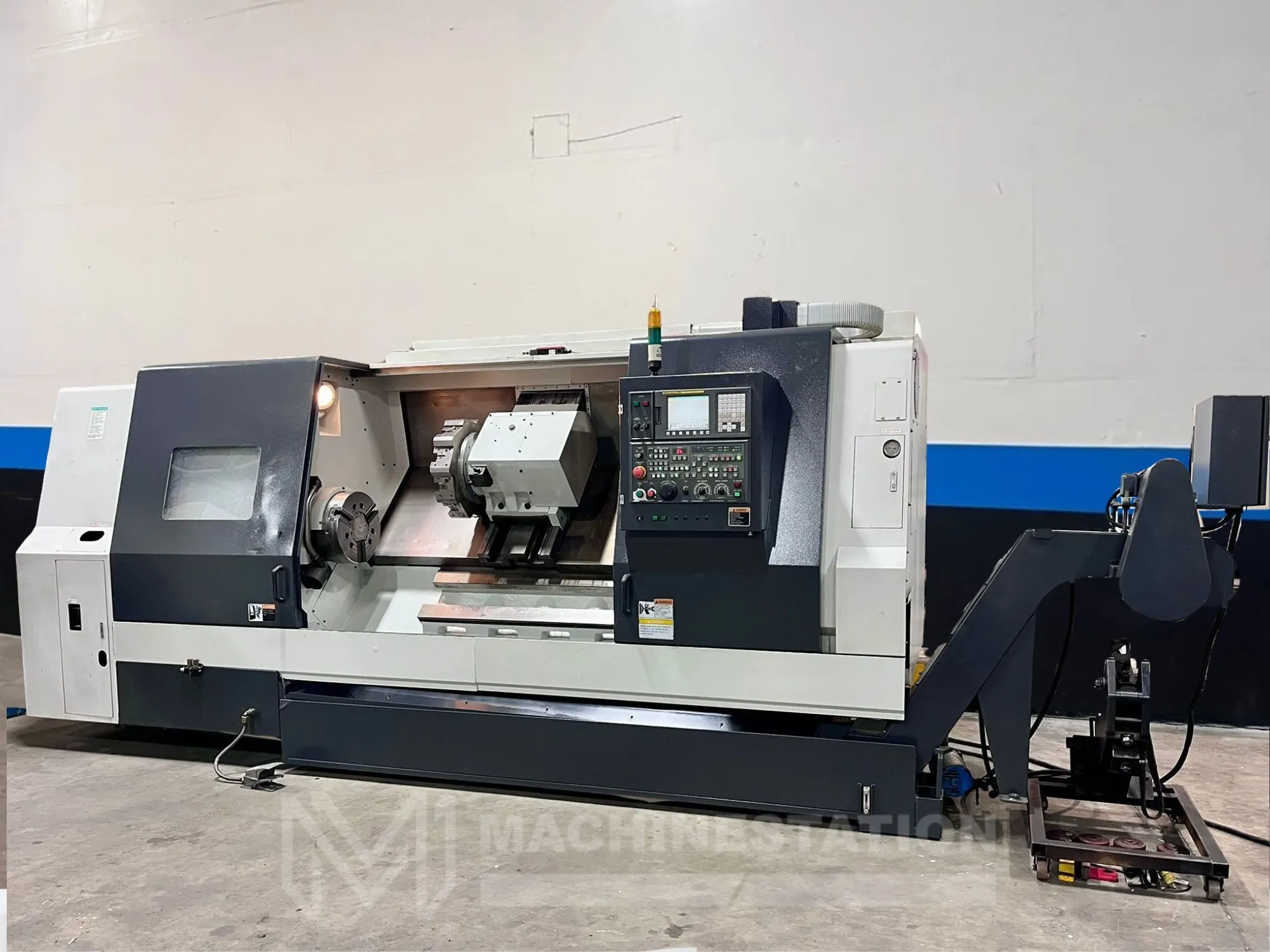

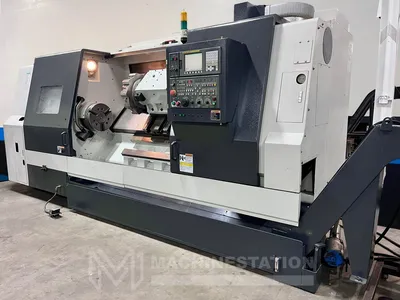

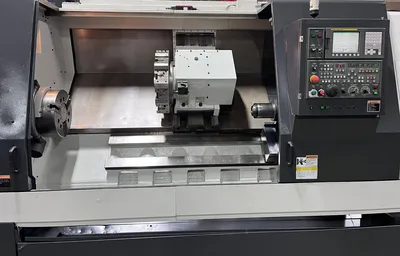

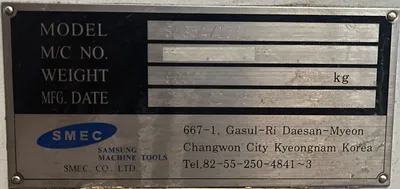

USED 2009 SAMSUNG SL-35A/1500
Overview
Specifications
| Swing | 23.62" | 599.95 mm |
|---|---|---|
| Machining Length | 60.2" | 1,529.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.63" | 117.6 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 16.5" | 419.1 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 0i-TC) | CNC (Fanuc 0i-TC) |
| Dimensions | 197″ x 73″ x 80″ High Approx. | 197″ x 73″ x 80″ High Approx. |
| Weight | 19800 lbs. Approx. | 19800 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

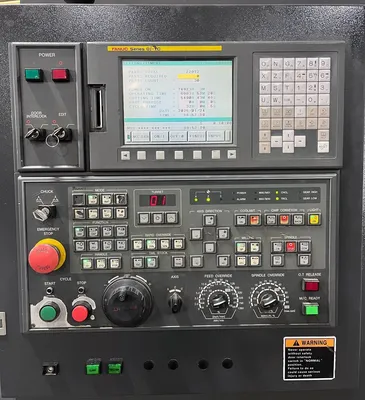

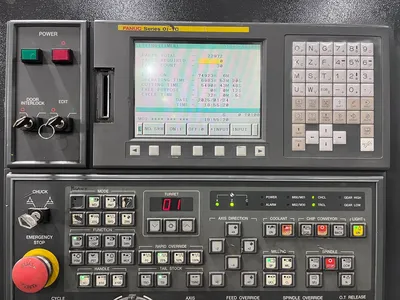

Fanuc 0i-TC CNC Control

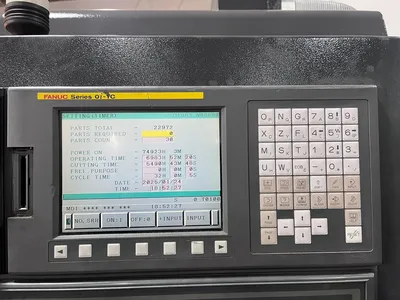

5,490 Hours Cutting Time

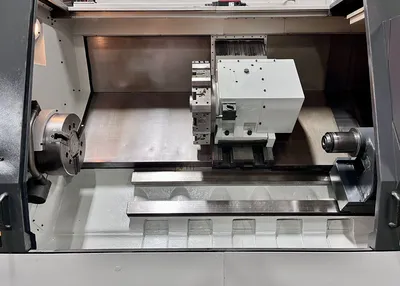

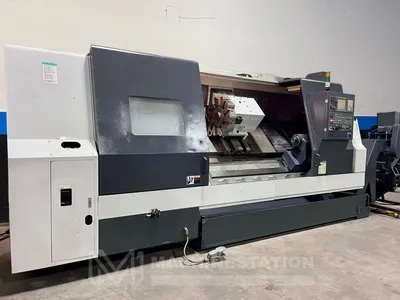

Long Bed Box Way Machine

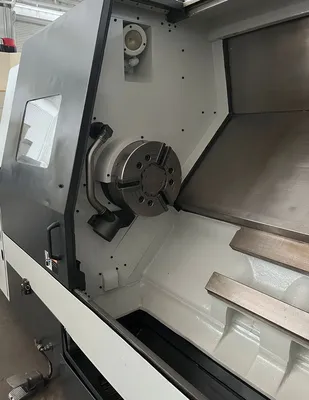

15″ 3-Jaw Hydraulic Chuck
30 HP High Torque Spindle

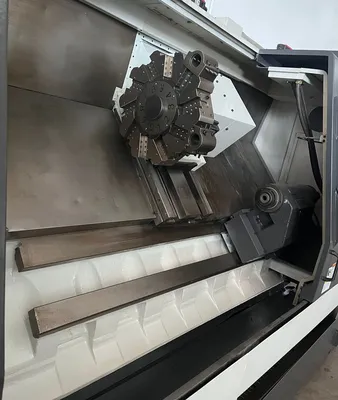

10 Station Automatic Turret
PCMCIA Card Interface
Coolant System
Capacity:
Max Turning Diameter: 16.5″
Max Turning Length: 60.2″
Max Bar Capacity: 4.63″
Swing Over Bed: 23.62″
Travel:
X Axis Travel: 9.47″
Z Axis Travel: 63.19″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.20″
Spindle Speed: 2000 RPM
Spindle Motor: 30 HP

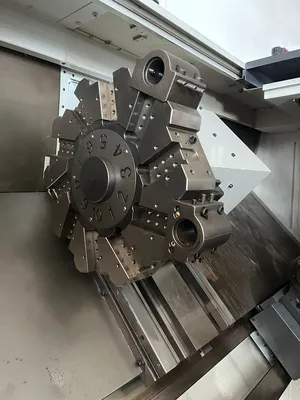

Turret:
Capacity: 10 Station Turret
Turret Index Time: 0.15 Second
Tool Holders Type: BMT
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Dia.: 5.12″
Tailstock Quill Travel: 4.70″
General:
Power: 220v / kva / 3-Phase
Overall Dimensions: 197″ x 73″ x 80″ High Approx.
Weight: 19,800 lbs. Approx.
Equipped With
5.20″ Big Bore, A2-11 Spindle

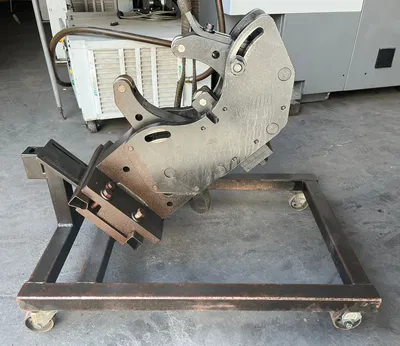

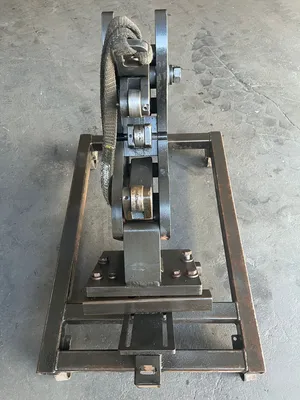

1" - 12" (Min – Max) Diameter Schmidt RIP - 112 Hydraulic Steady Rest
Tool Presetter
Tailstock
Chip conveyor
(2) Boring Tool Holders Mounted on Turret (As shown in the images)
