| Swing | 23.2" | 589.28 mm |
| Machining Length | 50.4" | 1,280.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Turning Dia | 17.8" | 452.12 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc I Series) | CNC (Fanuc I Series) |
| Dimensions | 160 x 75 x 82 | 160 x 75 x 82 |
| Weight | 14500 | 14500 |
Specifications (subject to buyer verification):
Maximum Turning Diameter: 15.74″
Maximum Turning Length: 50.39″
Distance Between Centers: 60”
Swing Over Bed: 22.44″
Swing Over Saddle: 14.56″
X Axis Travel: 11.10″
Z Axis Travel: 52.36″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 3 1/8”
Spindle Speed: 2800 RPM
Spindle Motor: 35 HP

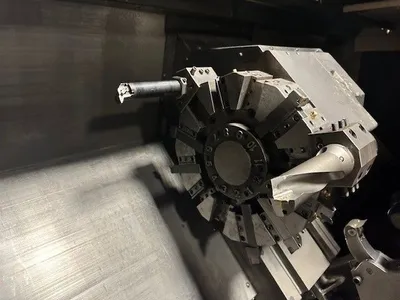

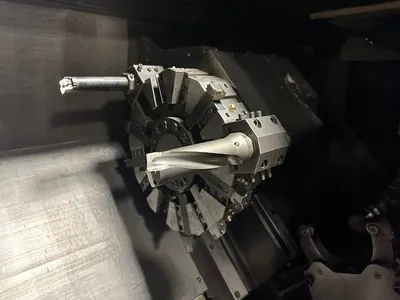

Turret Capacity: 12 Stations
Tailstock Taper: MT-4
Power: 200V – 220V / 3-Phase / 45.14 KVA / 50/60 HZ
Overall Dimensions: 160″ x 75″ x 82″ High Approx.
Weight: 14,500 lbs Approx.
Equipped With (subject to buyer verification):

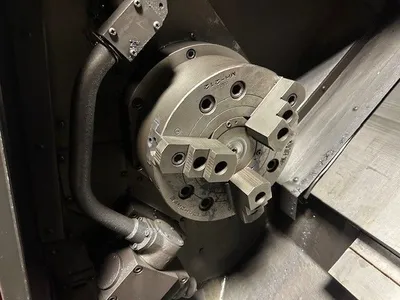

12″ 3-Jaw Hydraulic Chuck

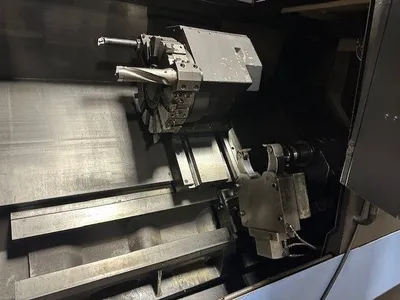

Tailstock
Tool Presetter
Coolant System

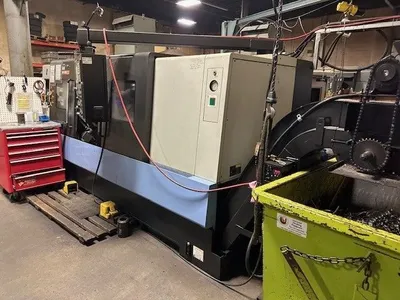

Chip Conveyor

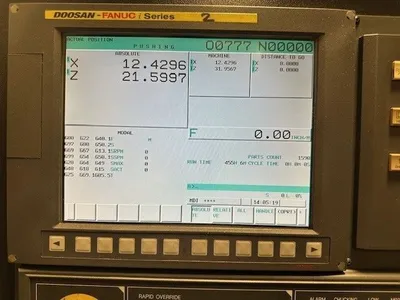

Control Fanuc i Series
Foot Switch
