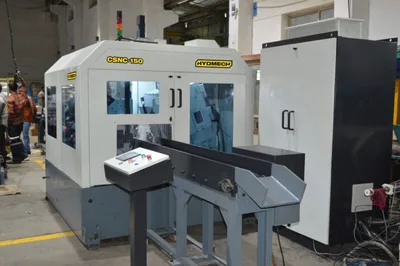

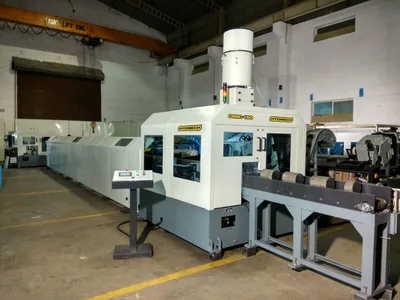

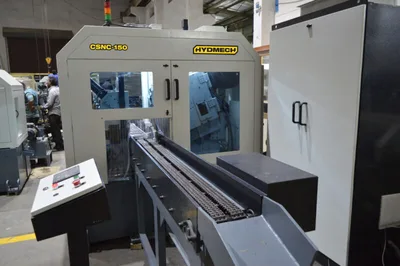

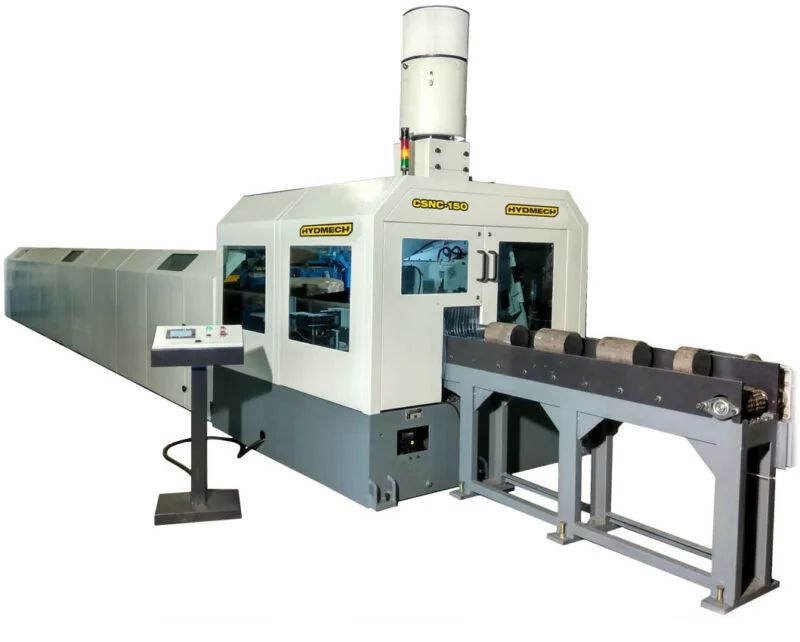

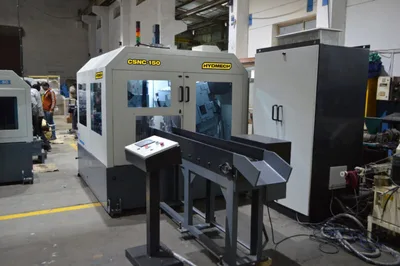

High Speed, Automatic Circular Sawing Machine
Cutting Capacity Round 90°: 1.18″- 6″
Cutting Capacity Square 90°: 1.18″- 5.11″
Blade Drive: 40 HP VFD
Blade Speed: 60-200 MPM
Blade Size: Carbide/ Cermet tipped: 460 mm x 2.7 mm kerf
Bar Stock Length: 10′-20′
Trim Cut: Zero or programmable from 0.8″ or longer
Cut off Length: Min 0.8″ up to 39″
Single Stroke: 39″
Remnant Length: 3.94” + cut length + cutter thickness
Hydraulic Motor: 3 HP VFD
Bar Loading Magazine: Inclined storage width of 35″ for rounds
Machine Capacity: 16,530 lbs.
Machine Weight: 11,000 lbs.
Dimensions (w x l x h): 145” x 102” x 82”
