Get the Close-cut Off, Length Tolerance, Squareness, and Finish of Cut That Your Customers Demand.
Cutting Capacity Round 90°: 1″- 4″
Cutting Capacity Square 90°: 1″- 3.15″
Blade Drive: 20 HP VFD
Blade Speed: 50-180 MPM
Blade Size: Carbide/ Cermet tipped: 360 mm x 2.6 mm kerf
Bar Stock Length: 10′-20′
Trim Cut: Zero or programmable from 0.4′ or longer
Cut off Length: Min 0.4” up to 39”
Single Stroke: 39″
Remnant Length: 3.94”/100 mm + cut length +cutter thickness
Hydraulic Motor: 3 HP VFD

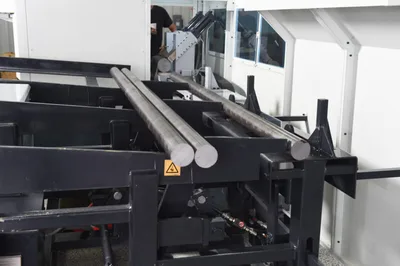

Bar Loading Magazine: Inclined storage width of 42″ for rounds
