90 Degree Cuts Suitable for Ferrous and Non-Ferrous Materials
Cutting Capacity Round 90°: 1″- 5″
Cutting Capacity Square 90°: 1″- 3.54″
Blade Drive: 25 HP VFD
Blade Speed: 50-180 MPM

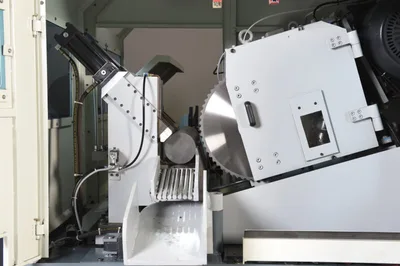

Blade Size: Carbide/ Cermet tipped: 460mm x 2.7 mm kerf
Bar Stock Length: 10′-20′
Trim Cut: Zero or programmable from 0.4′ or longer
Cut off Length: Min 0.4” up to 39”
Single Stroke: 39″
Remnant Length: 3.94” / 100 mm + cut length + cutter thickness
Hydraulic Motor: 3 HP VFD

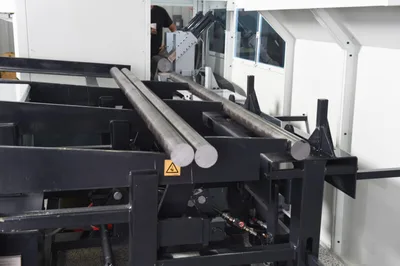

Bar Loading Magazine: Inclined storage width of 42″ for rounds
Machine Capacity: 13,277 lbs.
Machine Weight: 9,920 lbs.
Dimensions (w x l x h): 110” x 100” x 80”
