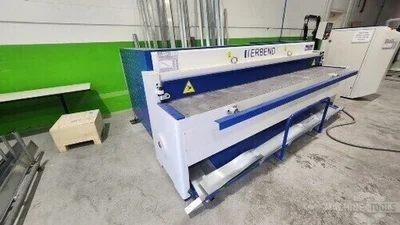

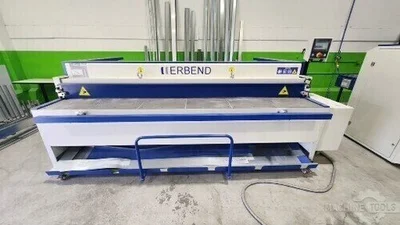

Brand – ERBEND Model – EMS 3220 Type – Foot Power Shears Year – 2024 Condition – Used – Excellent
Max Thickness: 0.0747″
Max Thickness (gauge): 14 gauge
Length of Blade: 10.5″
Dimensions: 1950 X 3750 X 1600
Weight: 4,431 lbs
Control: CNC (NC)
Cutting Length 3200 Mm / 10.5’ Cut Per Minute 35 Motor Power 4 Kw Mild Steel 2 (14G) Mm Stainless 1.2 (18G) Mm Aluminium 3 Mm Dimensions (W x L x H) 1950 x 3750 x 1600 Mm Dimensions (W x L x H) 77” x 147” x 63” Weight 2010 Kg / 4,431 Lbs

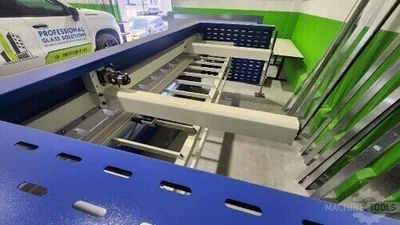

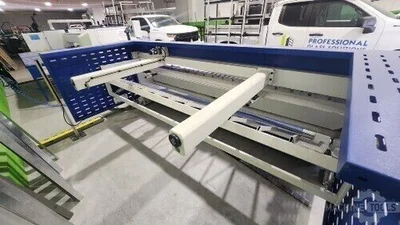

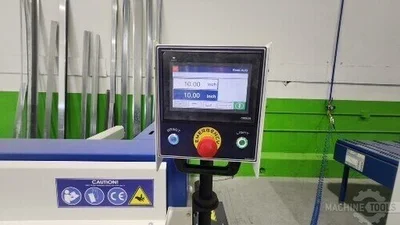

1000 Mm Servo Motorized Back Gauge System Touch-Screen Nc Control System Friction Free Guillotine Blade Geometry And Dual Sided Blades Spring Loaded Hold-Down Bar And Polyurethane Material Clamping Surface Fixed Side Squaring Gauge And Stainless Feeding Table With Rulers On Each 500 Mm Length Retractable Front Sheet Support Bar Led Illumination Of Cutting Area And Cutting Line Pneumatic Sheet Support To Process Rear Drop Or Front Drop S Blank Sheet Wagon With Wheels (1000 Kg Loading Capacity) Side Gauge Extension To 2 Mt / 3 Mt Variable Angular Cutting Support Cutting Line Laser Sight
