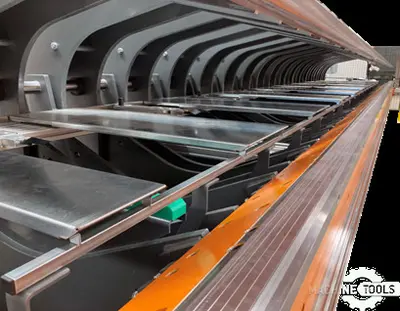

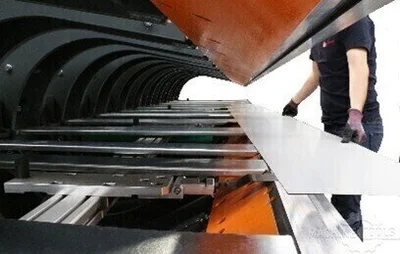

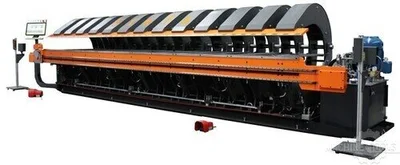

Brand – STEFA Model – VHB620 Type – Folding Machines New – In Stock
Max Thickness: 0.0787″
Max Thickness (gauge): 14 gauge
Overall Length: 19.69′
Dimensions: 28′ x 5.9′ x 5.4′
Weight: 19,800 lbs
Model VHB620 Max. thickness admissible 2 mm St40 – 2.6 mm Alu – 1.25 mm Inox Working length 6400mm No. Arms 11 arms Max. cut capacity 3 mm St40 Backgauge range (max – min) 1250mm <-> 5mm (49in to 0,2in) Servomotor backgauge tolerance -0,01 / + 0,02 mm No. backstops 6 Servomotor backgauge speed 250mm/s Opening height clamping beam 260mm Max. rotation of bending beam 145º Bending tolerance +/- 1º Hydraulic power 7.5 kW Weight 19,800 lbs Colors RAL2008 / RAL7043 (Light orange, dark grey)

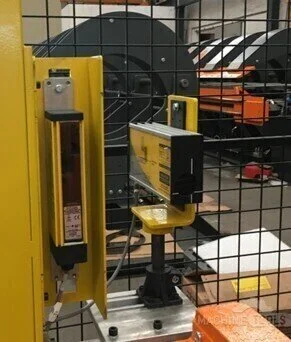

Declined clamping beam (deeper J channel and rectangular bends) Alligator 2D Controller Conical Backgauge Laser safety Thickness Sensing Material sensing 49″ backgauge Moveable support table Machined Geometry (for tight bends) Extra backgauge finger Pressure sensing Remote Access Auto radius sensing Servo Driven Backgauge Hydraulic slitter/shear
