Brand – ERBEND Model – MFA4225 Type – Folding Machines Year – 2021 Condition – Used – Excellent
Max Thickness: 0.0984″
Max Thickness (gauge): 12 gauge
Overall Length: 13.78′
Dimensions: 86.6” x 222.4” x 94.5”
Weight: 20,175
Make Erbend Model MFA4225 Year of MFG 2020 Working Length 4200mm (13.75’) Capacity 12g Upper Beam Stroke 135mm Folding beam type Combi Backgauge Depth U Shape Closed Hem Capacity 20g Electrics 3 phase Opening height (without tools) 250 mm Motor Power (Servo) 2 X 3,5 kW Transmission system Ballscrew spindle Clamping speed 65 mm Combi beam rotation (180°) time 10 sec Folding Beam (Y axis) Folding angle 0 – 150° Motor Power (Sew Eurodrive AC) 2 X 4 kW Folding Speed 70°/sec Folding Beam Height Adjustment ( A1-A2 axis) Adjustment height 0 to 80 mm Control Manual Back gauge system ( X axis) Movement speed 300 mm /sec Motor Power (Servo) 750 W Positioning / repeatability accuracy +/- 0,1 mm

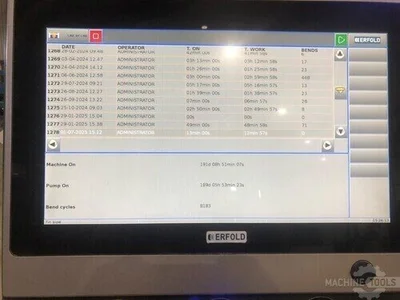

Heavy duty fingers with machined bottom beam finger pockets ERFOLD Advanced 3D CNC Graphical Control Pneumatic Quick Clamp Tool system U shaped Backgauge table 120mm segmented goats foot tools
