Brand – MACBEND Model – MFB3220 Type – Folding Machines Year – 2019 Condition – Used – Excellent
Max Thickness: 0.0787″
Max Thickness (gauge): 14 gauge
Overall Length: 10.5′
Dimensions: 86.6” x 177” x 75”
Weight: 10,500 lbs

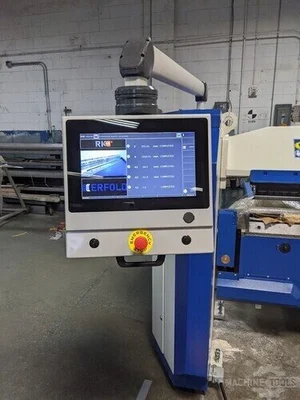

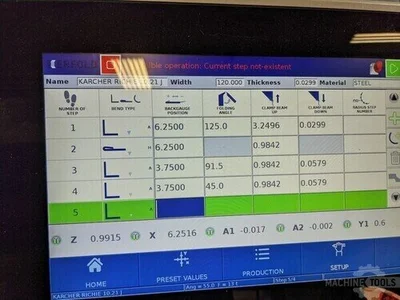

Max Foldable Sheet Length: 10.49 Ft (3220 Mm) Max Thickness Capacity In Full Length: 0.078” (14G) Steel Clamping Beam (Z Axis) Opening Height (No Tools): 6.3 In (160.02 Mm) Clamping Speed: 2.36 In/Sec Folding Beam (Y Axis) Folding Angle: 0–150° Speed: 65°/Sec Folding Beam Adjustment (A Axis) Adjustment Height: 3.1 In (80 Mm) Adjustment: Motorized 1M Back Gauge System (X Axis) Speed: 9.8 In/Sec Min/Max Gauging: 0.078” / 39.37” (2 Mm / 1000 Mm) Rotation Of The Clamping Beam (C Axis) Rotational Speed: 20°/Sec Crowning: Manual Erfold Advanced CNC Graphic Software On 15.6” Touch Screen Control
