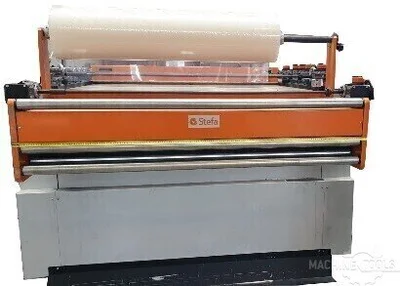

Brand – STEFA Model – LCS3 Type – Cut To Length Lines New – In Stock
Max Width: 3.1102″
Max Thickness (gauge): 11 gauge
Max Thickness: 0.1181″

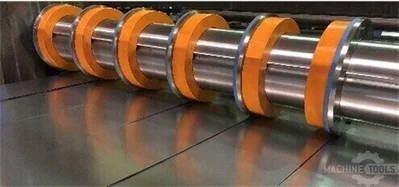

Model LCS3 Maximum thickness allowance Up to 3 mm (TS 45kg/mm²) Maximum Width of Steel Sheet 1550 mm Number of set rolls of straightener 9 Diameter rolls straightener 138mm Number of Slitting Knives 3 Diameter knives slitting 295 mm Speed Production up to 15m/min Equipment power 11kW (~V400 3ph+ N) Total Line power 15kW Tolerance on cut length +/- 1mm Tolerance on slitting cut +/- 0,5mm Tolerance on cross section +/- 0,2mm

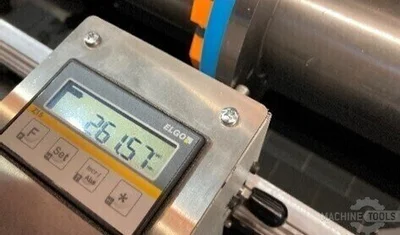

9 rolls for straightening 3 Sets of knives (additional knives available) Shear Digital Ruler Radio Control Available options… Entry table Plasticizer unit model LC2 and LC3 Strip Recoiler (scrap) Discharge Table 3m Discharge Table 6m Radio Control (entire line) High Speed Option (50m per minute)
