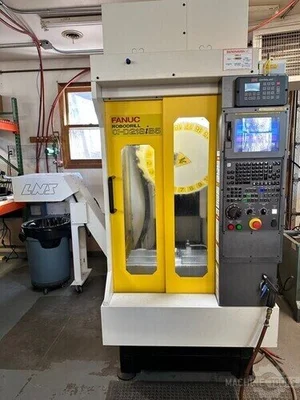

Brand – FANUC Model – ROBODRILL AD21SIB5 Type – Vertical Machining Centers
X: 11.81″
Y: 11.81″
Z: 12.99″
RPM: 10,000 RPM
# ATC: 21
Table-W: 24.8″
Table-L: 12.99″
Taper: BT30
# Axis: 5
Weight: 4500 lbs
Control: CNC (Fanuc)
Travel X/Y/Z: 11.81″ x 11.81″ (+3.94″) x 12.99″ Max. Tool Length: 7.48″ Max. Tool Diameter: HS 3.15″/3.94″ Table Size: 24.80″ x 12.99″ Max. Table Load: 440.92lbs Max. tool weight: 6.61lbs Distance from Spindle Nose to Table: 9.8″- 22.8″ Spindle speed rpm: 10,000 Spindle Load: 80Nm/14.2kW Spindle load 10,000 rpm (continuous operation): 13.6Nm/4kW Rapid Traverse Rates All Axes: 54 ipm Programmable cutting feed in/min: 30,000 Axial Feed Acceleration X, Y, Z: 1.6/1.2/1.6 Number of Tools: 21 Tool Change Time C-to-C: 1.6 seconds Spindle Taper: BT30 Air pressure consumption: 150 L/min 0.35–0.55 Mpa Machine Weight: 4409.25lbs

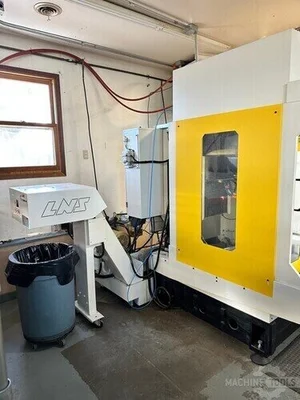

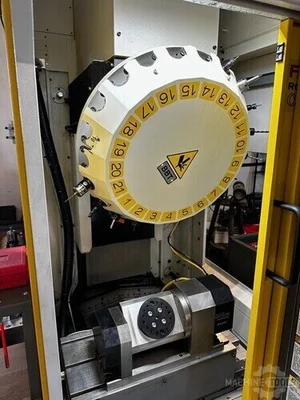

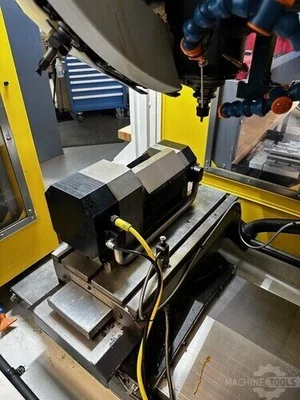

LNS Chip Conveyor KME TR-100-S 5-Axis Trunnion KME Control Package KME Quick Receiver Faceplates Blum Pico Probe Renishaw Probe Tsunami Breathing Air Panel Mounting System Air Turbine 65000 RPM High Speed Spindle Option
