USED HSG HSG-G3015H V2.0-STORE PRO3015

Brand – HSG Model – HSG-G3015H V2.0-STORE PRO3015 10 SHELF Type – Laser Cutters New – In Stock

Sheet-W: 61.024″
Sheet-L: 122.05″
Wattage: 12000 w
IPM: 7874 ipm
X: 5′
Y: 10′

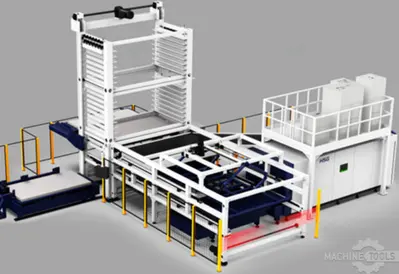

3015 single tower with total height of 7.1m / 23.7’ (incl. 6.4m steel structure height with total 15 layers) for both raw materials w/o wooden pallet (12 layers) and finished goods (3 layers) 12 for raw materials w/o wooden pallet (90mm (3.54”)) / 3 for finished goods (310mm (12.2”) incl. wooden pallet height) Each Pallet loading Weight: 3300kg (6,613lbs) Max Stacking Height per Each Pallet: 90 w/o wooden pallet / 310 incl. wooden pallet height (3.54 / 12.2) Total Tower Height 7,100 (23.7″)* Allowable Thickness Range: 0.8-16 (0.03-0.63) Min. Size of Raw Material :1,000 x 1,000 (3.28 x 3.28) Max. Size of Raw Material: 3,048 x 1,524 (10 x 5) Max. Loading and Unloading Weight : 600kg (1,322lbs) Weighting device WMS Unpacking station Synchronous loading and unloading Thin sheet separation package (0.8-3mm / 0.03-0.12’’), incl. double sheet detection, gas blower and peeling device Max 600kg / 1,322 Ibs Safety device for the whole automation system Right hand installation

Laser Source (Raycus-12kw) Cutting head (HSG) P10 Control system (AlphaT pro) Machine bed (HSG) Standard Accessories Water chiller Dust collector Transformer & Voltage Stabilizer OD4 laser protection glass Safety light curtains Camera Nesting Software AC room for laser NAC PRO automatic nozzle replacement MES Laser RayBox Single finished sheet sort station
